VUVG-B14-T32H-AZT-F-1T1L
Product Overview

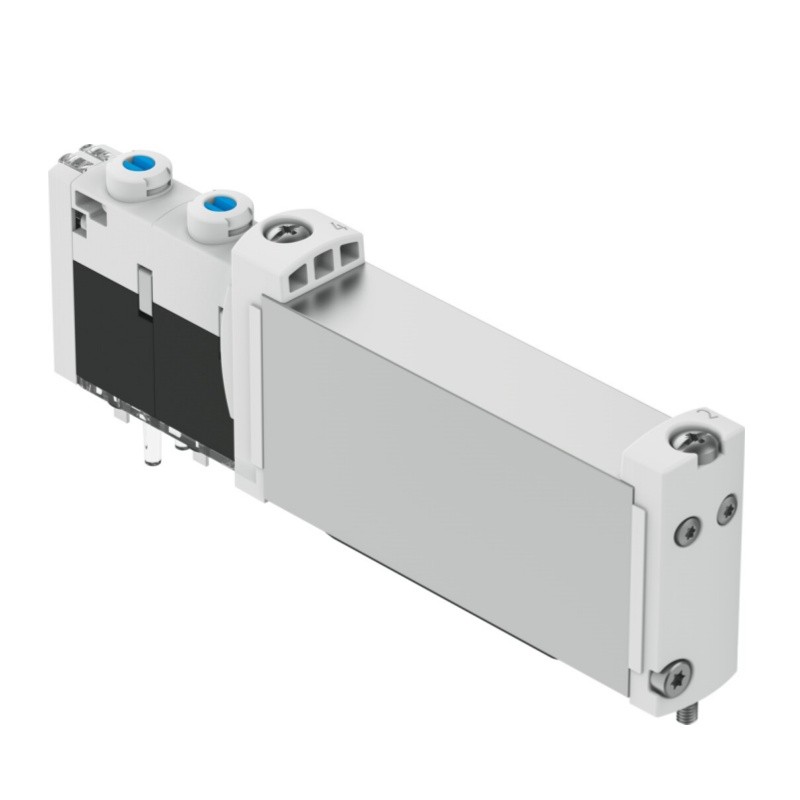

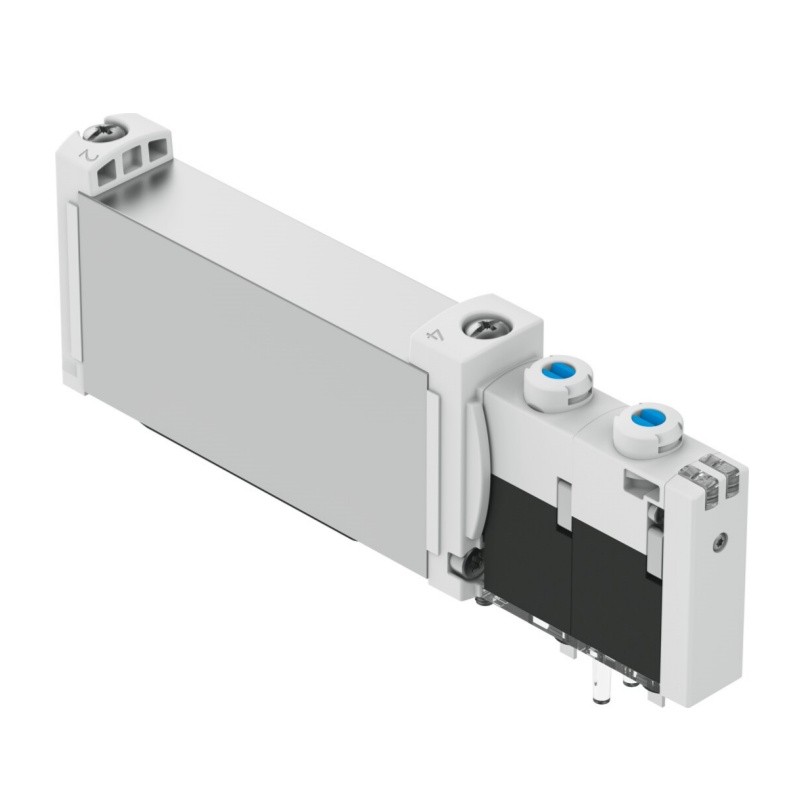

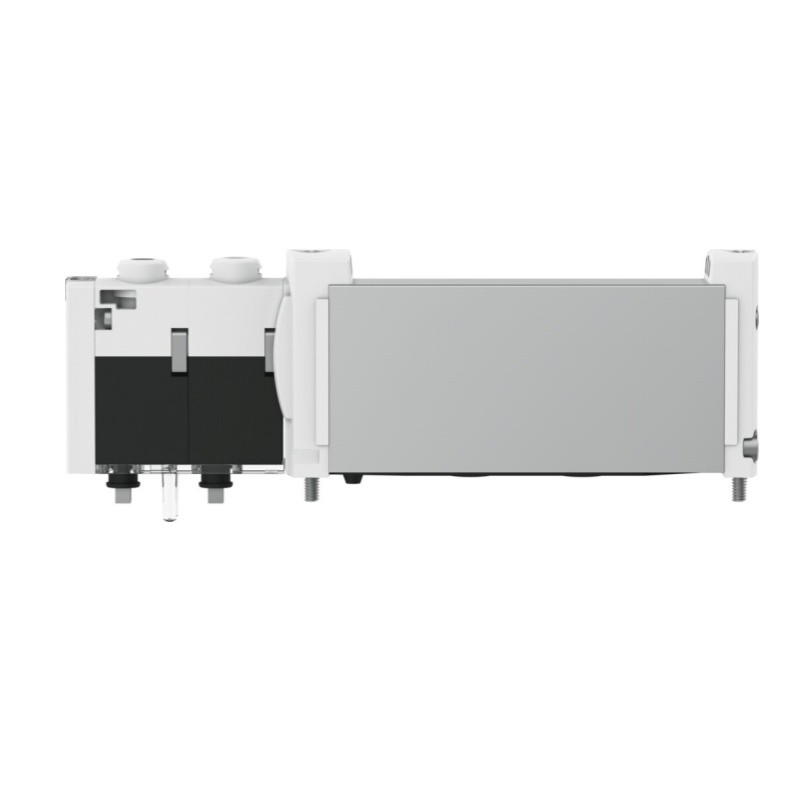

Festo VUVG-B14-T32H-AZT-F-1T1L (Part No.573478) belongs to VUVG high-performance compact solenoid valve series. It is a 2x3/2-way monostable piston slide valve with soft sealing and positive overlap, external pilot air supply. 14mm slim body with flange interface, dedicated for manifold rail assembly to build valve island, suitable for controlling two independent small pneumatic actuators.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VUVG-B14-T32H-AZT-F-1T1L |
| Part Number | 573478 |
| Product Type | Solenoid Valve / Piston slide valve |
| Series | VUVG Series |
| Valve Function | 2x3/2-way, open/closed, monostable |
| Valve Width | 14 mm |
| Nominal Flow | 490 l/min |
| Operating Voltage | 24V DC |
| Coil Power | 1.0 W |
| Operating Pressure | 1.5 ~ 10 bar |
| Pilot Pressure | 1.5 ~ 8 bar |
| Control Type | Pilot operated, external pilot air |
| Reset Type | Pneumatic spring |
| Pneumatic Working Port | Flange connection for valve manifold |
| Sealing Type | Soft seal, positive overlap |
| Manual Override | Detenting & Non-detenting covered |
| Exhaust Function | Exhaust throttling optional |
| Switching Time ON | 10 ms |
| Switching Time OFF | 29 ms |
| Max Switching Frequency | 3 Hz |
| Duty Cycle | 100% |
| Protection Class | IP40 (IP65/IP67 with matching plug socket) |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], lubricated air permitted |
| Ambient Temperature | -5 ~ +50 ℃ |
| Medium Temperature | -5 ~ +50 ℃ |
| Mounting | Manifold rail flange mount, any mounting position |
| Housing Material | Wrought aluminium alloy |
| Seal Material | NBR, HNBR |
| Weight | 102 g |
| CRC Class | CRC 0 |
| LABS(PWIS) | VDMA24364 zone III |
| Certification | cULus Recognized, CE, UKCA |
| RoHS | Compliant |
| Original/New | New Original |
