1076666 IMF18-12NPSNC0S
Product Overview

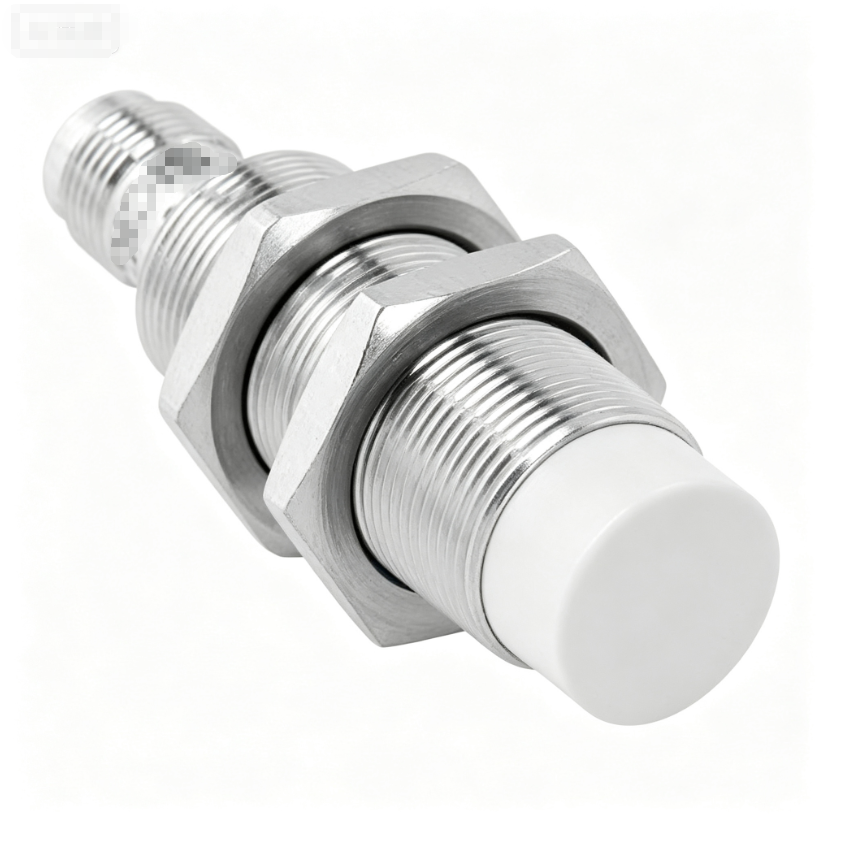

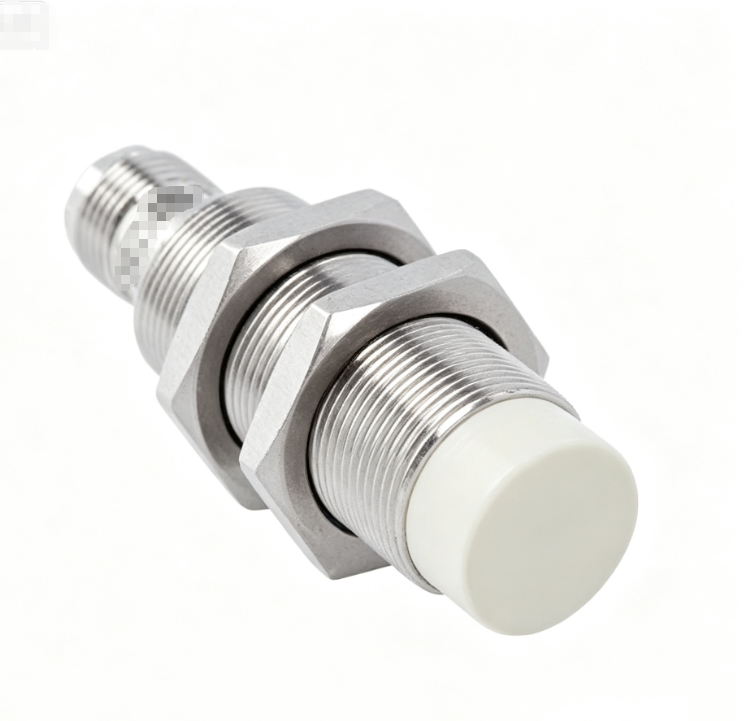

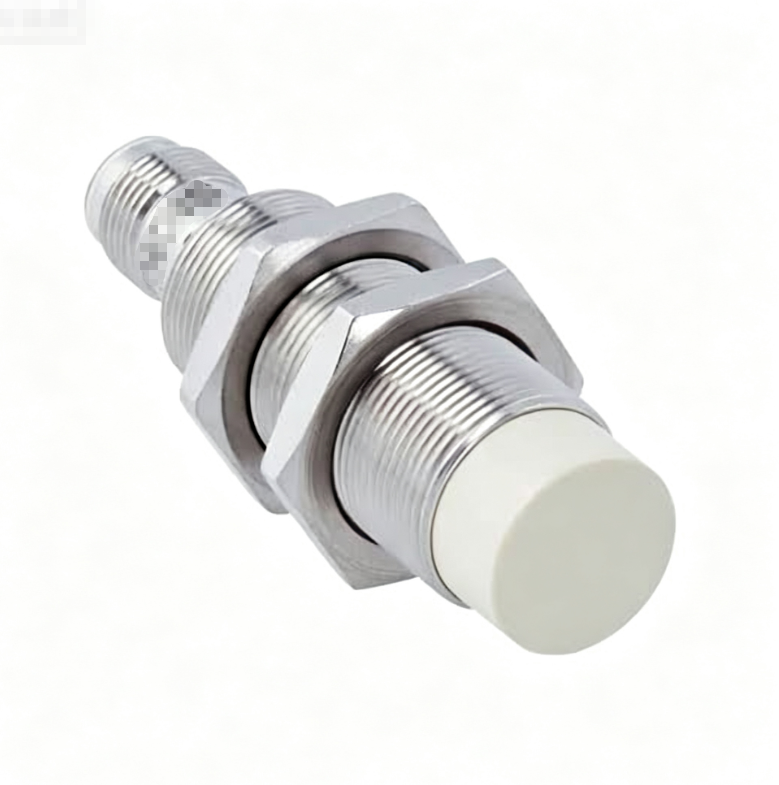

IMF18-12NPSNC0S (Part No.1076666) is a hygienic inductive proximity sensor of SICK IMF18 series. It is non-flush mount type with 12 mm sensing distance. Equipped with PNP normally open 3-wire DC output and IO-Link interface. M18×1 threaded housing made of AISI316L stainless steel, protection class IP68 / IP69K, operating voltage DC10~30V. Designed for washdown and hygienic environments, widely used for metal object detection in food and beverage industry. Brand new original SICK sensor.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | IMF18-12NPSNC0S |
| Part No. | 1076666 |
| Product Type | Inductive Proximity Sensor |
| Series | IMF18 |
| Principle | Inductive metal detection |
| Sensing Distance | 12 mm (Non-flush mounting) |
| Output Type | PNP NO (Normally Open), DC 3-wire |
| Interface | IO-Link |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Thread Size | M18×1 |
| Housing Material | V4A Stainless Steel (AISI316L) |
| Protection Class | IP68, IP69K |
| Switching Frequency | 1000 Hz |
| Connector | M12 4-pin male connector |
| Condition | New Original |
| Application | Food & beverage industry, Hygienic washdown area, metal object detection, packaging machine |
| Weight | 0.08 KG |
| Gross Weight | 0.12 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
