QSL-3/8-8
Product Overview

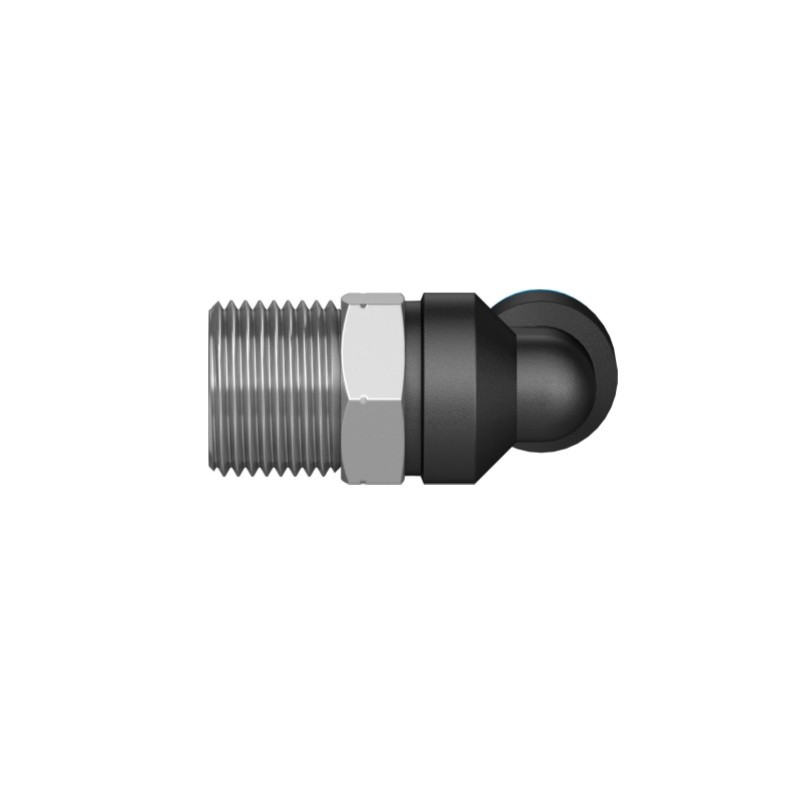

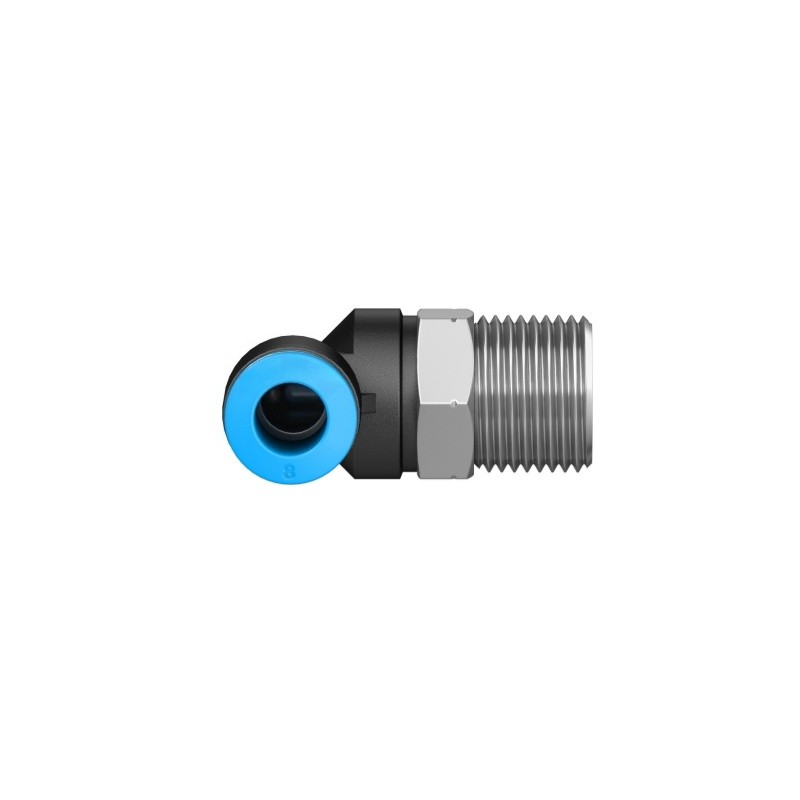

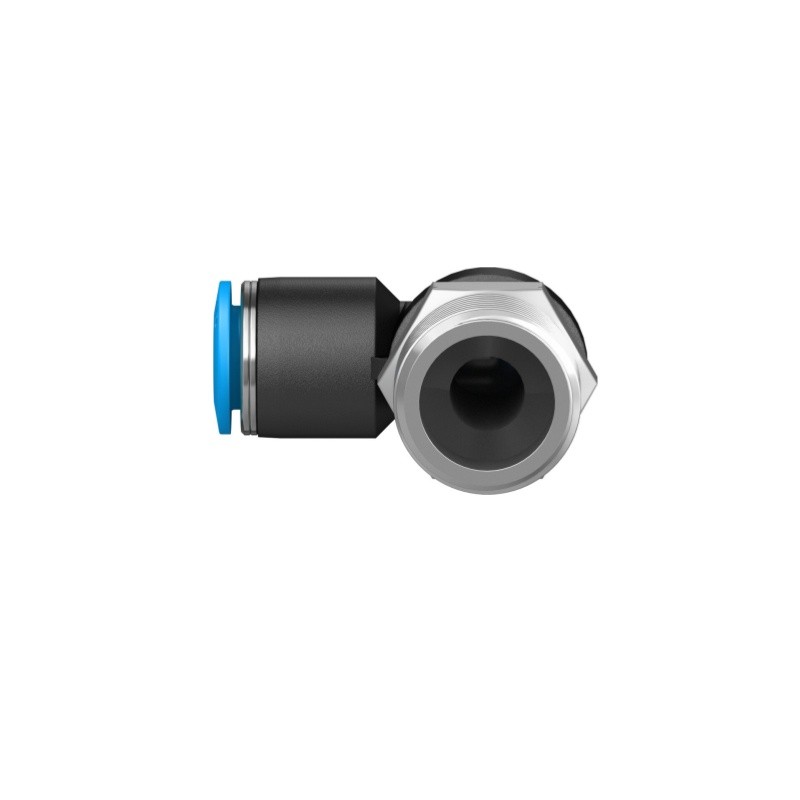

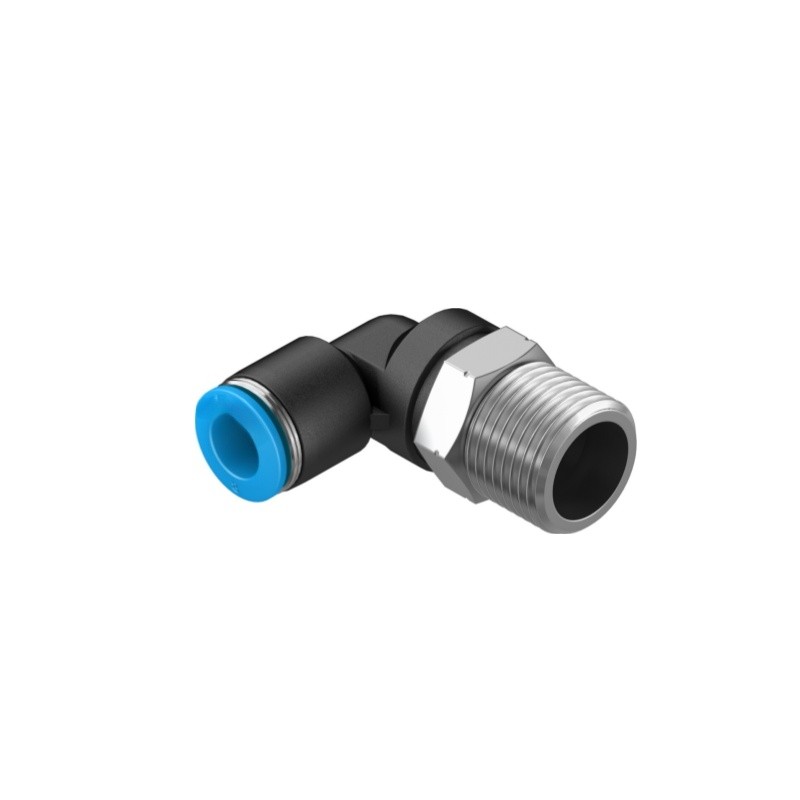

QSL-3/8-8, Part No.153050, is Festo QS series 90° elbow push-in fitting. It adopts push-pull quick connection principle, connects R3/8 male taper thread port with 8mm OD pneumatic tube, realizes 90-degree pipeline turning. Original Festo fitting, reliable sealing, easy tube plug and pull, widely used for direction change in pneumatic circuits of automation equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSL-3/8-8 |
| Part No. | 153050 |
| Type | Elbow push-in fitting, 90 degree |
| Thread | R3/8 male taper thread |
| Tube OD | 8 mm |
| Nominal bore | 6 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Stud:Nickel-plated brass,Release ring:POM,Seal:NBR,Tube retainer:High-alloy stainless steel |
| Weight | 12.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull quick connection, 90° angle for pipeline turn |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
