SLG50S-180FAR11A00 1126862
Product Details

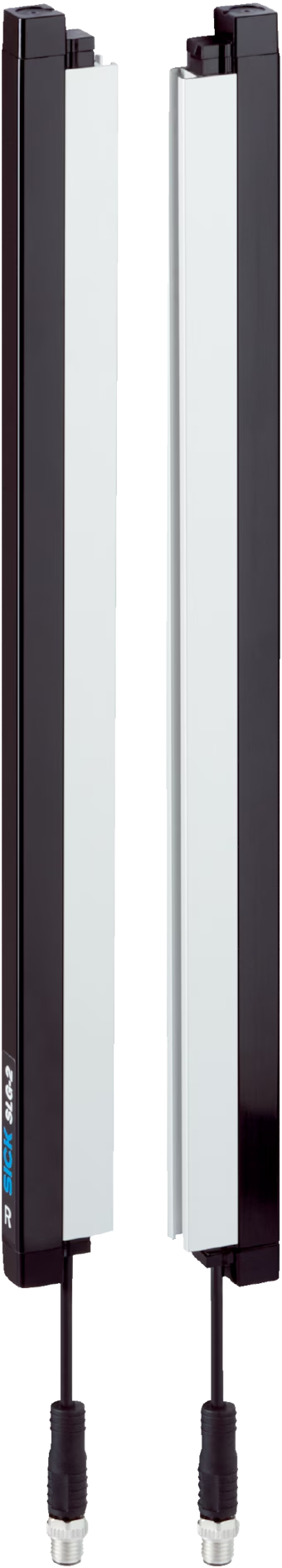

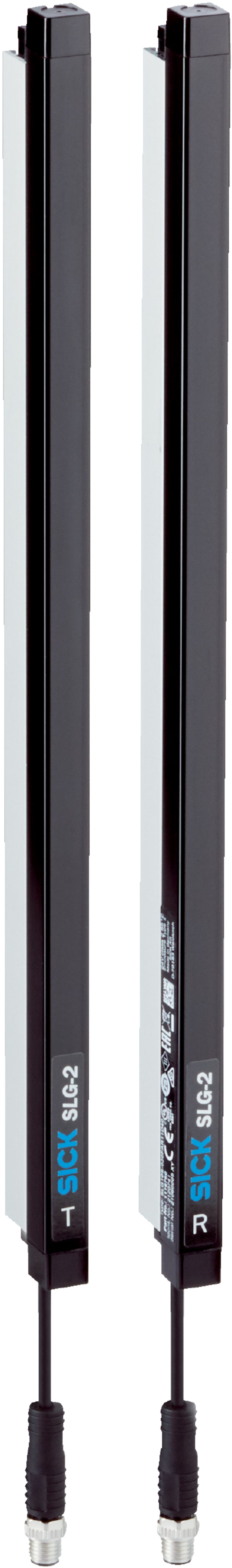

The SICK SLG50S-180FAR11A00 (Order No.1126862) is a brand-new original automation light grid of the SLG-2 series. It applies infrared light source and through-beam detection principle, operating with 18–30 V DC power supply. It comes with PNP/NPN push-pull output and IO-Link COM3 communication function, compatible with a wide range of industrial automation controllers. It has IP65 protection grade to resist dust and moisture, performing stable operation within -30℃ ~ +55℃ ambient temperature.
This light grid adopts lightweight aluminum alloy housing with PMMA lens and uses M8 4-pin male connector for convenient wiring and assembly. Its detection height reaches 1800 mm with 50 mm beam spacing, detection range from 0.44 m to 3.5 m, making it suitable for stable contour measurement and object detection tasks.
This automation light grid is widely deployed for logistics sorting and object detection in packaging machinery and conveyor automated production lines. Each unit undergoes strict pre-shipment quality inspection and holds CE certification. We supply genuine SICK sensors with MOQ of 1 piece and provide stable global shipping services to meet your factory automation demands.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Model | SLG50S-180FAR11A00 |
| Part No. | 1126862 |
| Series | SLG-2 |
| Product Name | Automation Light Grid |
| Beam Spacing | 50 mm |
| Detection Height | 1800 mm |
| Optical Type | Front emission(F) |
| Connection | M8 4-pin cable |
| Interface | IO-Link COM3 |
| Output Type | PNP / NPN |
| Protection Class | IP65,IP67 |
| Operating Voltage | DC 18 V ~ 30 V |
| Housing Material | Aluminum + Plastic |
| Front Window | PMMA |
| Operating Temp | -25℃ ~ +55℃ |
| Storage Temp | -25℃ ~ +70℃ |
| Dimension(W×D×H) | 11.8 mm × 24.1 mm × 1799.2 mm |
| Net Weight | 2.36 kg |
| Gross Weight | 2.65 kg |
| Color | Silver |
| Condition | New Original |
| MOQ | 1 Piece |
| Place of Origin | Germany |
