QSM-M3-4
Product Overview

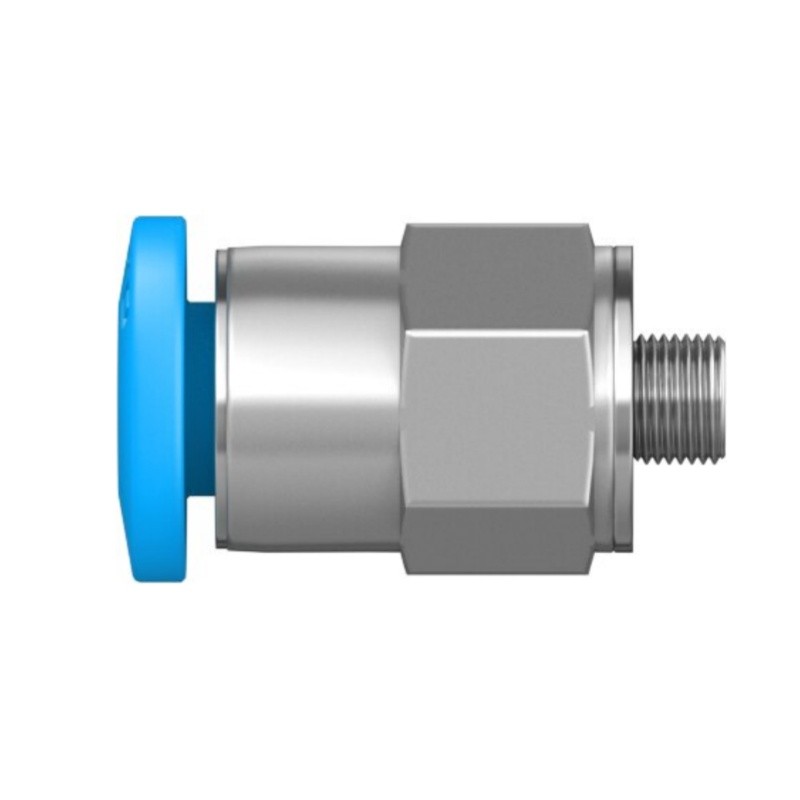

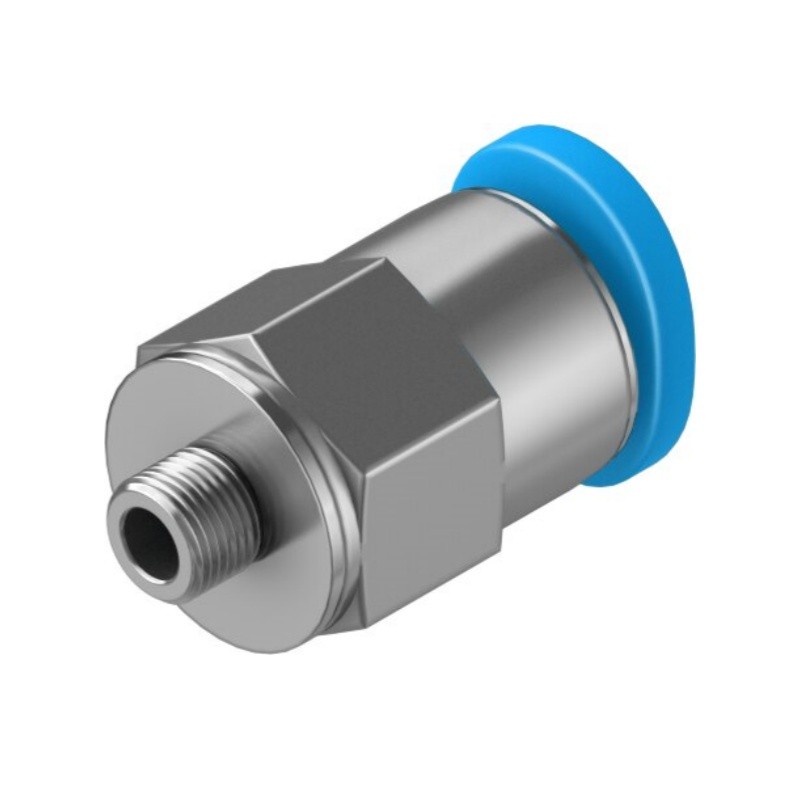

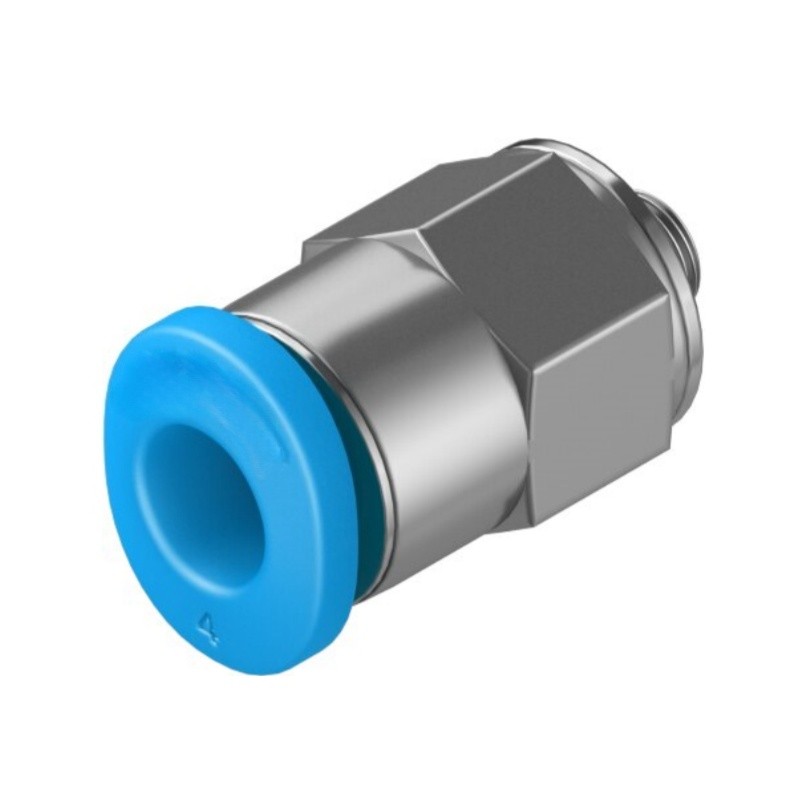

FESTO QSM-M3-4 belongs to QSM mini push-in fitting series, straight male thread quick connector. Port 1 M3 external thread with built-in sealing ring, port 2 for 4mm outer diameter pneumatic tube. Adopts push-pull principle, insert tube directly for connection, press blue release ring to detach tube. Nominal size 1.1mm, operating pressure range -0.95~14 bar. Body made of nickel-plated steel, stainless steel tube claw, NBR seal. LABS(PWIS) compliant, suitable for paint spraying workshop and general automation. Compact mini structure, external hexagon AF8 for screwing installation, any installation orientation, widely used for small bore cylinder and valve terminal air piping.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | QSM-M3-4 |
| Order No. | 153303 |
| Product Series | QSM |
| Product Type | Mini Straight Push-in Fitting |
| Design | Straight type, push-pull principle |
| Pneumatic Port | Port1: M3 male thread; Port2: for tubing OD 4mm |
| Nominal Size | 1.1 mm |
| Tubing Insertion Depth | 11.5 mm |
| Operating Pressure | -0.95 ~ 14 bar |
| Ambient Temperature | -10 ~ +80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-], lubricated air optional |
| Mounting | External hexagon AF8, any mounting position |
| Tightening Torque | 0.48 Nm (±55%) |
| Housing Material | Nickel-plated steel |
| Release Ring | POM, blue color |
| Tube Seal | NBR |
| Tube Claw | High-alloy stainless steel |
| Feature | PWIS / LABS compliant VDMA24364-B1/B2-L, mini compact size, easy tube plug & release, built-in thread sealing ring |
| Corrosion Resistance Class | CRC1 (low corrosion resistance) |
| Weight | 2.4 g |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
