539288 GF-1/4-2
Product Overview

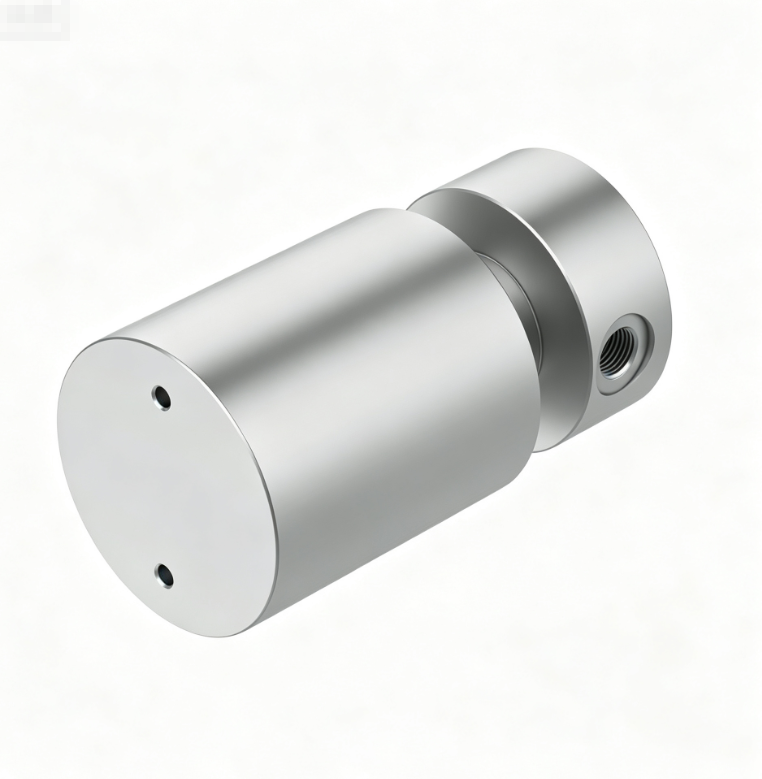

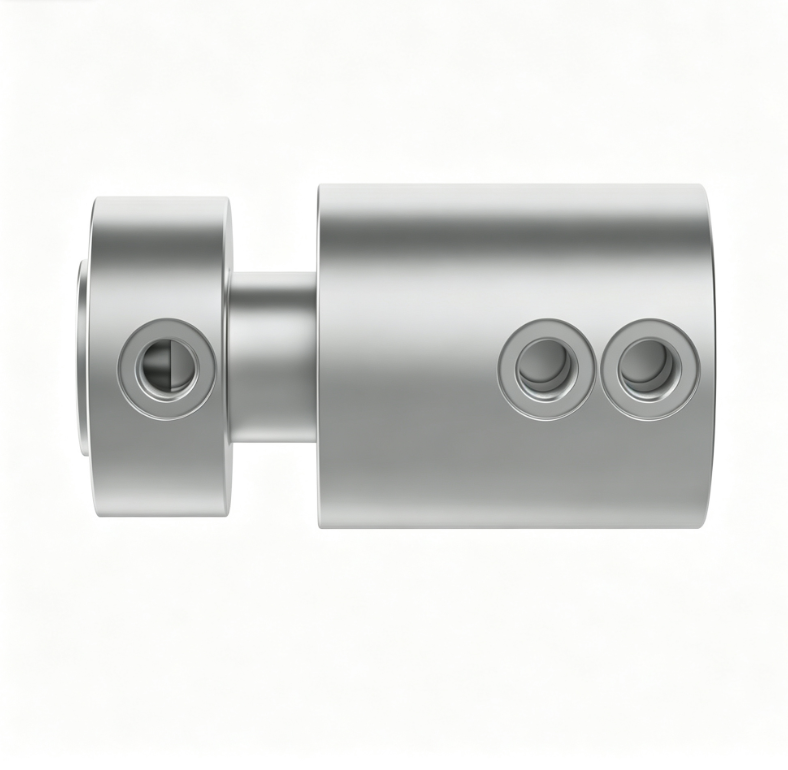

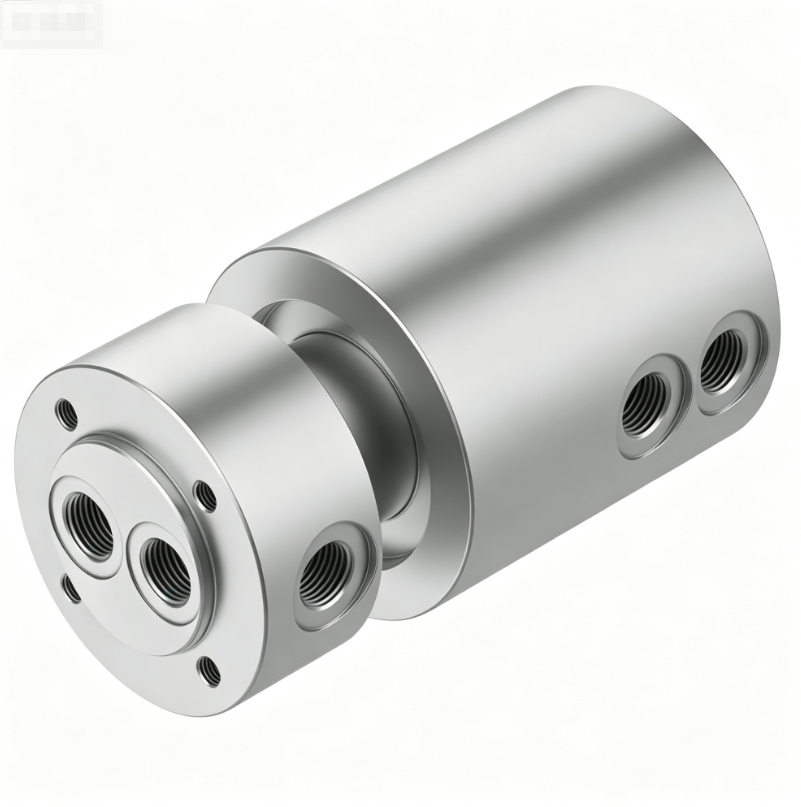

Item No: 539288 Model: GF-1/4-2 Brand: Festo Type: Pneumatic Rotary Distributor
Festo GF-1/4-2 rotary distributor (539288) belongs to GF rotary union series. It is a 2-circuit rotary air joint with G1/4 thread ports. This component allows unlimited continuous rotation between fixed side and rotating side of pneumatic circuit, preventing tubing tangling. It transfers compressed air to rotating actuators such as rotary cylinders and rotating clamps. Compact aluminum body and durable seals ensure stable performance for rotary automation.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | GF-1/4-2 |
| Part No. | 539288 |
| Type | Rotary Distributor / Rotary Union |
| Series | GF |
| Number of Circuits | 2 circuits |
| Port Size | G1/4 |
| Max Operating Pressure | 1.0 MPa (10 bar) |
| Max Rotating Speed | 150 rpm |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -10 ~ +80 ℃ |
| Material | Housing: aluminum alloy; Seals: NBR |
| Feature | 2-channel rotary air joint, continuous rotation, no air leakage |
| Mounting | Connect between rotating and stationary pneumatic part |
| Weight | 210 g |
| Condition | New Original |
