QSL-1/4-8
Product Overview

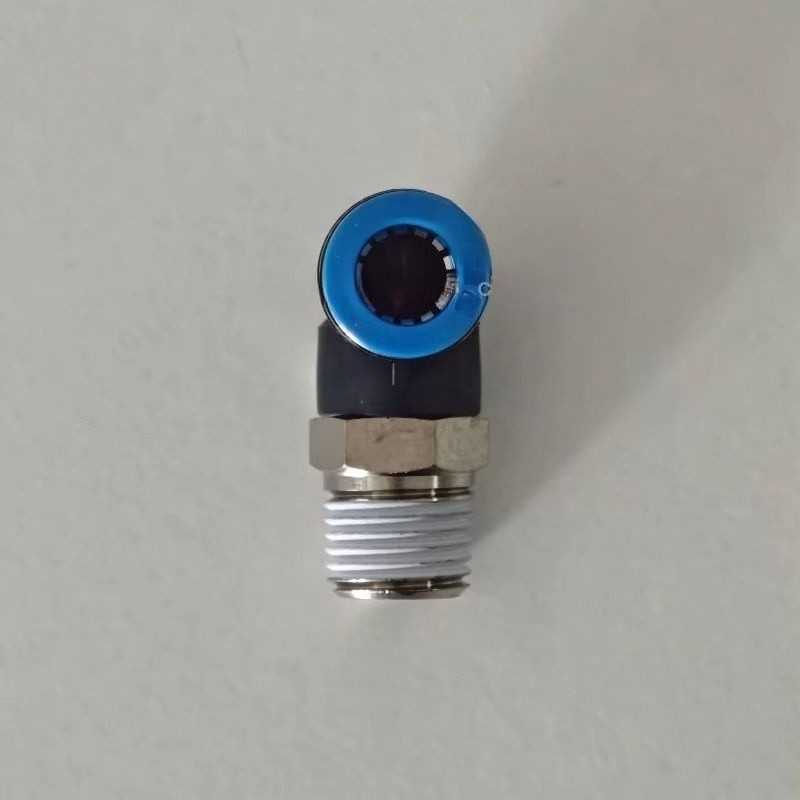

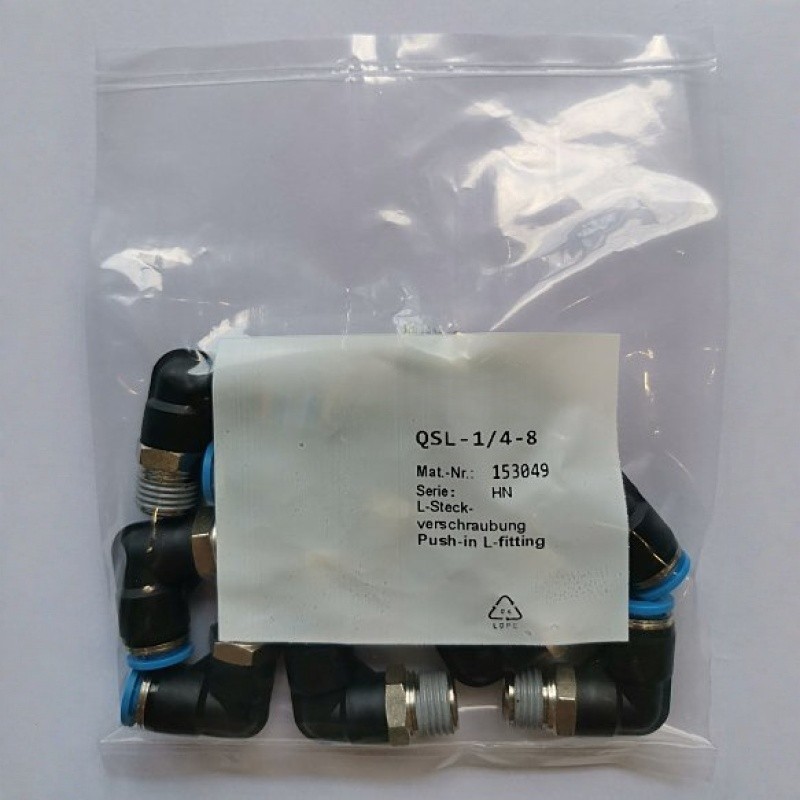

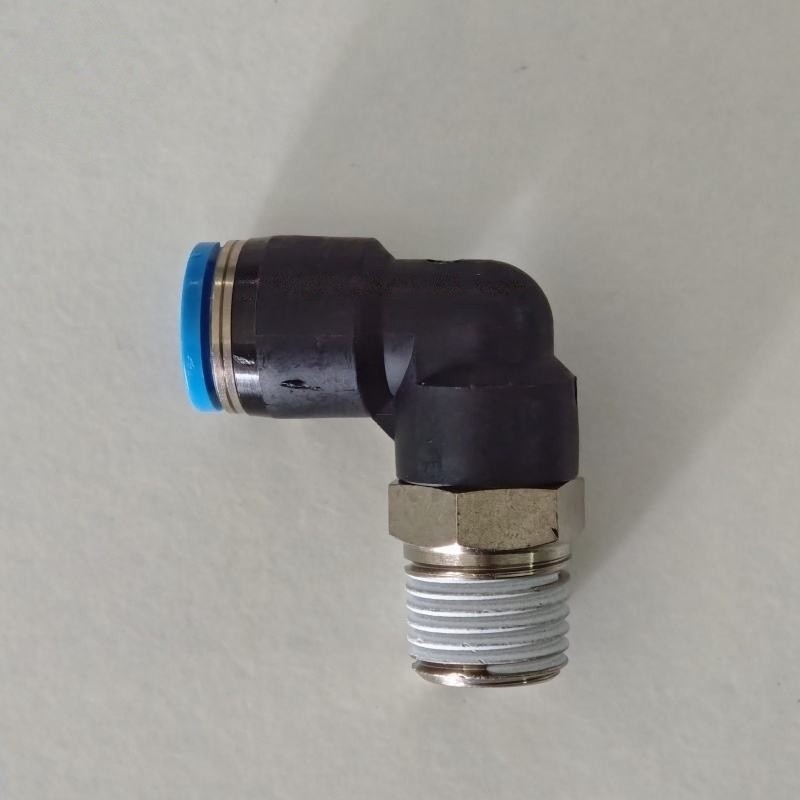

QSL-1/4-8 (Part No.153049) is a 90° push-in L elbow fitting from Festo QSL series. It adopts push-pull quick connection principle, with R1/4 male thread on one end and push-in port for 8mm OD pneumatic tube on the other. The elbow can be freely rotated after installation to optimize pipeline layout without twisting the air tube. Made of premium PBT, nickel-plated brass and NBR seal, this fitting supports vacuum and compressed air applications, LABS(PWIS) compliant, widely used for quick pipe connection in industrial pneumatic automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSL-1/4-8 |
| Part No. | 153049 |
| Product Type | Pneumatic Push-in L Fitting |
| Series | QSL |
| Connection 1 | Male thread R1/4 |
| Connection 2 | Push-in for 8mm OD pneumatic tube |
| Shape | 90° Elbow |
| Nominal Width | 6.7 mm |
| Operating Pressure | -0.095 ~ 1.4 MPa |
| Operating Temperature | -10 ~ 80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 |
| Housing Material | PBT |
| Thread Material | Nickel-plated Brass |
| Release Ring | POM |
| Seal Material | NBR |
| Net Weight | 0.02 kg |
| Corrosion Resistance Class | CRC 1 |
| Feature | LABS(PWIS) compliant, push-pull connection |
| Application | Pneumatic pipeline connection, industrial automation |
| Certificate | RoHS Compliant |
