NAS-1/4-1A-ISO
Product Overview

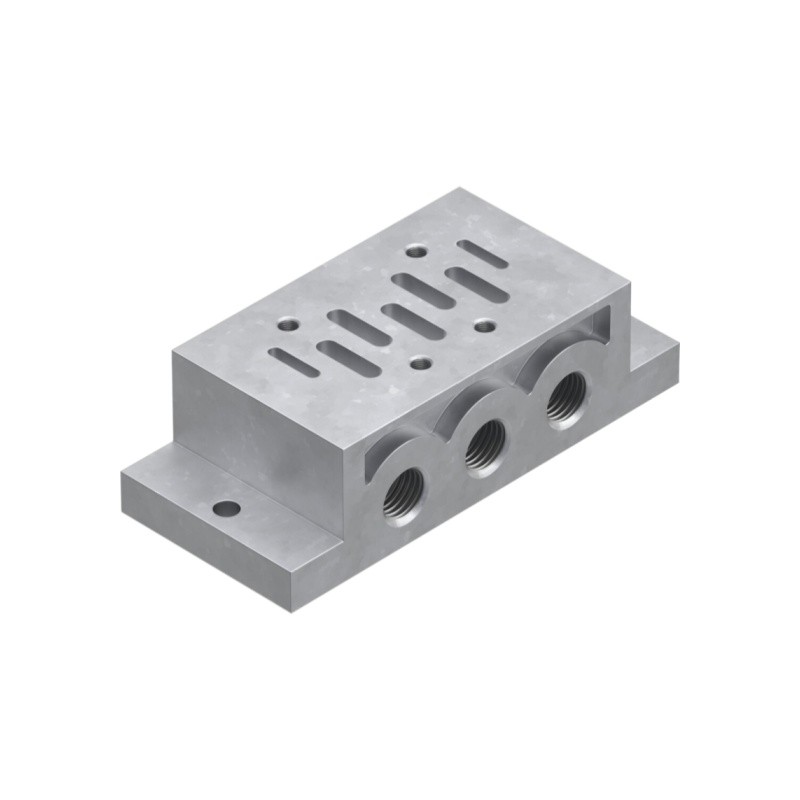

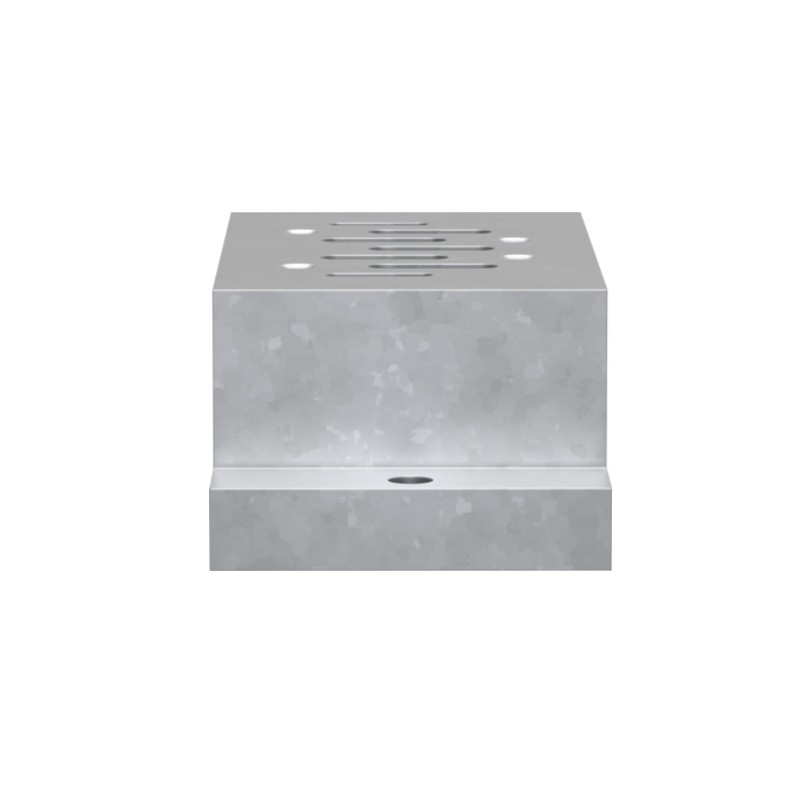

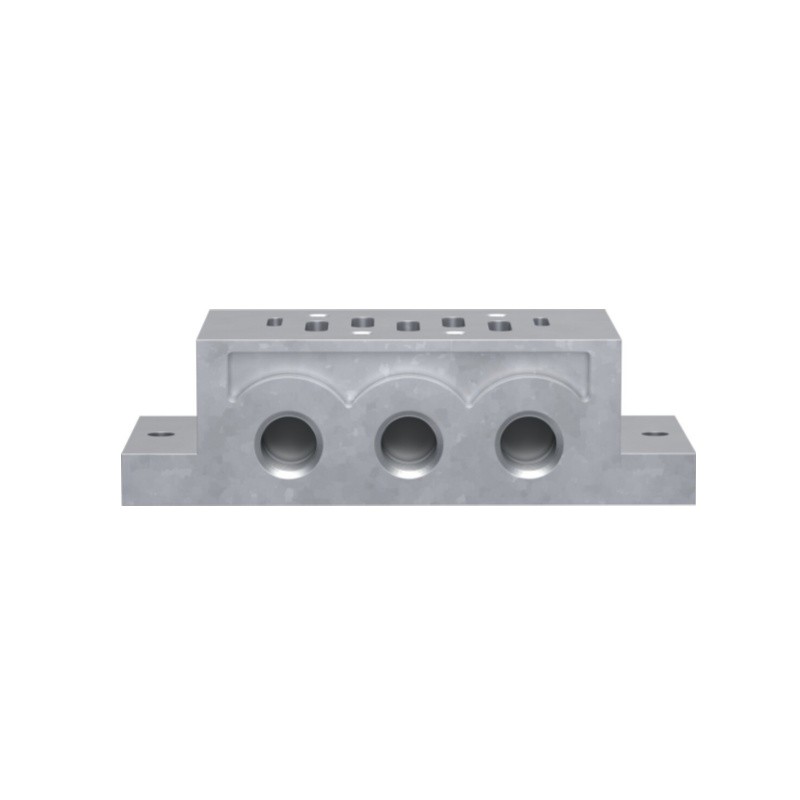

NAS-1/4-1A-ISO (Part No.9484) is an individual sub-base from Festo NAS series, manufactured in compliance with ISO 5599-1 standard. This die-cast aluminum valve base is specially designed for VSVA series solenoid valves. It adopts side air connection layout, equipped with G1/4 main pneumatic ports and G1/8 pilot air port. Pre-machined through mounting holes enable quick installation. It meets LABS (PWIS) requirements and has UL recognition, a high-quality pneumatic accessory to simplify air circuit layout and convenient for valve maintenance and replacement in industrial automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | NAS-1/4-1A-ISO |
| Part No. | 9484 |
| Product Type | Individual Sub-base / Connector Plate |
| Series | NAS |
| Standard | ISO 5599-1 |
| Applicable Valve | VSVA series solenoid valve |
| Pneumatic Port | G1/4 (Port1/2/3/4/5) |
| Pilot Air Port | G1/8 |
| Mounting Type | With through mounting holes |
| Housing Material | Die-cast Aluminum |
| Net Weight | 0.19 kg |
| Certificate | UL Recognized, RoHS Compliant |
| Feature | LABS compliant, side connection design |
| Application | Pneumatic solenoid valve installation base, industrial automation |
