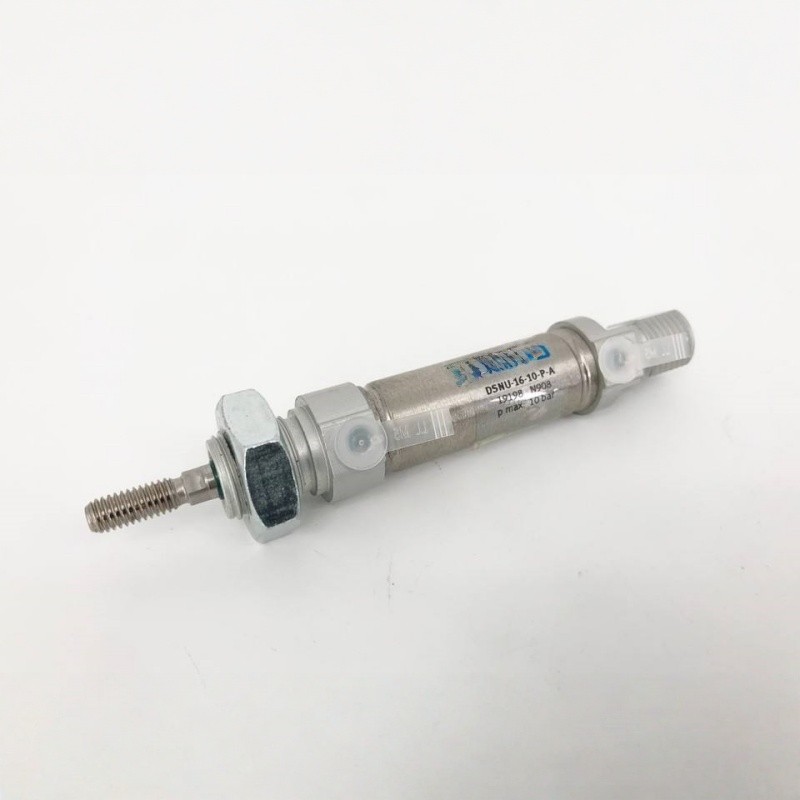

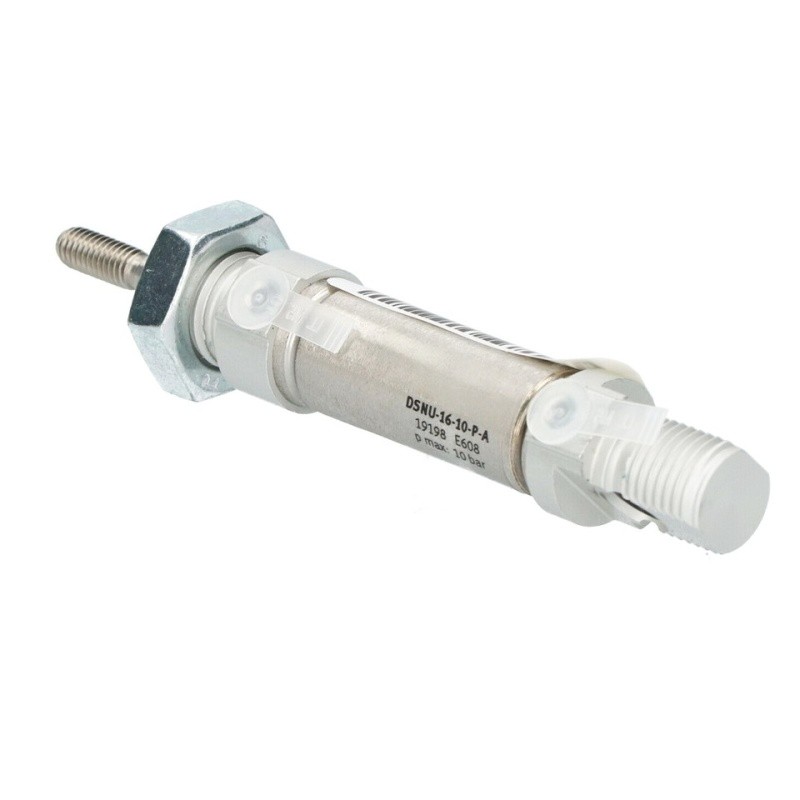

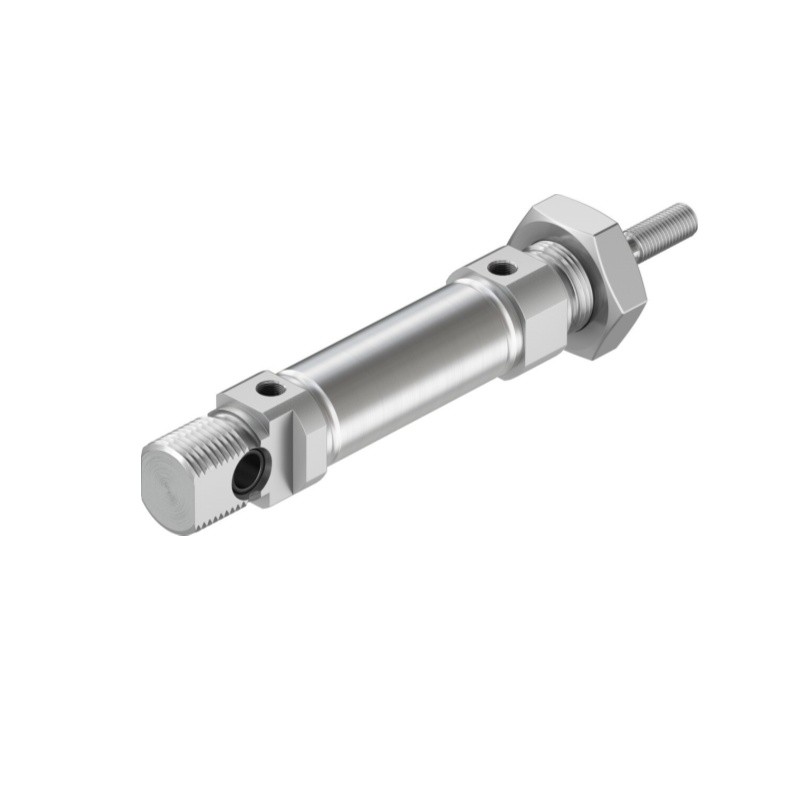

DSNU-16-10-P-A
Product Overview
DSNU-16-10-P-A (Part No.19205) belongs to Festo DSNU series round pneumatic cylinder complying with ISO 6432 standard. It is a double-acting compact air cylinder with 16mm bore and 10mm stroke. Equipped with P type fixed elastic cushion at both ends and built-in magnetic piston for proximity sensor position detection. Adopts lightweight anodized aluminum alloy barrel and stainless steel piston rod, stable performance and easy installation. Widely used in small automation equipment, material handling and packaging machinery for short-stroke linear motion control.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | DSNU-16-10-P-A |
| Part No. | 19205 |
| Product Type | Round Pneumatic Cylinder |
| Series | DSNU |
| Operation Mode | Double-acting |
| Piston Diameter | 16 mm |
| Stroke | 10 mm |
| Cushioning | P, fixed cushioning at both ends |
| With Magnet | Yes, for proximity sensor |
| Operating Pressure | 0.1 ~ 1.0 MPa |
| Theoretical Force(6bar) | Advance:121 N, Return:102 N |
| Port Size | G1/8 |
| Housing Material | Aluminum alloy |
| Piston Rod Material | Stainless steel |
| Seal Material | NBR |
| Operating Temperature | -20 ~ 80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Feature | Compact round cylinder, magnetic piston for sensor |
| Application | Industrial automation, handling equipment |
| Certificate | RoHS Compliant |
| Net Weight | 0.04 kg |
