WL280-2P243
Product Overview

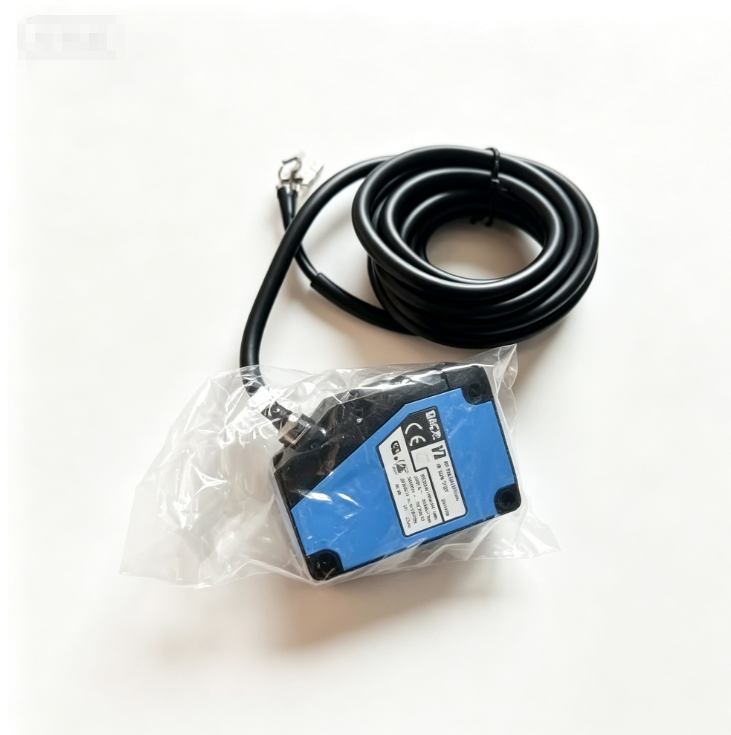

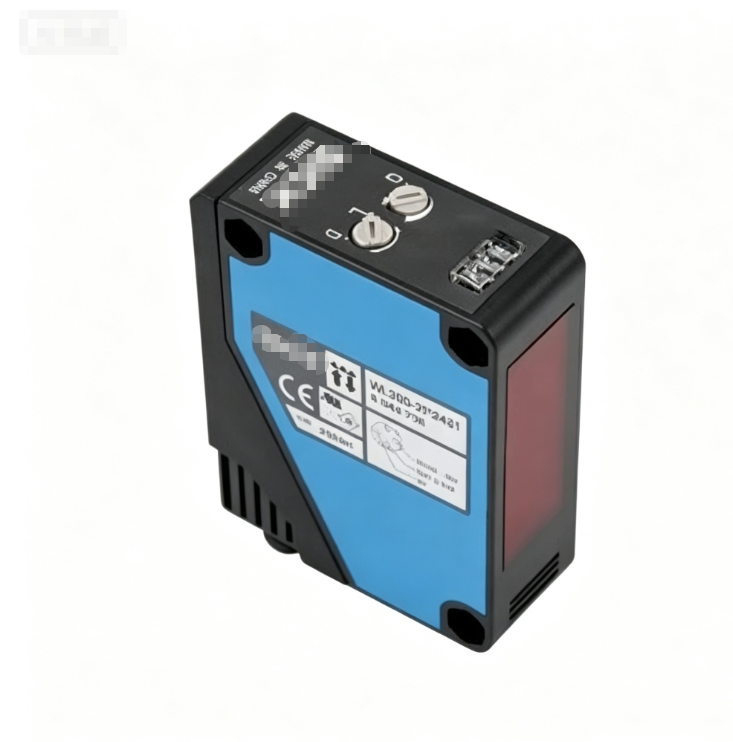

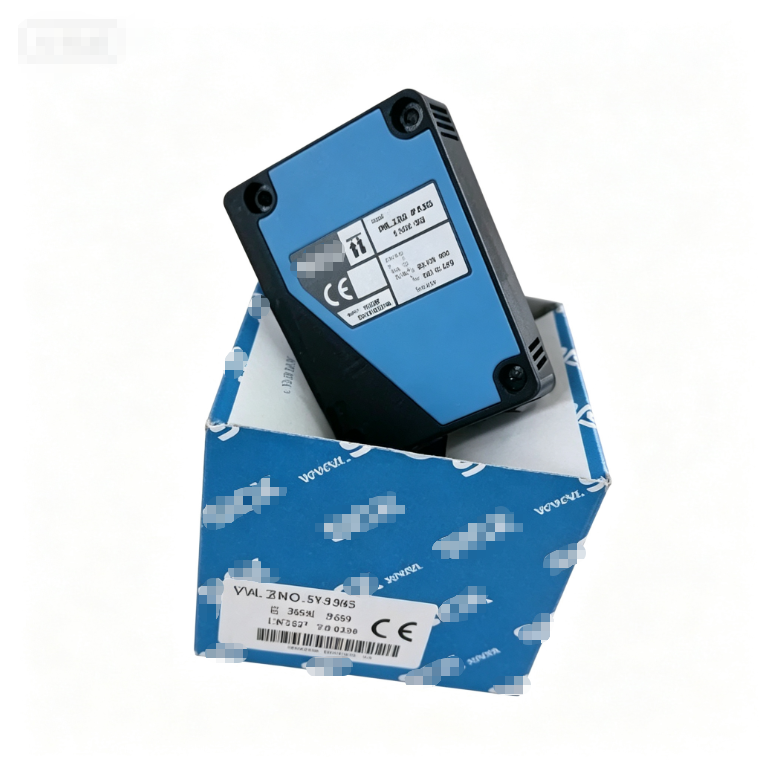

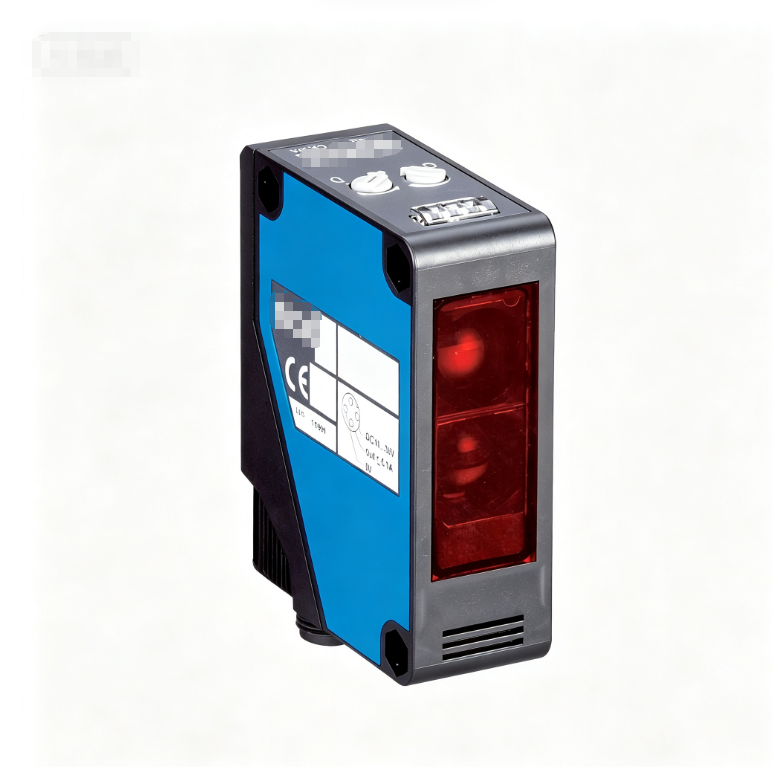

SICK WL280-2P243, Order No.6044736 is a retro-reflective photoelectric sensor with dual lens design. Equipped with red LED light source, it achieves 15m maximum sensing range matched with PL80A reflector. It supports switchable Light-on / Dark-on function, suitable for various object detection scenarios in industrial automation.
| 属性项 | 参数 |
|---|---|
| Brand | SICK |
| Model | WL280-2P243 |
| Full Model | WL280-2P2431 |
| Order No. | 6044736 |
| Product Type | Retro-reflective Photoelectric Sensor |
| Sensing Principle | Retro-reflective, Dual lens |
| Sensing Range | 0.01 ~15 m (with PL80A reflector) |
| Output Type | PNP, Light-on / Dark-on switchable |
| Supply Voltage | 10~30V DC |
| Connection | M12 4-pin male connector |
| Housing Material | ABS Plastic |
| Protection Grade | IP66,IP67 |
| Light Source | Red LED |
| Size | 23.5 × 74.5 × 63 mm |
| Response Time | ≤0.5ms |
| Max Output Current | 100mA |
| Operating Temp | -25℃ ~ +55℃ |
| Net Weight | 0.15kg |
| Gross Weight | 0.19kg |
| Certification | CE |
| Condition | New Original |
| Application | Factory Automation, Conveyor, Packaging Machine, Object detection |
