GL6-P1112

属性项	参数
Brand	SICK
Model	GL6-P1112
Order No.	1051779
Product Type	Retro-reflective Photoelectric Sensor
Sensing Principle	Retro-reflective, Dual lens, with polarizing filter
Sensing Range	0.03 ~ 6 m (with PL80A reflector)
Output Type	PNP
Supply Voltage	10~30V DC
Connection	2m fixed cable, 3-core
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	Red PinPoint LED,650nm
Size	12 × 31.5 × 21 mm
Response Time	≤0.5ms
Max Output Current	100mA
Operating Temp	-25℃ ~ +55℃
Net

INQUIRY

Product Details

Product Tags

Product Overview

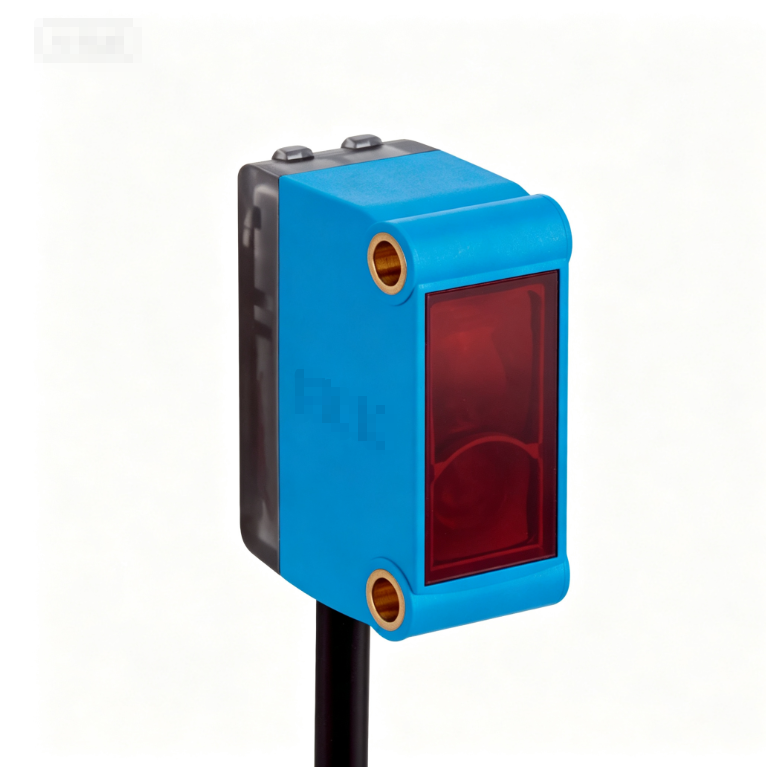

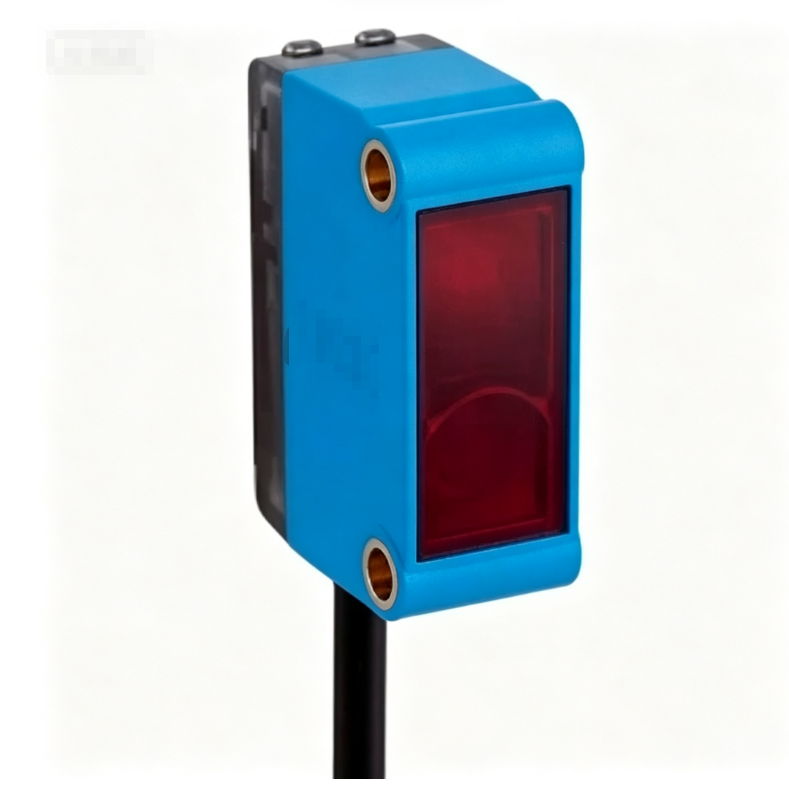

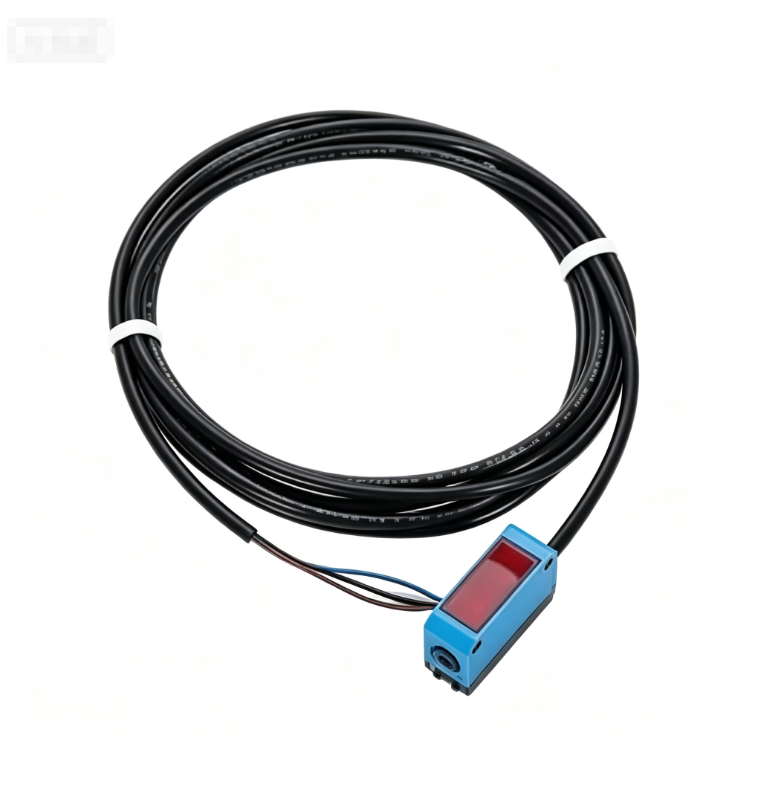

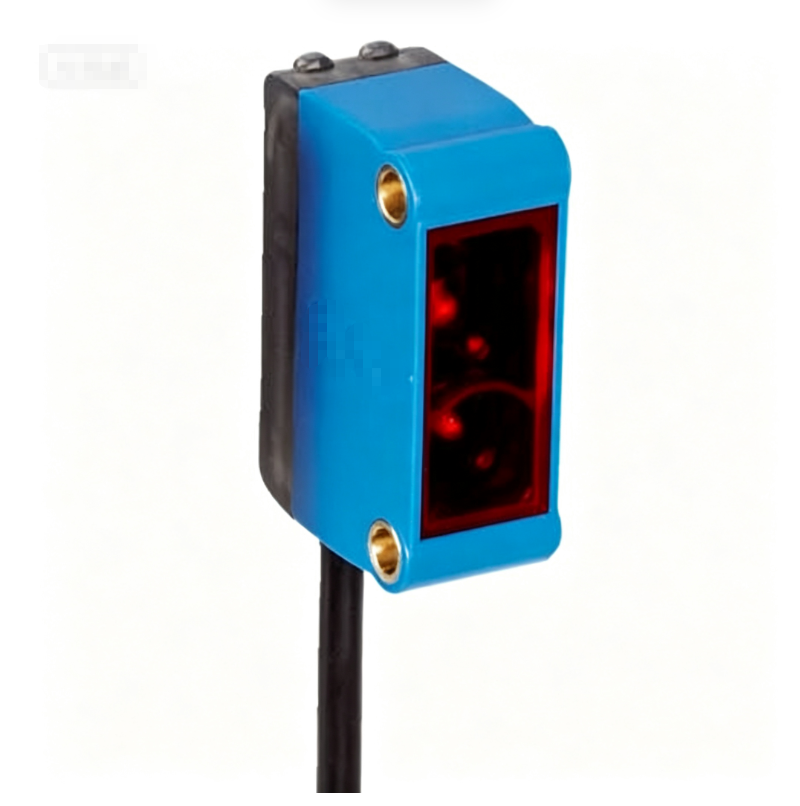

SICK GL6-P1112, Order No.1051772 is a compact retro-reflective photoelectric sensor with built-in polarizing filter and red PinPoint LED. The polarizing filter effectively suppresses interference from shiny reflective surfaces, ensuring stable detection for glossy workpieces. It comes with a 2-meter fixed 3-core cable for simple wiring.

属性项	参数
Brand	SICK
Model	GL6-P1112
Order No.	1051779
Product Type	Retro-reflective Photoelectric Sensor
Sensing Principle	Retro-reflective, Dual lens, with polarizing filter
Sensing Range	0.03 ~ 6 m (with PL80A reflector)
Output Type	PNP
Supply Voltage	10~30V DC
Connection	2m fixed cable, 3-core
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	Red PinPoint LED,650nm
Size	12 × 31.5 × 21 mm
Response Time	≤0.5ms
Max Output Current	100mA
Operating Temp	-25℃ ~ +55℃
Net Weight	0.04kg
Gross Weight	0.07kg
Certification	CE
Condition	New Original
Application	Factory Automation, Conveyor, Packaging Machine, Object detection
