546714 VSPA-B-B52-A1
Product Overview
Item No: 546714 Model: VSPA-B-B52-A1 Brand: Festo Type: Plug-in Solenoid Valve for Valve Terminal

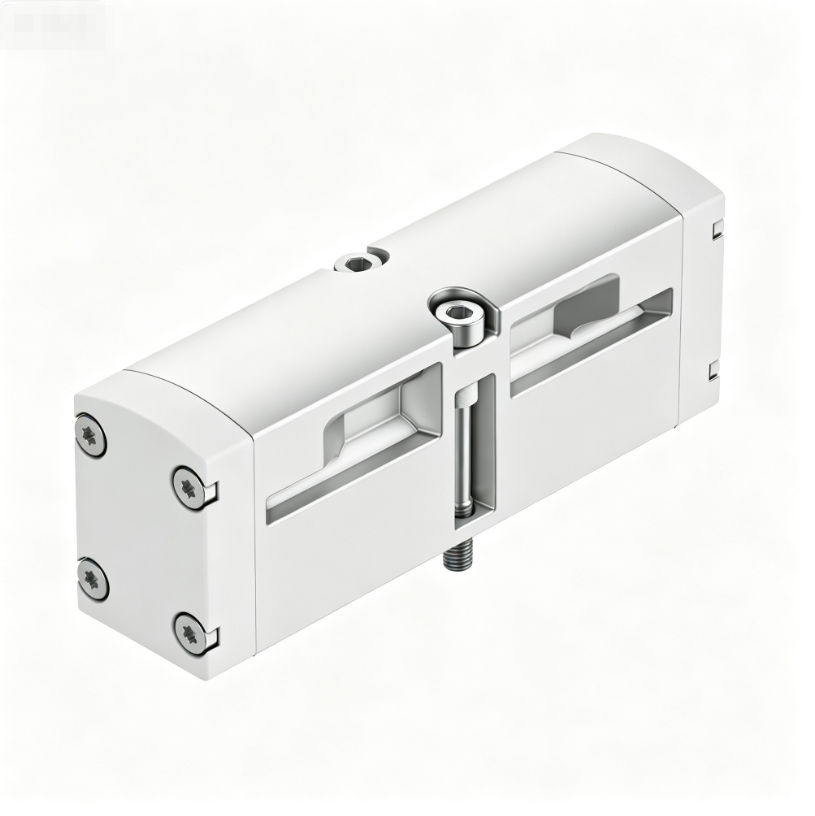

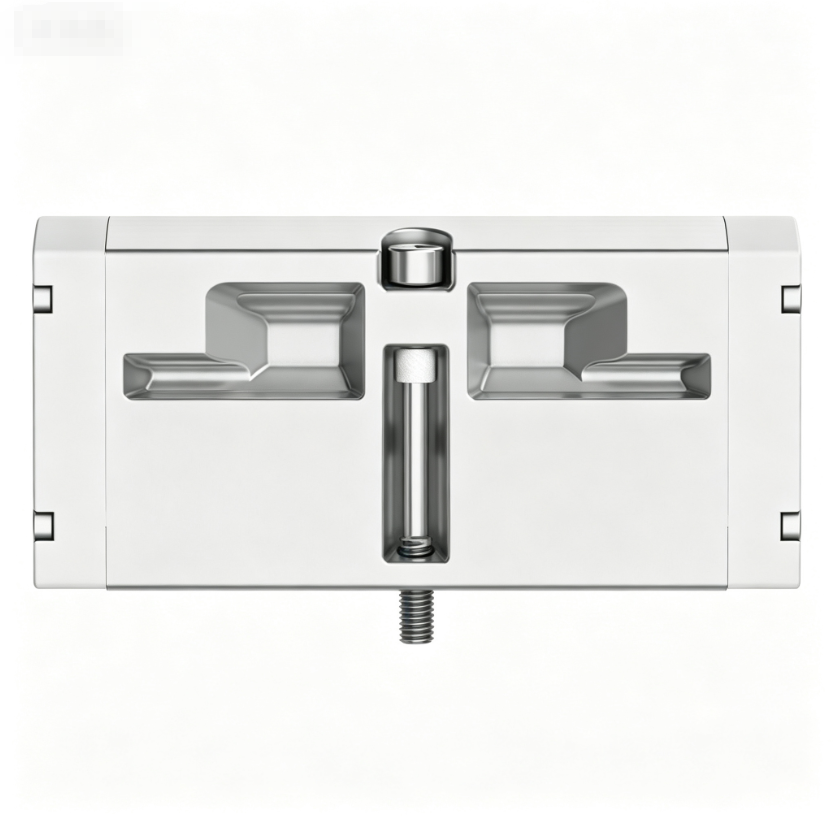

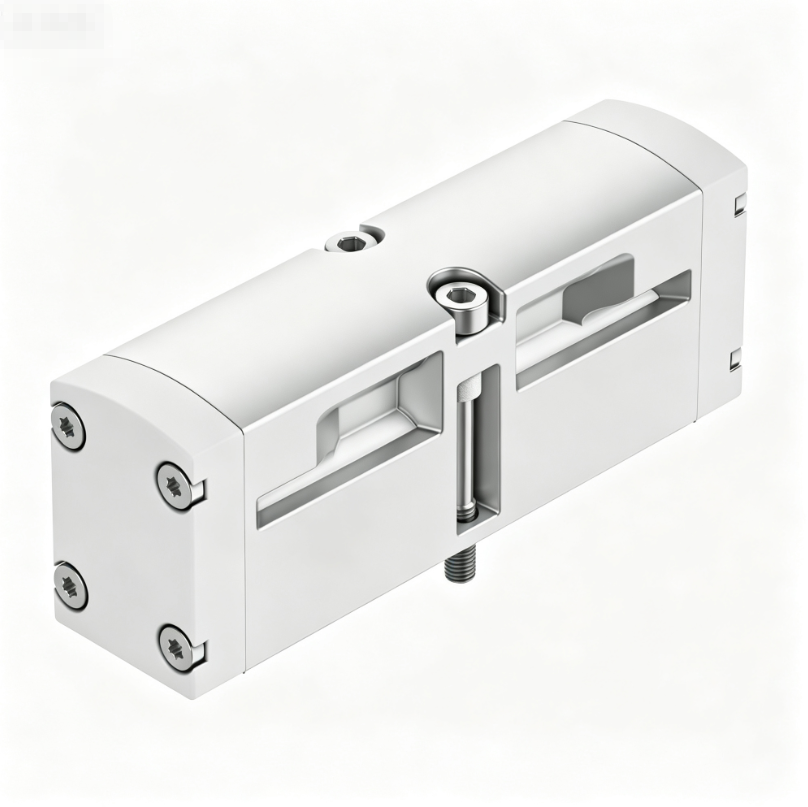

Festo VSPA-B-B52-A1 solenoid valve (546714) belongs to VSPA valve island series. It is a 5/2-way single electric control valve with spring return. Adopts modular plug-in structure, directly inserted into VSPA 阀岛 manifold base, convenient for maintenance and on-site expansion. DC24V coil, large flow rate, used to switch air circuit and control the action of pneumatic cylinders in automated production lines.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VSPA-B-B52-A1 |
| Part No. | 546714 |
| Type | Solenoid Valve / Valve Island Solenoid |
| Series | VSPA |
| Valve Function | 5/2-way, monostable, spring return |
| Actuation | Solenoid operated, spring reset |
| Operating Voltage | DC24V |
| Nominal Flow | 700 l/min |
| Working Pressure | 0.2 ~ 0.8 MPa (2 ~ 8 bar) |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -10 ~ +50 ℃ |
| Material | Valve body: PPS; Seals: NBR |
| Feature | Sub-base mounted, for VSPA valve terminal, compact single coil 5/2 valve |
| Mounting | Plug-in installation on VSPA valve manifold |
| Protection Class | IP65 (when assembled) |
| Condition | New Original |
