1064702 GL10-P4551
Product Overview

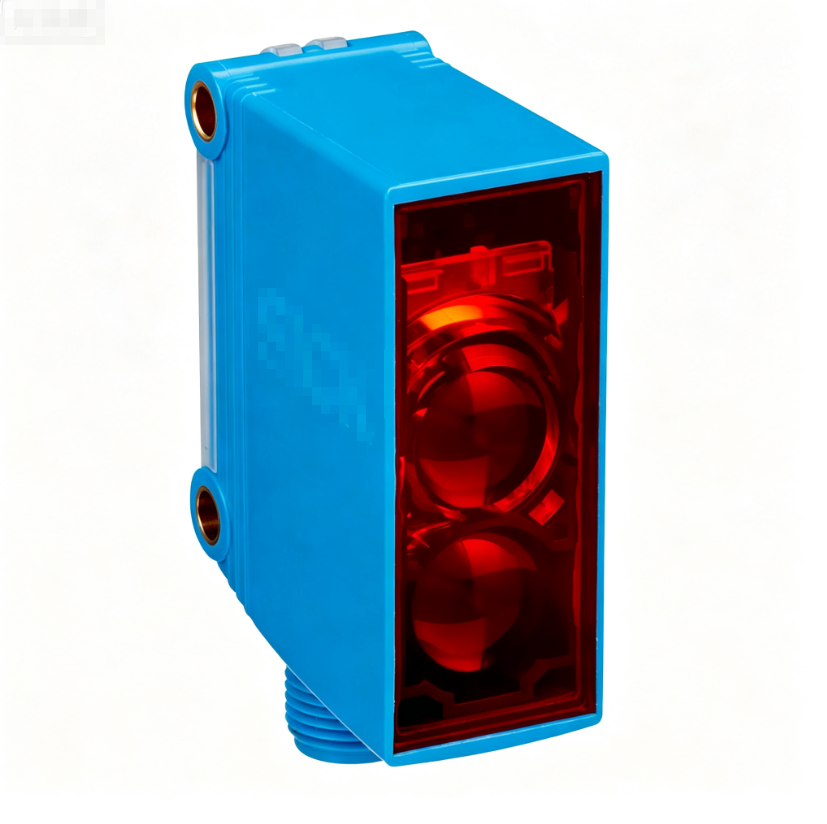

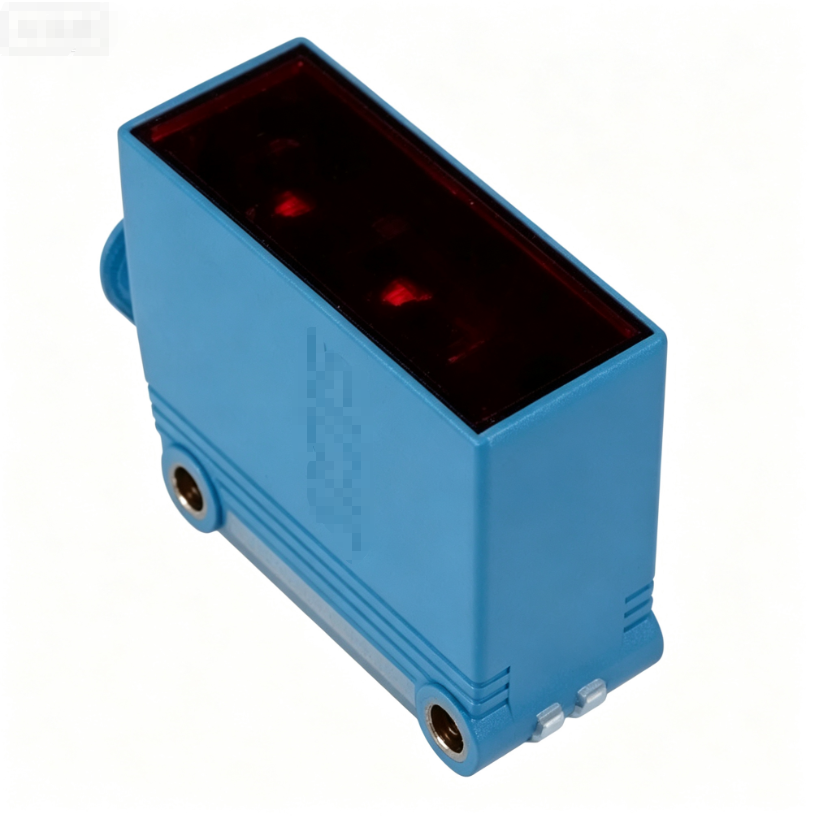

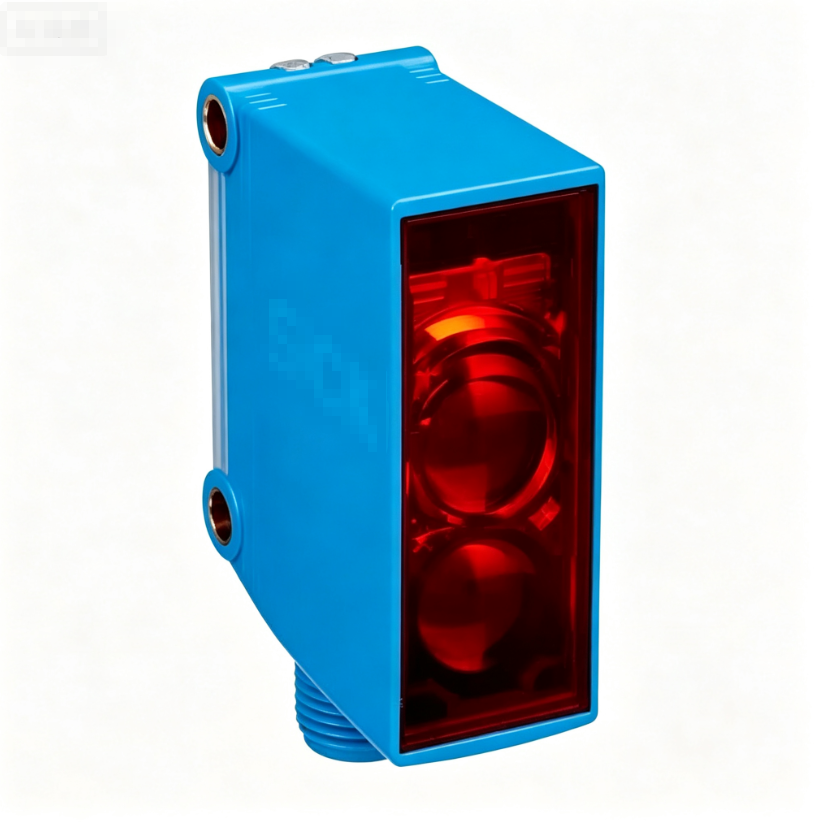

GL10-P4551 (Part No.1064702) is a compact rectangular retro-reflective photoelectric sensor with polarization filter from SICK GL10 series. It uses PinPoint 625nm visible red LED light source, sensing distance reaches 0.3~9500 mm when used together with reflector PL80A. It provides PNP output with switchable Light-ON / Dark-ON function, no adjustment needed. Fitted with M12 4-pin male connector, plastic rectangular housing with dimension of 20×50×39 mm, IP67 protection class and built-in visible LED working indicator. The built-in polarization filter can suppress false detection caused by shiny object reflection. It is widely applied for object detection on packaging machinery, conveyor systems and material handling equipment. Brand new original SICK photoelectric sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | GL10-P4551 |
| Part No. | 1064702 |
| Product Type | Photoelectric Sensor |
| Series | G10 / GL10 |
| Detection principle | Retro-reflective photoelectric sensor with polarization filter |
| Light Source | PinPoint red LED, 625nm visible red light |
| Sensing Distance | 0.3 ~ 9500 mm (with reflector PL80A) |
| Adjustment | No adjustment |
| Output | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | DC10 ~ 30 V |
| Connector | M12 4-pin male connector |
| Housing | Rectangular plastic housing, size 20×50×39mm |
| Protection Class | IP67 |
| Switching Frequency | 500 Hz |
| Special Feature | Polarization filter, suppress shiny object interference, PinPoint precise light spot, compact rectangular design, visible LED indicator |
| Condition | New Original |
| Application | Object detection, packaging machinery, conveyor systems, material handling equipment |
| Net Weight | 0.035 KG |
| Gross Weight | 0.062 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
