MZT8-03VPS-KWB 1048314
Product Overview

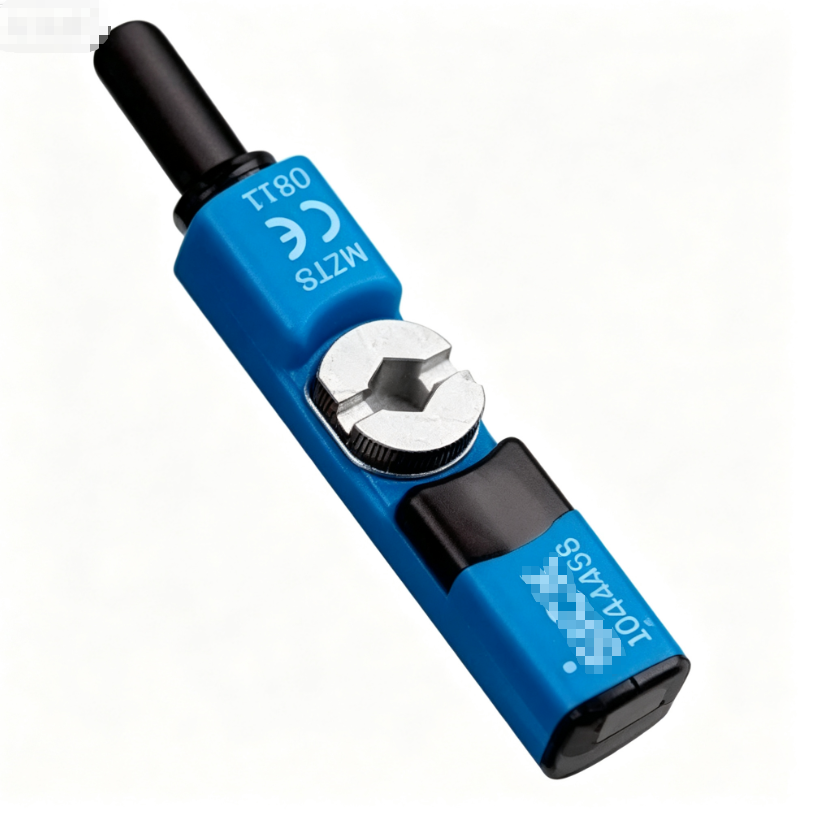

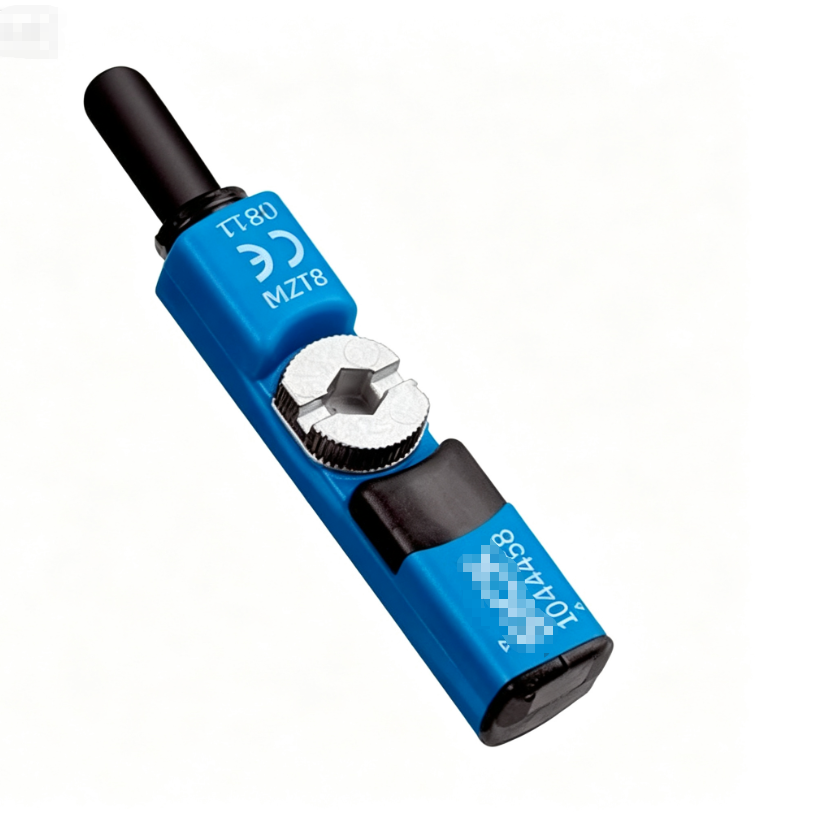

MZT8-03VPS-KWB (Part No.1048314) is a T-slot cylinder magnetic sensor based on Hall effect technology of SICK MZT8 series. It is designed to detect the piston position of pneumatic cylinders, typical sensing distance of 3 mm. It adopts PNP Normally Open DC 3-wire output, operating voltage DC10~30 V, equipped with M12 4-pin male connector. The sensor features plastic housing with IP67 protection class and built-in LED working status indicator. With compact short body and T-slot groove mounting design, it can be installed directly onto standard T-slot pneumatic cylinders conveniently. It can monitor piston position stably, widely used for packaging machinery, conveyor systems and automation equipment. Brand new original SICK cylinder magnetic sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | MZT8-03VPS-KWB |
| Part No. | 1048314 |
| Product Type | Cylinder Magnetic Sensor |
| Series | MZT8 |
| Detection principle | Magnetic field detection for pneumatic cylinder piston |
| Sensing Technology | Hall effect sensor |
| Output | PNP NO (Normally Open), DC 3-wire |
| Rated sensing distance | Typical 3 mm |
| Supply Voltage | DC10 ~ 30 V |
| Connector | M12 4-pin male connector |
| Housing Material | Plastic, groove mounting for T-slot cylinder |
| Protection Class | IP67 |
| Switching Frequency | 1000 Hz |
| Special Feature | T-slot groove mounting, Hall element, built-in LED status indicator, compact design, short housing |
| Condition | New Original |
| Application | Pneumatic cylinder piston position detection, packaging machinery, conveyor systems, automation equipment |
| Net Weight | 0.026 KG |
| Gross Weight | 0.054 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
