573476 VUVG-B14-T32C-AZT-F-1T1L
Product Overview

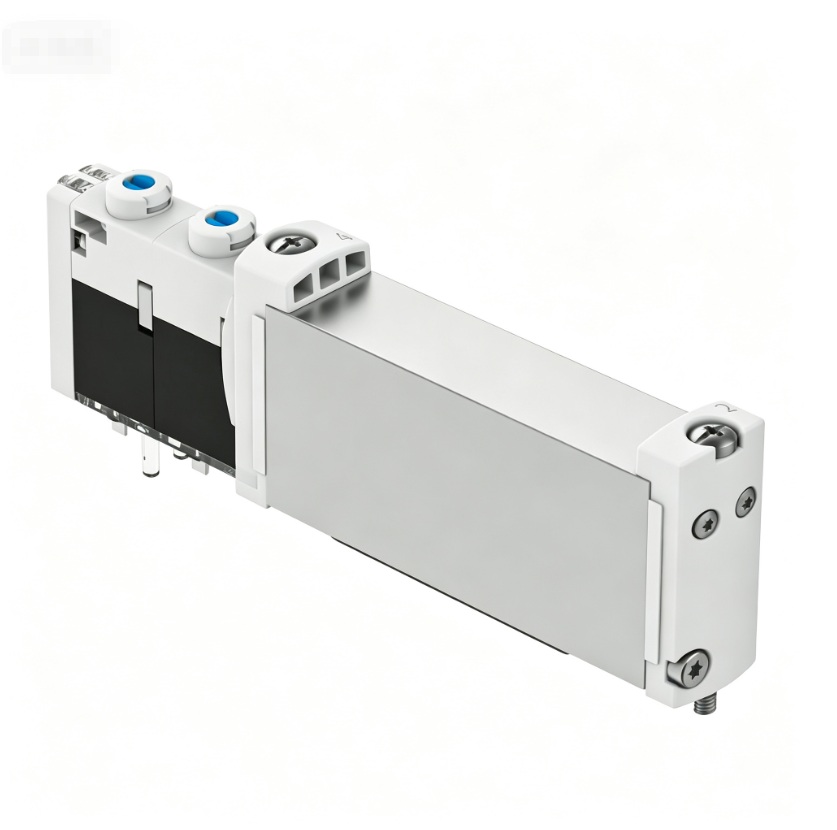

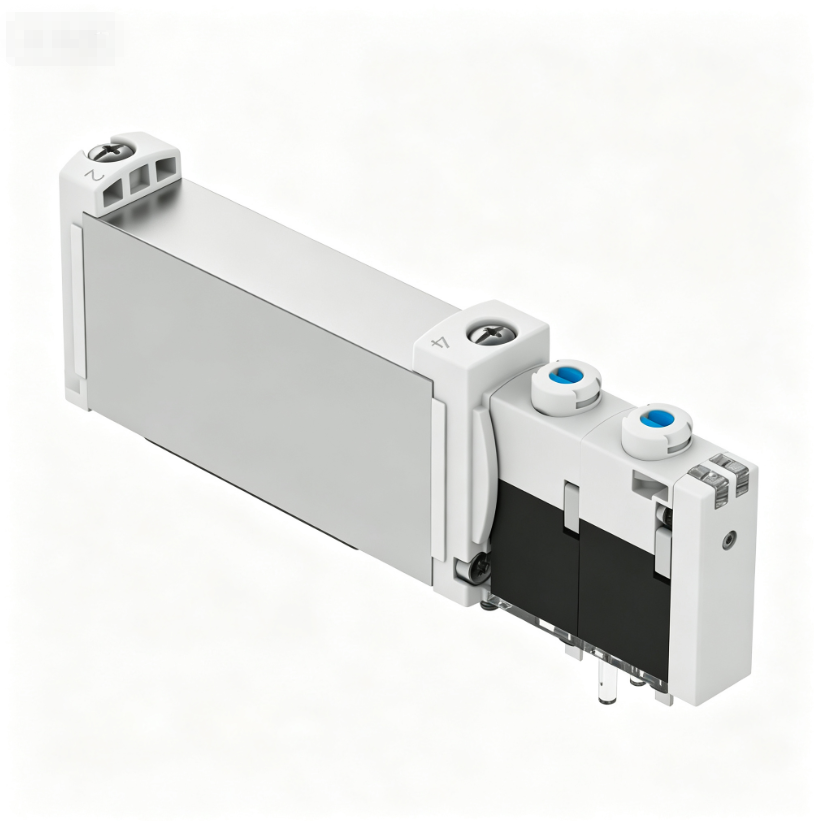

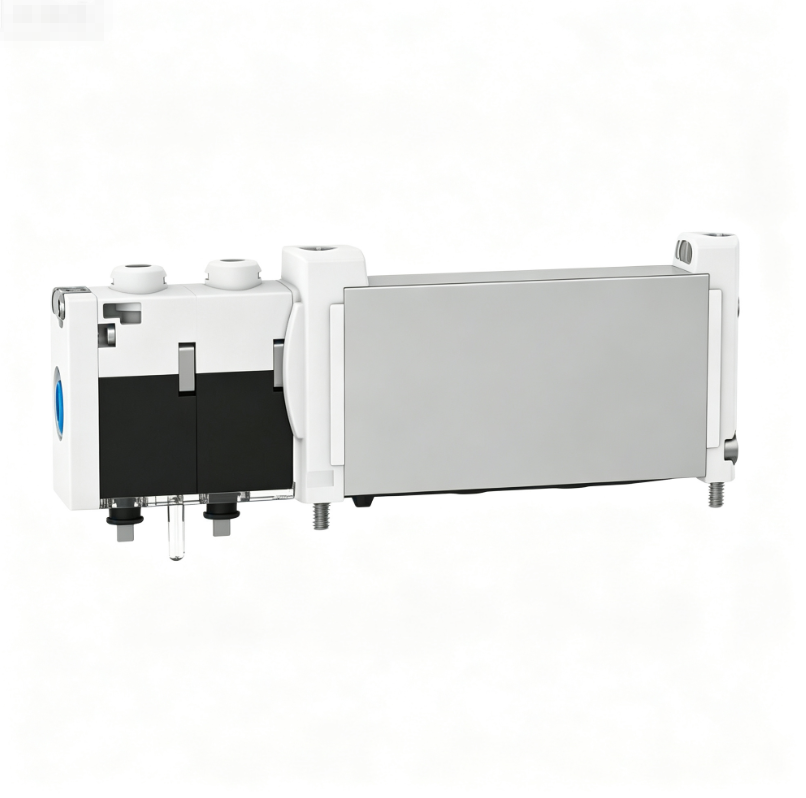

Item No: 573476 Model: VUVG-B14-T32C-AZT-F-1T1L Brand: Festo Type: Plug-in Solenoid Valve for VUVG Valve Terminal
Festo VUVG-B14-T32C-AZT-F-1T1L solenoid valve (573476) belongs to VUVG valve island series. It is a B14 . Modular plug-in design, directly inserted into VUVG ，convenient for on-site maintenance and expanding control stations. DC24V coil, compact structure, mainly used for vacuum control and single-acting cylinder control in automated production lines.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VUVG-B14-T32C-AZT-F-1T1L |
| Part No. | 573476 |
| Type | Solenoid Valve / Valve Terminal Insert Valve |
| Series | VUVG |
| Valve Function | 3/2-way, monostable, spring return |
| Actuation | Solenoid operated, spring reset |
| Coil Voltage | DC24V |
| Nominal Flow | 180 l/min |
| Working Pressure | 0.2 ~ 0.8 MPa (2 ~ 8 bar) |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -10 ~ +50 ℃ |
| Material | Valve body: PPS; Seals: NBR |
| Feature | B14 size, T32C 3/2 normally closed, AZT quick plug-in, F seal, 1T1L electrical connection, for VUVG 阀岛 |
| Mounting | Plug-in installation on VUVG manifold base |
| Protection Class | IP65 (after full assembly) |
| Condition | New Original |
