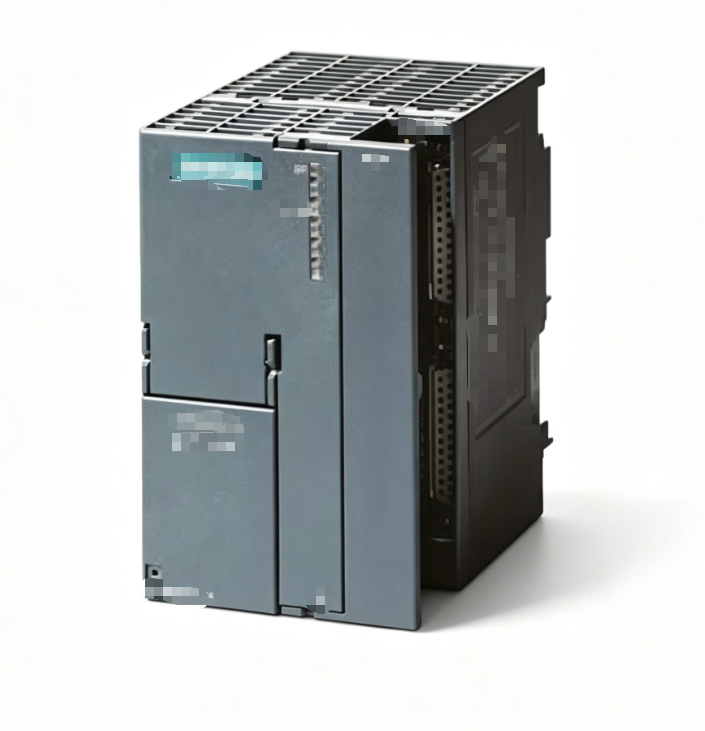

6ES7360-3AA01-0AA0

6ES7360-3AA01-0AA0
Attribute Name	Value
Brand	Siemens
Model	6ES7360-3AA01-0AA0
Series	SIMATIC S7-300, IM360 Interface Module
Type	PLC Interface Module
Function	Transmitter module on S7-300 main rack, send backplane signal to IM361
Matching Module	Work with IM361 (6ES7361-3CA01-0AA0)
Max. Extension Distance	5m (with dedicated extension cable)
Power Supply	DC24V
Backplane Bus Current Consumption	Max 0.8A
Mounting	DIN rail, S7-300 main backplane
Origin	Germany
Warranty	1 year
Condition	New Original
Net

Product Details

Product Tags

Product Overview

Siemens 6ES7360-3AA01-0AA0 is IM360 transmitter interface module for SIMATIC S7-300 PLC system. It is mounted on the main rack and transmits backplane bus signals to IM361 receiver module via dedicated extension cable. The maximum extension distance is 5 meters. Powered by DC24V, max backplane bus current consumption 0.8A, DIN rail installation on S7-300 main rack. It is used together with IM361 to realize multi-rack expansion of S7-300 PLC for adding extra IO modules.
