WTM12L-24161820A00 1157499
Product Details

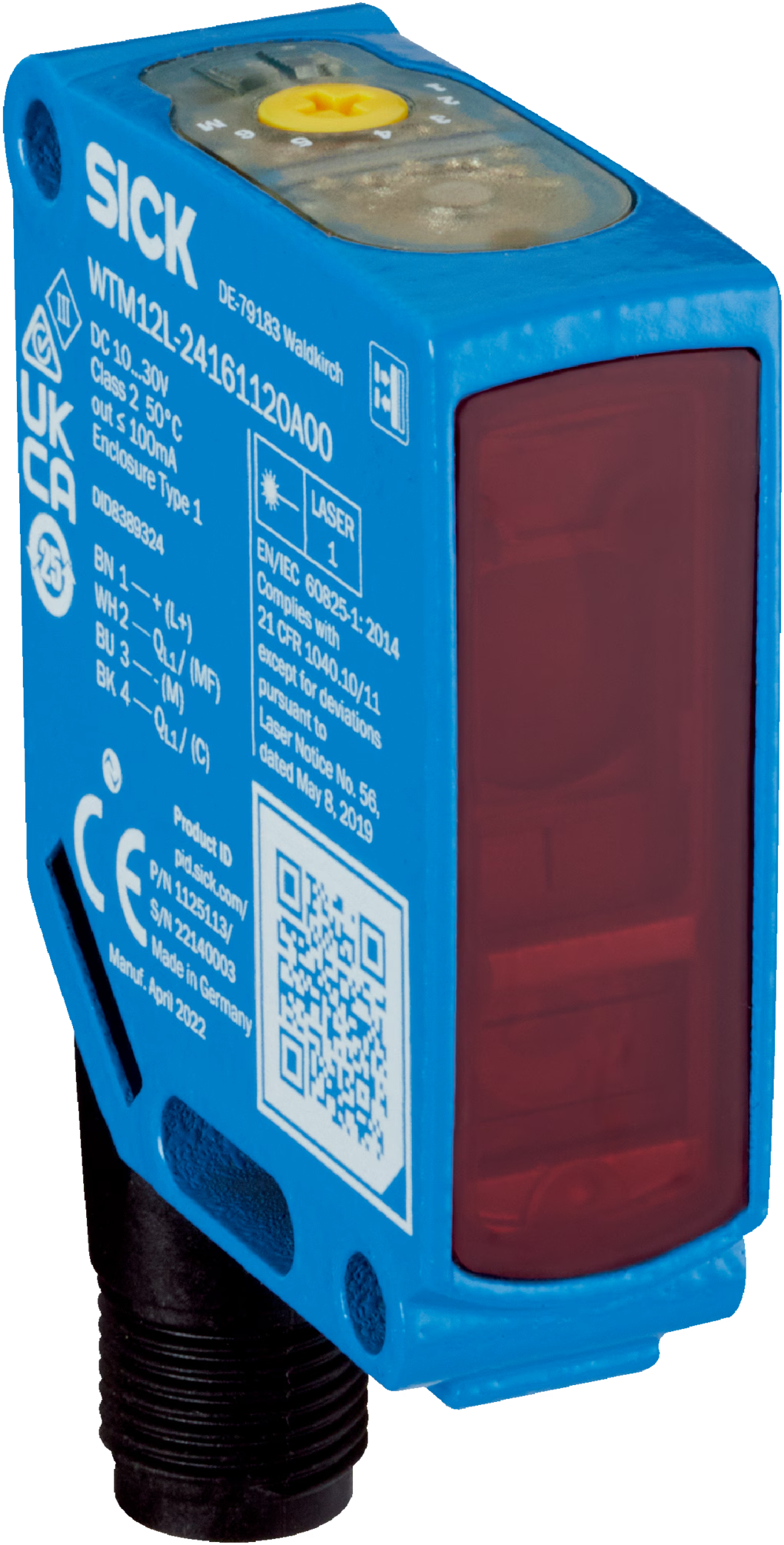

The SICK WTM12L-24161820A00 is a brand-new original diffuse photoelectric sensor of the WTM12L series. It is equipped with visible red LED light source and diffuse reflection technology with foreground suppression function, operating at 10–30 V DC power supply. It supports switchable PNP/NPN output and Light-ON / Dark-ON function to match different industrial controllers. It has IP67 protection grade to resist dust and moisture, working stably within -20℃ ~ +55℃ ambient temperature.
This sensor uses zinc die-cast metal and plastic rectangular housing, adopting M12 4-pin connector for convenient wiring and assembly. Its sensing range can be adjusted from 20mm to 150mm. The foreground suppression design effectively reduces interference from background objects.
This photoelectric sensor is widely deployed for object detection in packaging machinery, conveyor automated production lines and material handling systems. Each unit passes strict pre-shipment quality inspection and holds CE certification. We supply genuine SICK sensors with MOQ of 1 piece and provide stable global shipping services to meet your factory automation demands.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | WTM12L-24161820A00 |
| Product Name | Photoelectric Sensor |
| Product Type | Diffuse Photoelectric Sensor with foreground suppression |
| Series | WTM12L series |
| Working Principle | Diffuse reflection with foreground suppression |
| Light Source | Visible Red LED |
| Housing Material | Zinc die-cast metal + Plastic |
| Shape | Rectangular |
| Connection | M12 4-pin connector |
| Output Type | PNP/NPN switchable, Light-ON / Dark-ON switchable |
| Supply Voltage | 10 … 30 V DC |
| IP Rating | IP67 |
| Ambient Temperature | -20℃ ~ +55℃ |
| Sensing Range | 20~150mm adjustable |
| Net Weight | 0.15 kg |
| Gross Weight | 0.20 kg |
| Origin | Germany |
| Condition | Brand New Original |
| Application | Object detection, packaging machinery, conveyor automation, material handling |
| Certificate | CE |
| MOQ | 1 Piece |
