1040763 IME12-04BPSZC0K
Product Overview

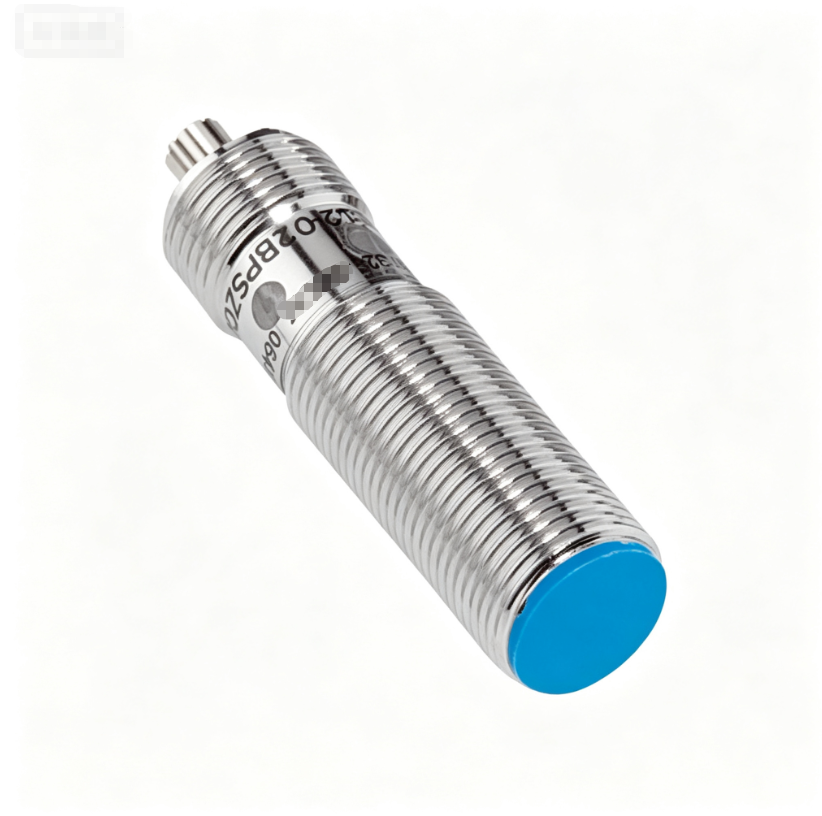

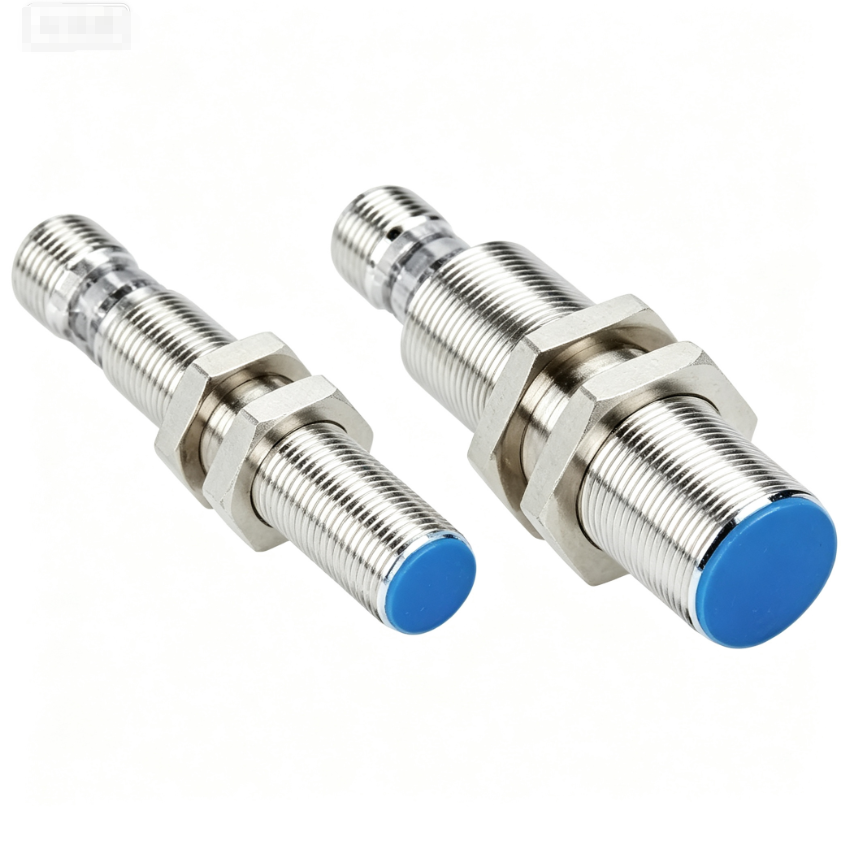

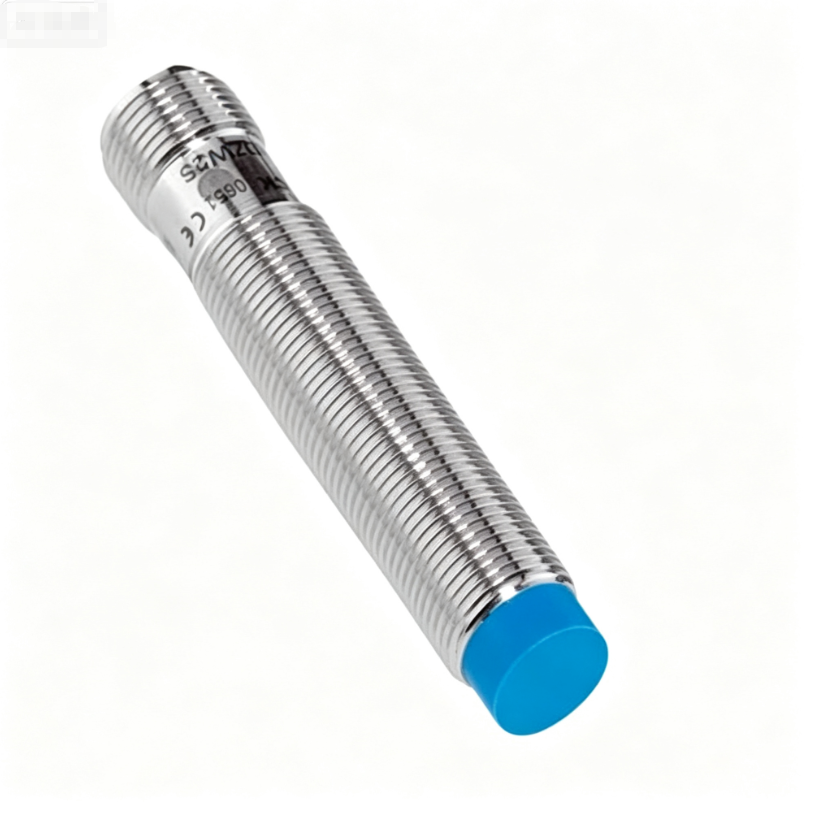

IME12-04BPSZC0K (Part No.1040763) is an inductive proximity sensor of SICK IME12 series. It is Ø12mm M12×1 compact short body flush mounting type, rated sensing distance Sn=4mm for metal object detection. It adopts PNP Normally Open DC 3-wire output, operating voltage DC10~30V, equipped with M12 4-pin male connector. The housing is made of nickel-plated brass with IP67 protection class and built-in visual status indicator. Supplied together with 2 pieces of mounting nuts for convenient installation. It is widely used for metal workpiece detection in machine tools, automation machinery and conveyor systems. Brand new original SICK inductive proximity sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | IME12-04BPSZC0K |
| Part No. | 1040763 |
| Product Type | Inductive Proximity Sensor |
| Series | IME12 |
| Detection principle | Inductive metal detection |
| Size | M12×1, Ø12mm, short body |
| Rated sensing distance Sn | 4 mm, flush mounting |
| Safe distance Sa | 3.24 mm |
| Output | PNP NO (Normally Open), DC 3-wire |
| Supply Voltage | DC10 ~ 30 V |
| Connector | M12 4-pin male connector |
| Housing Material | Nickel-plated brass |
| Protection Class | IP67 |
| Switching Frequency | 2000 Hz |
| Special Feature | Flush mounting, visual status indicator, short body, with 2pcs mounting nuts |
| Condition | New Original |
| Application | Metal workpiece detection, machine tools, conveyor systems, automation machinery |
| Net Weight | 0.040 KG |
| Gross Weight | 0.069 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
