1113186 WTV4FE-21311120ZZZ
Product Overview

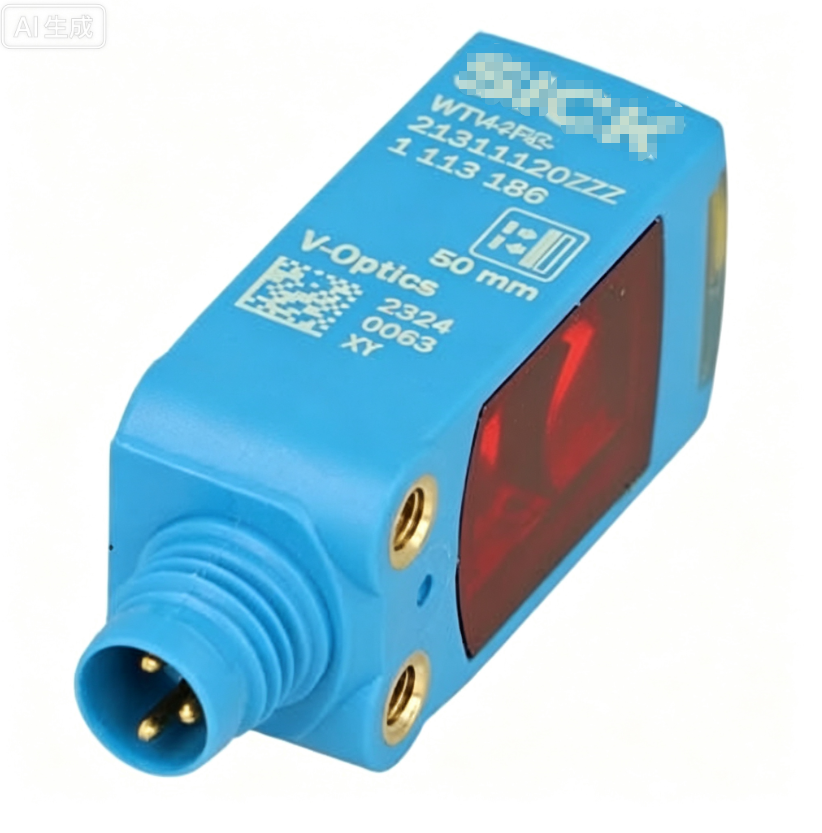

WTV4FE-21311120ZZZ (Part No.1113186) is a compact diffuse photoelectric sensor with background suppression from SICK WTV4FE series. It uses PinPoint 650nm visible red LED light source, sensing distance ranges from 20 mm to 1000 mm, no adjustment required. It adopts PNP output with switchable Light-ON / Dark-ON function, fitted with 2m fixed cable. Made of plastic housing with IP67 protection class and built-in visible LED indicator. Thanks to background suppression technology, it can detect target objects reliably and avoid false triggers caused by background interference. Brand new original SICK photoelectric sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | WTV4FE-21311120ZZZ |
| Part No. | 1113186 |
| Product Type | Photoelectric Sensor |
| Series | WTV4FE |
| Principle | Diffuse photoelectric sensor with background suppression |
| Light Source | PinPoint red LED, 650nm |
| Sensing Distance | 20 ~ 1000 mm |
| Adjustment | No adjustment |
| Output | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | DC10 ~ 30 V |
| Cable | 2m fixed cable |
| Protection Class | IP67 |
| Housing Material | Plastic |
| Switching Frequency | 500 Hz |
| Special Feature | Compact design, background suppression, visible LED indicator |
| Condition | New Original |
| Application | Object detection, packaging machinery, conveyor systems, material handling |
| Net Weight | 0.032 KG |
| Gross Weight | 0.059 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
