CSS-WBF114118AA10Z 1120167

属性名	属性值
Brand	SICK
Part No.	CSS-WBF114118AA10Z
SICK ID	1120167
Product Series	CSS
Product Type	Color Sensor
Sensing Distance	14 mm
Sensing Tolerance	±3 mm
Light Source	RGB LED
Spot Size	2 mm × 4 mm, vertical
Dimension	30 mm × 53 mm × 78.5 mm
Switching Frequency	3.3 kHz
Response Time	152 µs
Supply Voltage	10.8–28.8 V DC
Output Type	Push-pull, PNP/NPN
Output Channel	2 × hardware switching outputs
Interface	No IO-Link
Protection Class	IP67
Connection	M12, 5-pin male connector
Hou

INQUIRY

Product Details

Product Tags

Product Overview

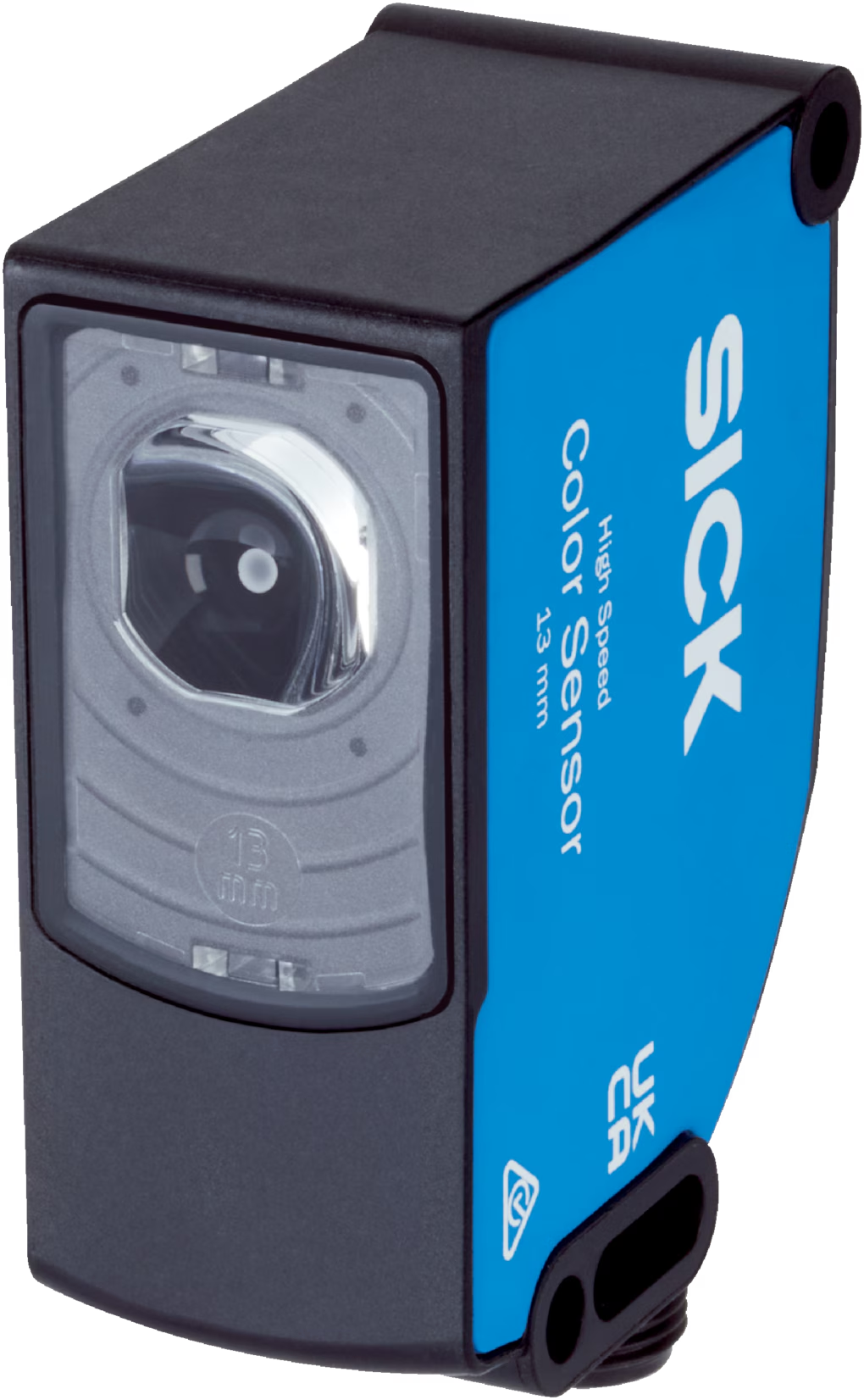

CSS-WBF114118AA10Z (1120167) is SICK CSS color sensor without IO-Link interface. 14 mm sensing distance, 2×4 mm vertical light spot, 3.3 kHz switching frequency. It supports single and multi-value teach-in, 2 push-pull PNP/NPN outputs. IP67 protection, M12 5-pin connector. Suitable for color mark detection and color identification in packaging, printing and general automation lines. New original genuine.

属性名	属性值
Brand	SICK
Part No.	CSS-WBF114118AA10Z
SICK ID	1120167
Product Series	CSS
Product Type	Color Sensor
Sensing Distance	14 mm
Sensing Tolerance	±3 mm
Light Source	RGB LED
Spot Size	2 mm × 4 mm, vertical
Dimension	30 mm × 53 mm × 78.5 mm
Switching Frequency	3.3 kHz
Response Time	152 µs
Supply Voltage	10.8–28.8 V DC
Output Type	Push-pull, PNP/NPN
Output Channel	2 × hardware switching outputs
Interface	No IO-Link
Protection Class	IP67
Connection	M12, 5-pin male connector
Housing Material	VISTAL® Plastic
Color Mode	C / C+I
Teach Mode	Single value / Multi value teach-in
Job Banks	4
Sensitivity Adjustment	Continuous 0–999
MTTFD	263.7 years
Origin	Germany
Warranty	1 Year
Certificate	RoHS, UL
Net Weight	0.09 kg
Gross Weight	0.12 kg
