CQT-22
Product Overview

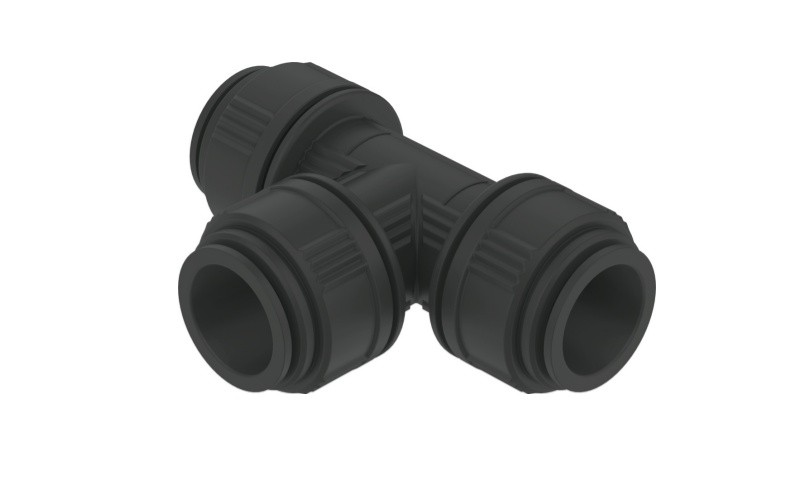

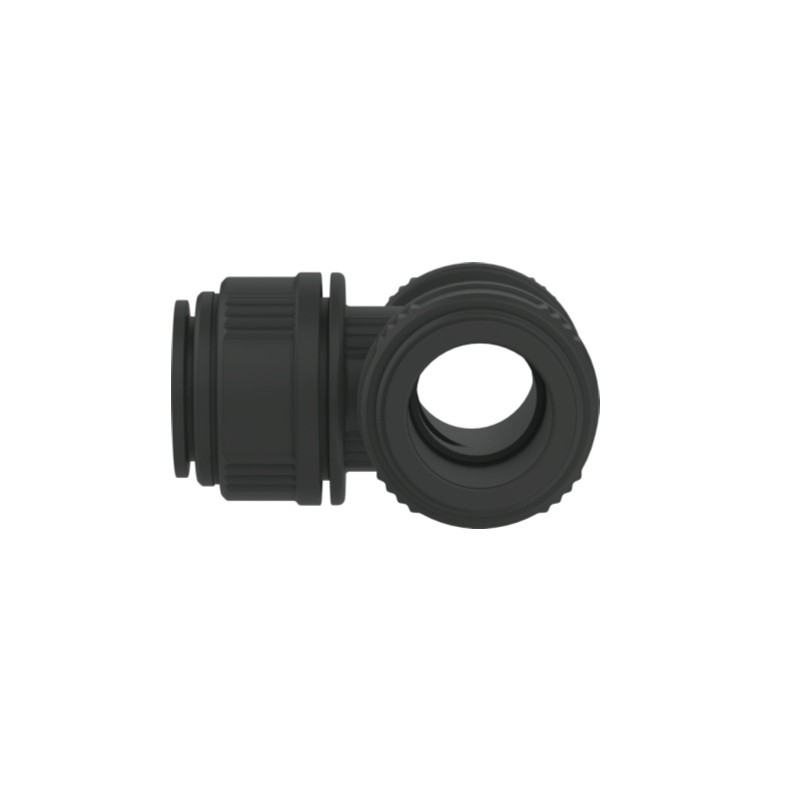

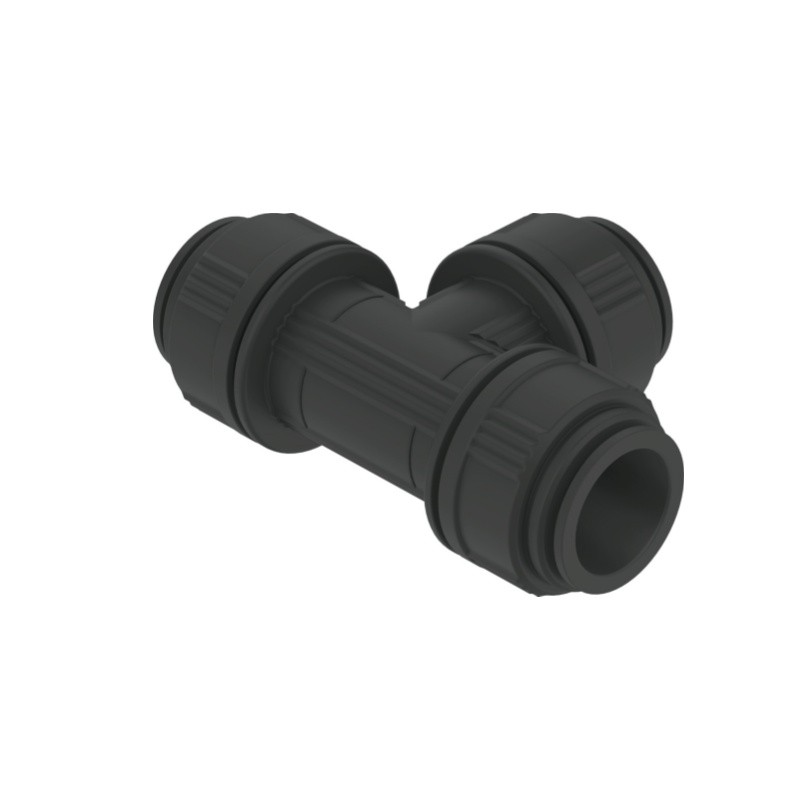

Festo CQT-22 (Part No.177690) is CQ series push-in T-connector, specially designed for large OD hard pneumatic tubing. It adopts push-pull quick connection principle, no tools required for assembly and disassembly, used to split one air line into two branches in pneumatic ring main pipeline system.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | CQT-22 |
| Part Number | 177690 |
| Product Type | Push-in T-connector / Tee Fitting |
| Series | CQ Series |
| Pneumatic Connection | 3 ports for tubing OD 22 mm |
| Nominal Size | 19.2 mm |
| Operating Pressure (full temp range) | -0.95 ~ 7 bar |
| Temperature-dependent Max Pressure | -0.95 ~ 15 bar |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-], lubricated air available |
| Ambient Temperature | -25 ~ +70 ℃ |
| Design Principle | Push-pull principle, tool-free assembly |
| Mounting Position | Any mounting position |
| Housing Material | POM |
| Release Ring | POM |
| Tube Claw | High-alloy stainless steel |
| Weight | 66 g |
| CRC Class | CRC 2 |
| LABS(PWIS) | VDMA24364 zone III |
| RoHS | Compliant |
| Original/New | New Original |
