MS6-LFR-1/2-D7-CRM-AS
Product Overview

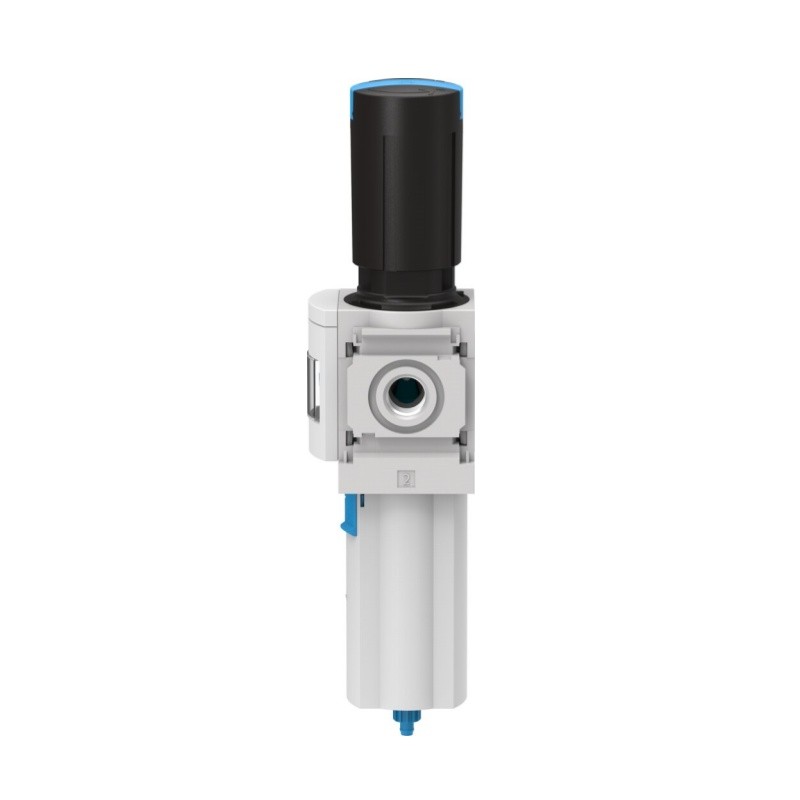

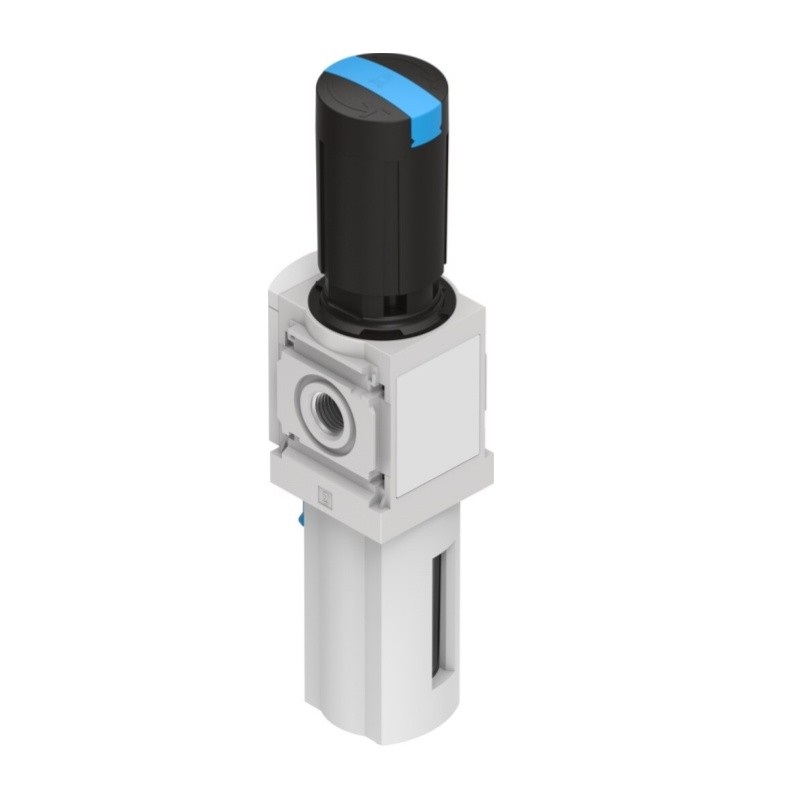

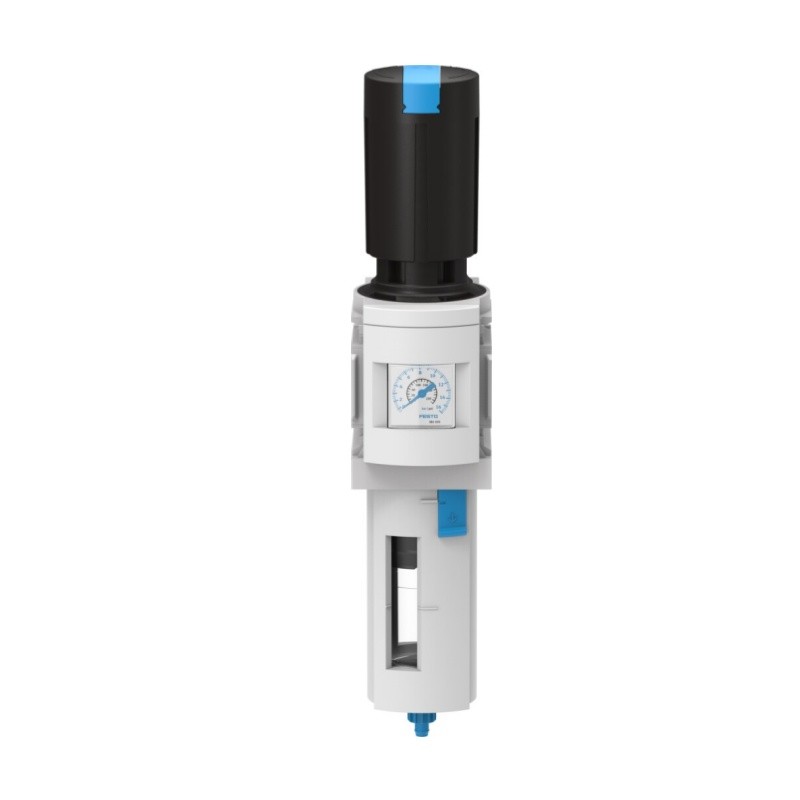

Festo MS6-LFR-1/2-D7-CRM-AS (Part No.529184) is MS6 series modular filter regulator, integrating air filtration and pressure regulation. It adopts 5μm fine filter element to remove fine solid particles and condensate, stabilizes output air pressure, equipped with built-in pressure gauge for real-time pressure monitoring. Modular design for combination with other MS6 air service components.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MS6-LFR-1/2-D7-CRM-AS |
| Part Number | 529184 |
| Product Type | Filter Regulator |
| Series | MS6 Series |
| Pneumatic Port | G1/2 (Inlet & Outlet) |
| Nominal Flow | 4200 l/min |
| Operating Pressure | 0.8 ~ 14 bar |
| Pressure Regulation Range | 0.5 ~ 12 bar |
| Max Pressure Hysteresis | 0.25 bar |
| Filtration Grade | 5 µm |
| Condensate Drain | Manual rotary drain |
| Max Condensate Volume | 44 ml |
| Medium | Compressed air ISO 8573-1:2010 [6:4:4], inert gas |
| Ambient Temperature | -10 ~ +60 ℃ |
| Medium Temperature | -10 ~ +60 ℃ |
| Mounting Position | Vertical ±5° |
| Function | Secondary exhaust / return flow function |
| Adjustment Knob | Rotary knob, lockable with accessory |
| Equipped | Integrated pressure gauge, plastic bowl guard |
| Housing Material | Die-cast aluminium |
| Bowl Material | PC |
| Filter Element | PE |
| Seal Material | NBR |
| Weight | 560 g |
| CRC Class | CRC 2 |
| LABS(PWIS) | VDMA24364-B1/B2-L |
| Certification | CE, UKCA |
| RoHS | Compliant |
| Original/New | New Original |
