CPE10-M1BH-5LS-QS-4
Product Overview

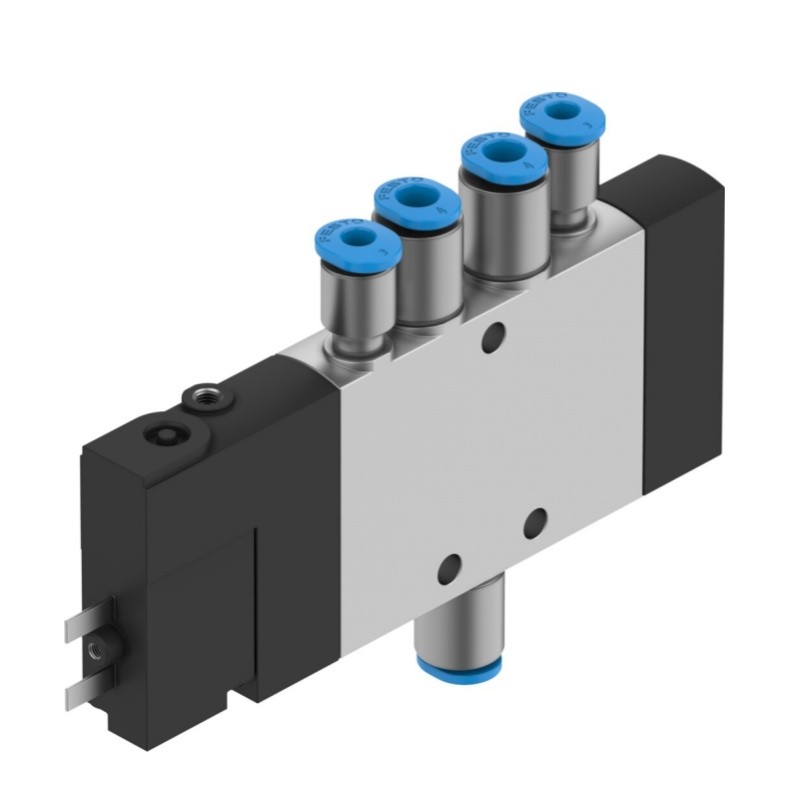

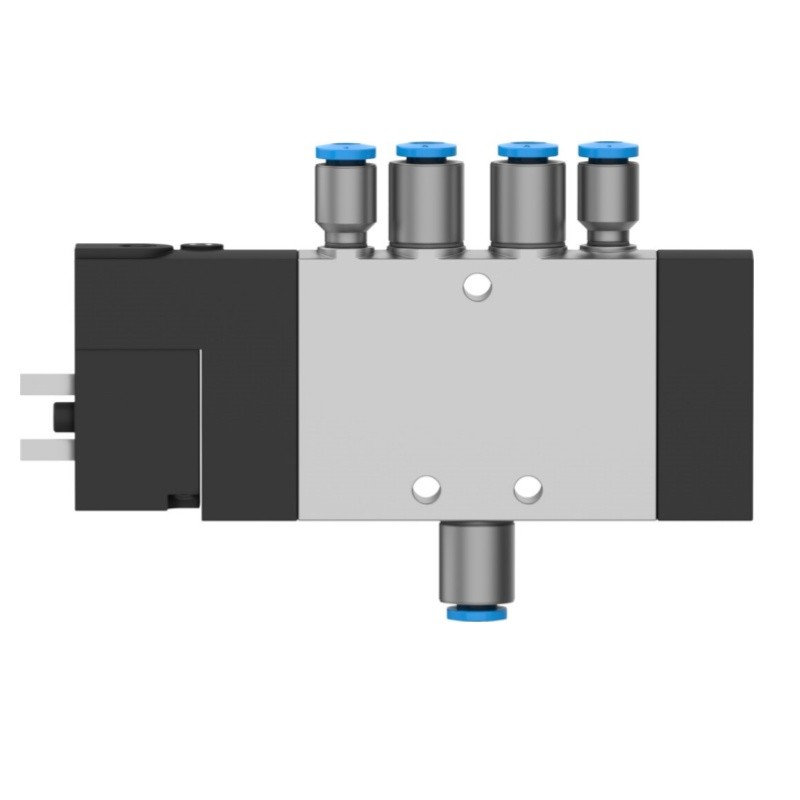

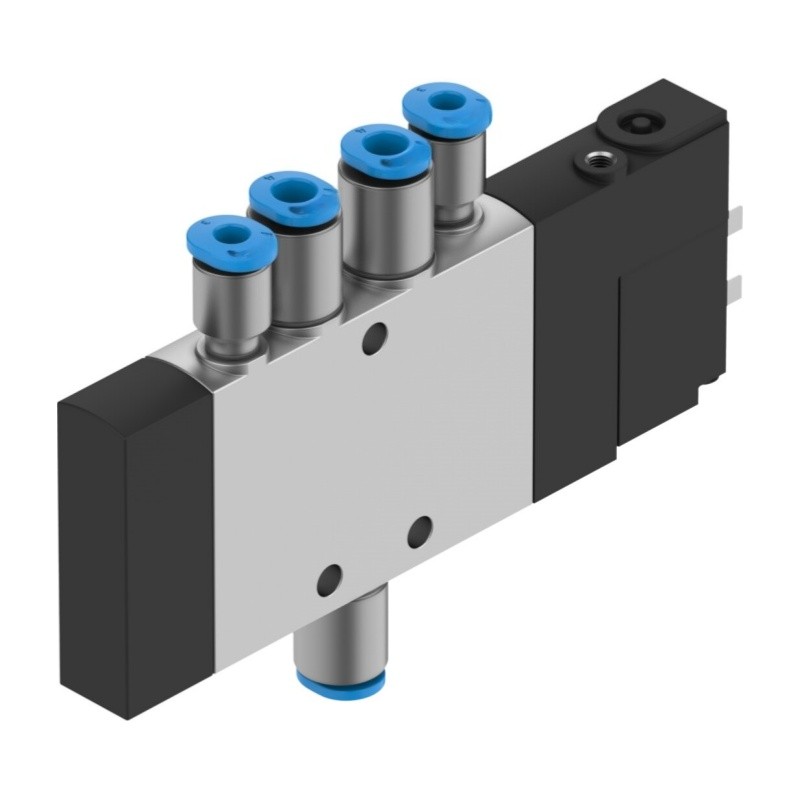

Festo CPE10-M1BH-5LS-QS-4 (Part No.196885) belongs to CPE10 compact solenoid valve series. It is a 5/2-way monostable pilot operated piston gate valve with soft sealing, fitted with QS-4 push-in quick connector for 4mm outer diameter air tubing. Compact 10mm width design for space-saving assembly in small automation equipment.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | CPE10-M1BH-5LS-QS-4 |
| Part Number | 196885 |
| Product Type | Solenoid Valve |
| Series | CPE10 Series |
| Valve Function | 5/2-way, monostable |
| Valve Width | 10 mm |
| Nominal Size | 4 mm |
| Rated Flow | 180 l/min |
| Operating Voltage | 24V DC |
| Coil Power | 1.28 W |
| Operating Pressure | -0.9 ~ 10 bar |
| Pilot Pressure | 3 ~ 8 bar |
| Pneumatic Connection | QS-4 push-in, for 4mm OD tubing |
| Control Type | Pilot operated |
| Pilot Air Supply | Internal pilot air |
| Reset Type | Pneumatic spring |
| Exhaust | Exhaust with flow control option |
| Sealing Type | Soft seal, piston gate valve |
| Manual Override | Non-detenting, detenting via accessory |
| Protection Class | IP65 (with matching plug socket) |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -5 ~ +50 ℃ |
| Medium Temperature | -5 ~ +50 ℃ |
| Mounting | Any mounting position |
| Housing Material | Die-cast aluminium, plastic |
| Seal Material | NBR |
| CRC Class | CRC 2 |
| LABS(PWIS) | VDMA24364-B1/B2-L |
| Certification | cULus Recognized, CE, UKCA |
| RoHS | Compliant |
| Original/New | New Original |
