543416 VABA-S6-1-X1
Product Overview
Item No: 543416 Model: VABA-S6-1-X1 Brand: Festo Type: Supply Air Plate, VABA Series Valve Terminal Accessory

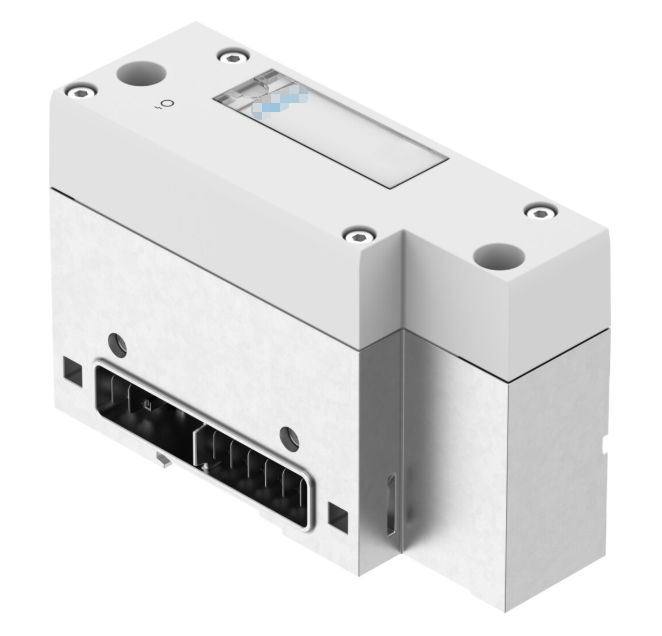

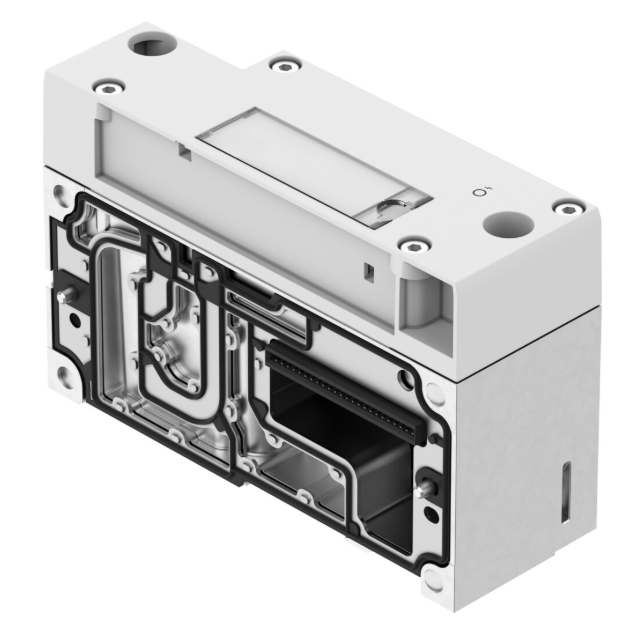

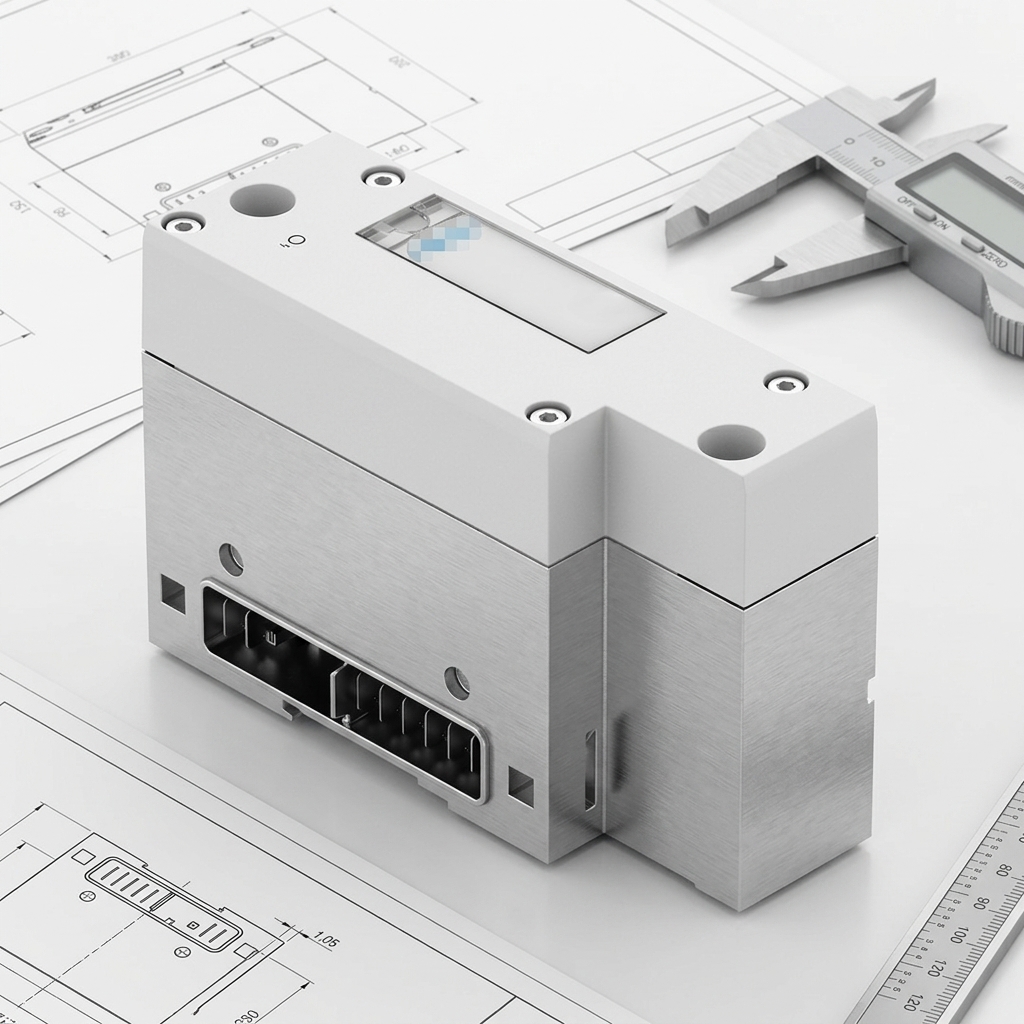

Festo VABA-S6-1-X1 supply air plate, part number 543416, belongs to VABA series valve terminal accessories. This S6 size manifold plate is specially designed for VSVA valve island assembly. It features G1/4 air supply port, used for centralized air distribution of the valve manifold. The body is die-cast aluminium alloy with NBR sealing, good pressure resistance and sealing performance. Working medium is filtered compressed air, operating pressure range -0.9~10 bar. Easy to mount on valve manifold, widely used in automated equipment to build pneumatic valve bank and realize stable air supply for multi-valve combination.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | VABA-S6-1-X1 |
| Part No. | 543416 |
| Product Series | VABA |
| Product Type | Supply Air Plate, Sub-base accessory |
| Product Function | Air supply manifold plate for valve terminal |
| Valve Terminal Size: | S6 |
| Pneumatic Connection | G1/4 |
| Operating Pressure | -0.9 ~ 10 bar |
| Operating Medium | Filtered compressed air, ISO 8573-1 [7:4:4] |
| Ambient Temperature | -10 ℃ ~ +50 ℃ |
| Housing Material | Die-cast aluminium alloy |
| Seal Material | NBR |
| Mounting | Mounted on valve manifold |
| Net Weight | 115 g/pc |
| RoHS Compliance | Yes |
| Feature | Supply air sub-base plate, for VSVA valve island assembly |
| Application | Pneumatic valve terminal manifold, automation valve bank assembly |
