P250F
Product Overview

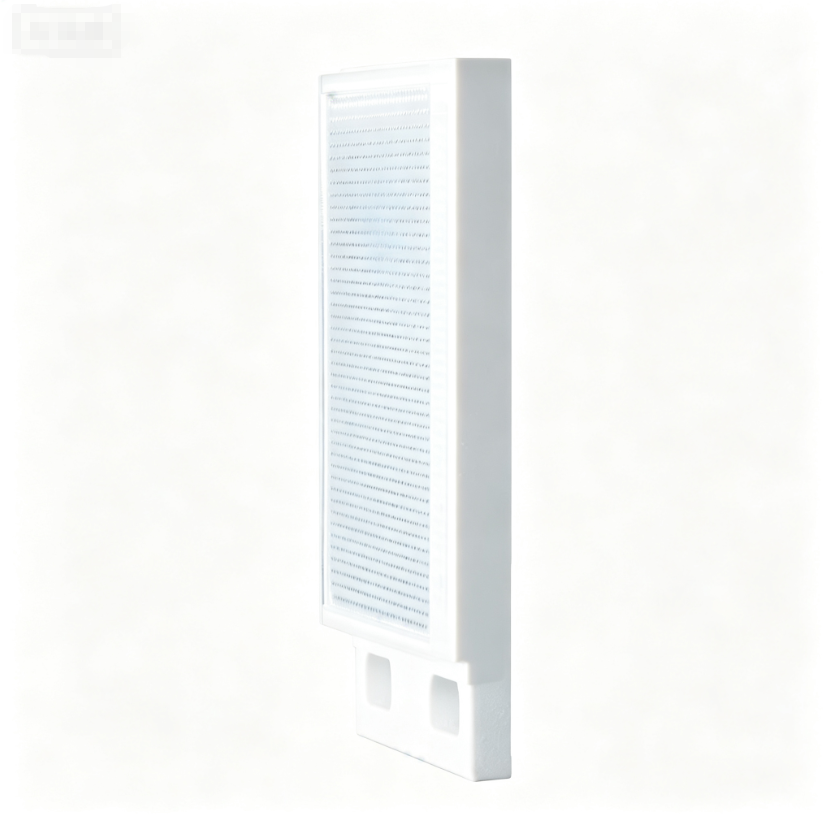

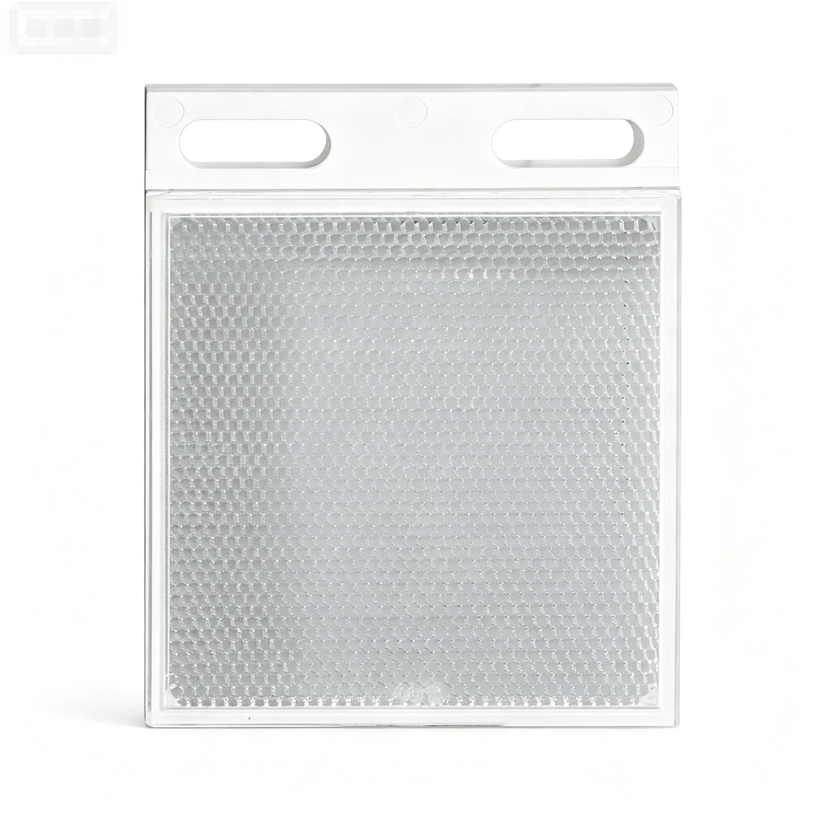

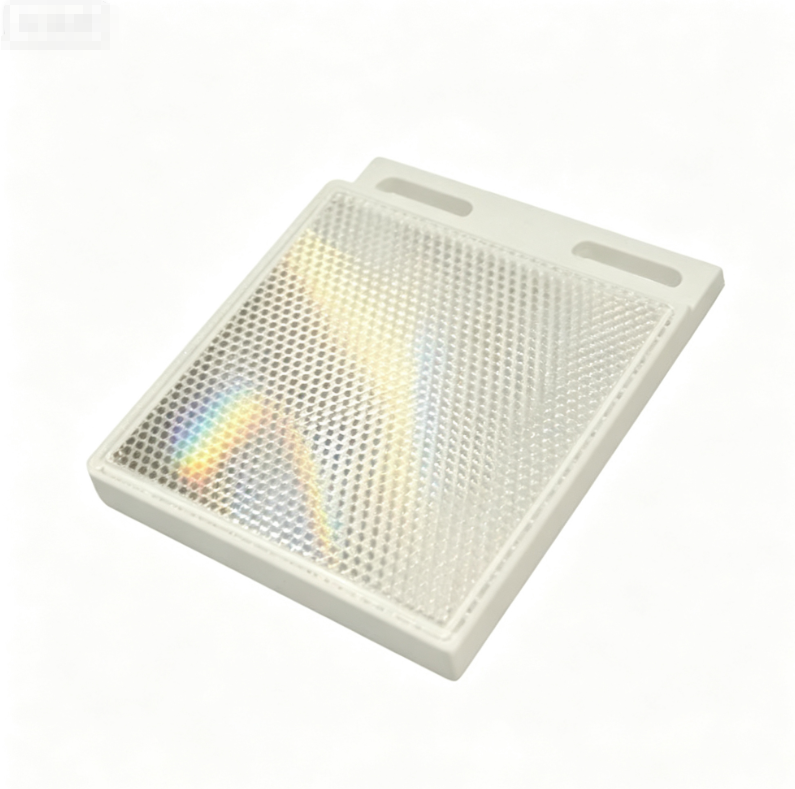

SICK P250F (Part No.5308843) is Fine Triple retro-reflective reflector for SICK laser photoelectric sensors. Rectangular shape with two mounting holes, dimension 52mm × 62mm, effective reflective area 47mm × 47mm, made of PMMA/ABS material. Fine triple corner cube structure provides excellent performance for tiny laser spot, stable return light even when laser spot shifts on reflector surface. Operating temperature range -30℃ ~ +65℃. It is optimized for laser retro-reflective sensors, and also works for LED photoelectric sensors to detect transparent objects such as plastic bottles and films. Large reflective surface supports longer sensing distance. Widely used as accessory for conveyor, production line and logistics sorting detection.
| Attribute Name | Value |
|---|---|
| Brand | SICK |
| Model | P250F |
| Part No. | 5308843 |
| Series | Fine Triple Reflector |
| Type | Fine Triple Retro-reflective Reflector for Laser Sensors |
| Shape | Rectangular, 2-hole screw mounting |
| Dimension | 52mm × 62mm |
| Effective Reflective Area | 47mm × 47mm |
| Material | PMMA/ABS |
| Operating Temp | -30℃ ~ +65℃ |
| Reflection Principle | Fine triple corner cube retroreflection, stable signal even with light spot offset |
| Compatible Sensor | SICK retro-reflective laser photoelectric sensors, also for transparent object detection with LED photoelectric sensors |
| Net Weight | 0.06kg |
| Gross Weight | 0.12kg |
| Origin | Germany |
| Warranty | 1 year |
| Condition | New Original |
| Application | Large reflector for laser photoelectric sensors, transparent bottle & film detection, logistics sorting, long-range laser detection, machine tool and automation line position sensing |
