PL40A 1012720

Attribute Name	Value
Brand	SICK
Model	PL40A
Part No.	1012720
Series	PL Series Standard Retro-reflective Reflector
Type	Corner Cube Retro-reflective Reflector
Shape	Rectangular, 2-hole screw mounting
Dimension	40mm × 60mm
Effective Reflective Area	37mm × 56mm
Material	PMMA/ABS
Operating Temp	-30℃ ~ +65℃
Reflection Principle	Standard corner cube retroreflection, for LED retro-reflective photoelectric sensors
Compatible Sensor	SICK W4, W9, W12, W140 series retro-reflective photoelectric

INQUIRY

Product Details

Product Tags

Product Overview

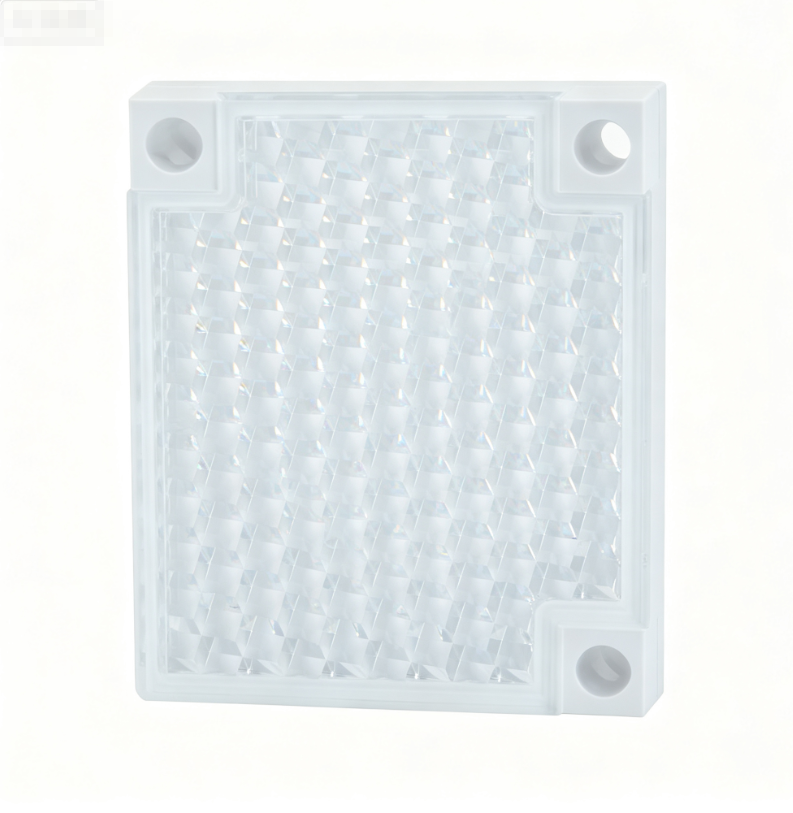

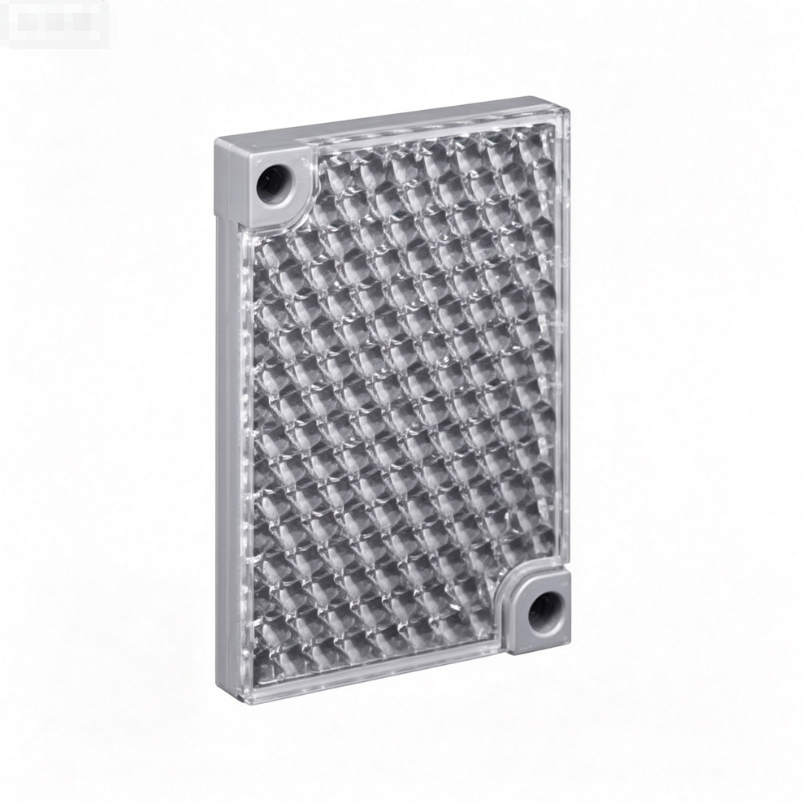

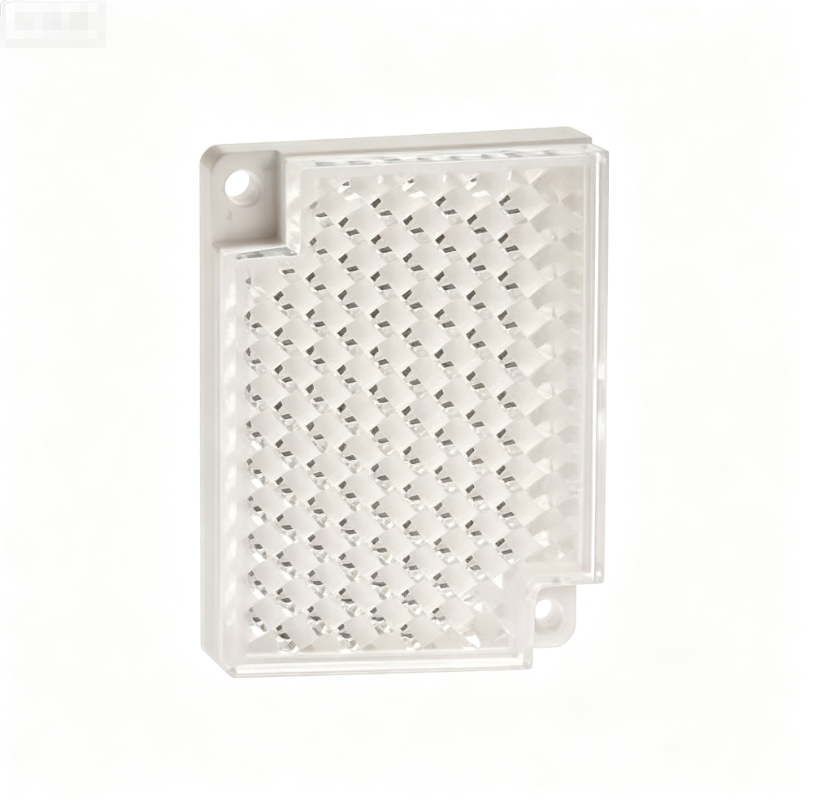

SICK PL40A (Part No.1012720) is standard corner cube retro-reflective reflector for SICK photoelectric sensors. Rectangular shape with two mounting holes, dimension 40mm × 60mm, effective reflective area 37mm × 56mm, PMMA/ABS material. Adopts standard corner cube retroreflection principle, sends light beam back to photoelectric sensor emitter. Operating temperature -30℃ ~ +65℃. Larger reflective area compared to PL20A, suitable for longer sensing distance. Matches SICK W4, W9, W12, W140 retro-reflective photoelectric sensors. Widely used as accessory for conveyor, production line and logistics sorting detection.

Attribute Name	Value
Brand	SICK
Model	PL40A
Part No.	1012720
Series	PL Series Standard Retro-reflective Reflector
Type	Corner Cube Retro-reflective Reflector
Shape	Rectangular, 2-hole screw mounting
Dimension	40mm × 60mm
Effective Reflective Area	37mm × 56mm
Material	PMMA/ABS
Operating Temp	-30℃ ~ +65℃
Reflection Principle	Standard corner cube retroreflection, for LED retro-reflective photoelectric sensors
Compatible Sensor	SICK W4, W9, W12, W140 series retro-reflective photoelectric switches
Net Weight	0.04kg
Gross Weight	0.10kg
Origin	Germany
Warranty	1 year
Condition	New Original
Application	Matching reflector for retro-reflective photoelectric sensors, conveyor, logistics sorting, machine tool, production line position detection, larger reflective area for long-distance sensing
