CSX-WNF1142252ZZZZ 1120166
Product Overview

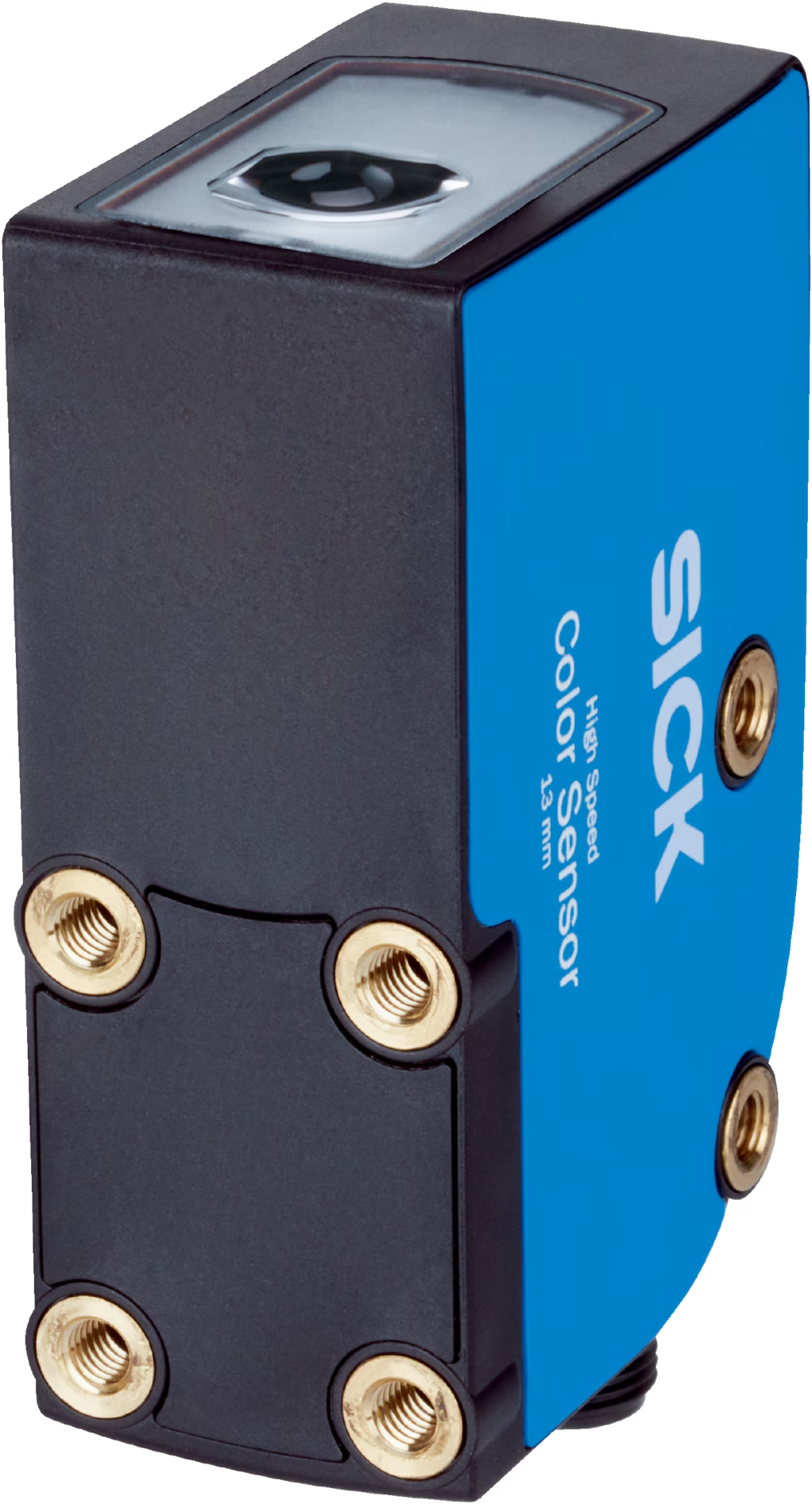

CSX-WNF1142252ZZZZ (1120166) is SICK CSS/CSX High Speed color sensor without IO-Link, with 4-wire flying leads. 14 mm sensing distance, 2×4 mm vertical light spot, 13.8 kHz high switching frequency. It supports single and multi-value teach-in, 2 NPN outputs. IP67 protection. Suitable for high-speed color mark detection and color sorting in printing, packaging and automated production lines. New original genuine.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Part No. | CSX-WNF1142252ZZZZ |
| SICK ID | 1120166 |
| Product Series | CSS/CSX High Speed |
| Product Type | Color Sensor |
| Sensing Distance | 14 mm |
| Sensing Tolerance | ±3 mm |
| Light Source | RGB LED |
| Spot Size | 2 mm × 4 mm, vertical |
| Dimension | 30 mm × 53 mm × 78.5 mm |
| Switching Frequency | 13.8 kHz |
| Response Time | 36 µs |
| Supply Voltage | 10.8–28.8 V DC |
| Output Type | NPN |
| Output Channel | 2 × hardware switching outputs |
| Interface | No IO-Link |
| Protection Class | IP67 |
| Connection | 4-wire cable with flying leads |
| Housing Material | VISTAL® Plastic |
| Color Mode | C / C+I |
| Teach Mode | Single value / Multi value teach-in |
| Job Banks | 4 |
| Sensitivity Adjustment | Continuous 0–999 |
| MTTFD | 263.7 years |
| Origin | Germany |
| Warranty | 1 Year |
| Certificate | RoHS, UL |
| Net Weight | 0.09 kg |
| Gross Weight | 0.12 kg |
