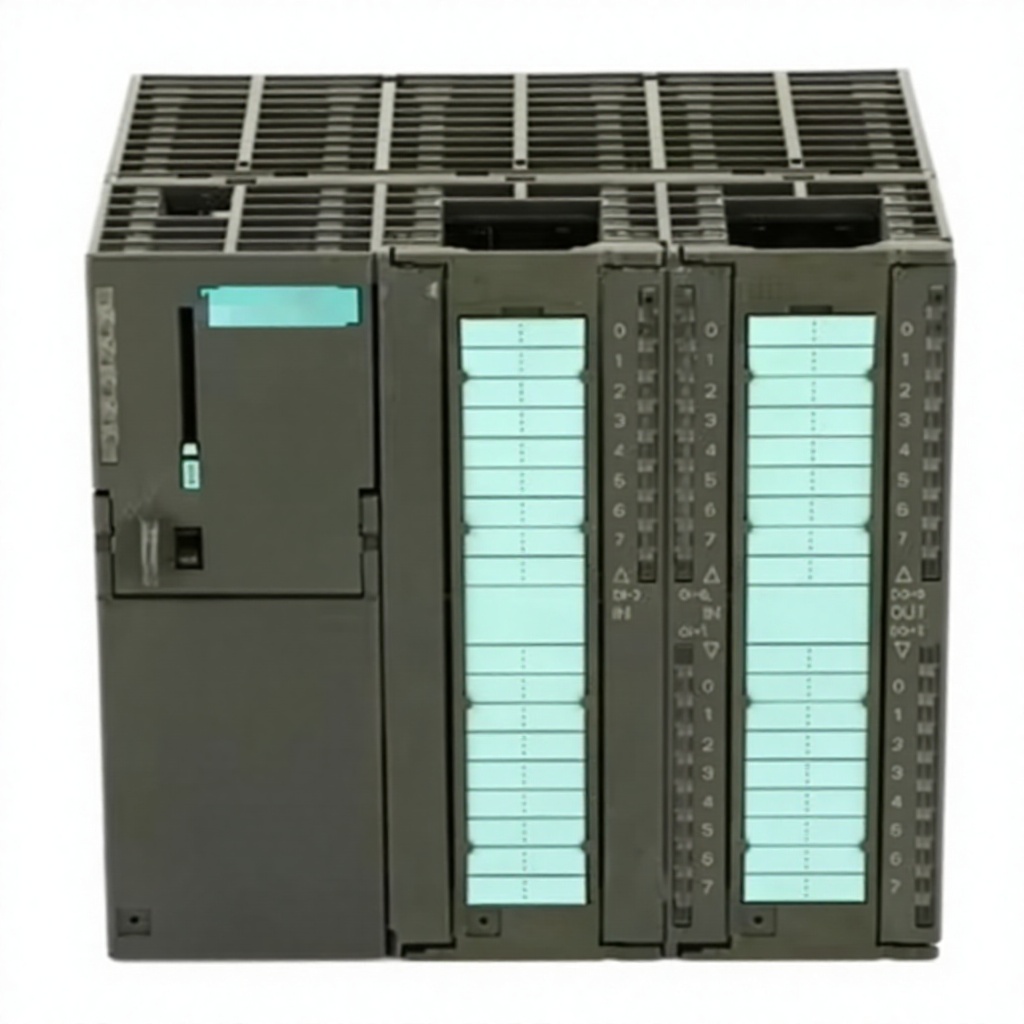

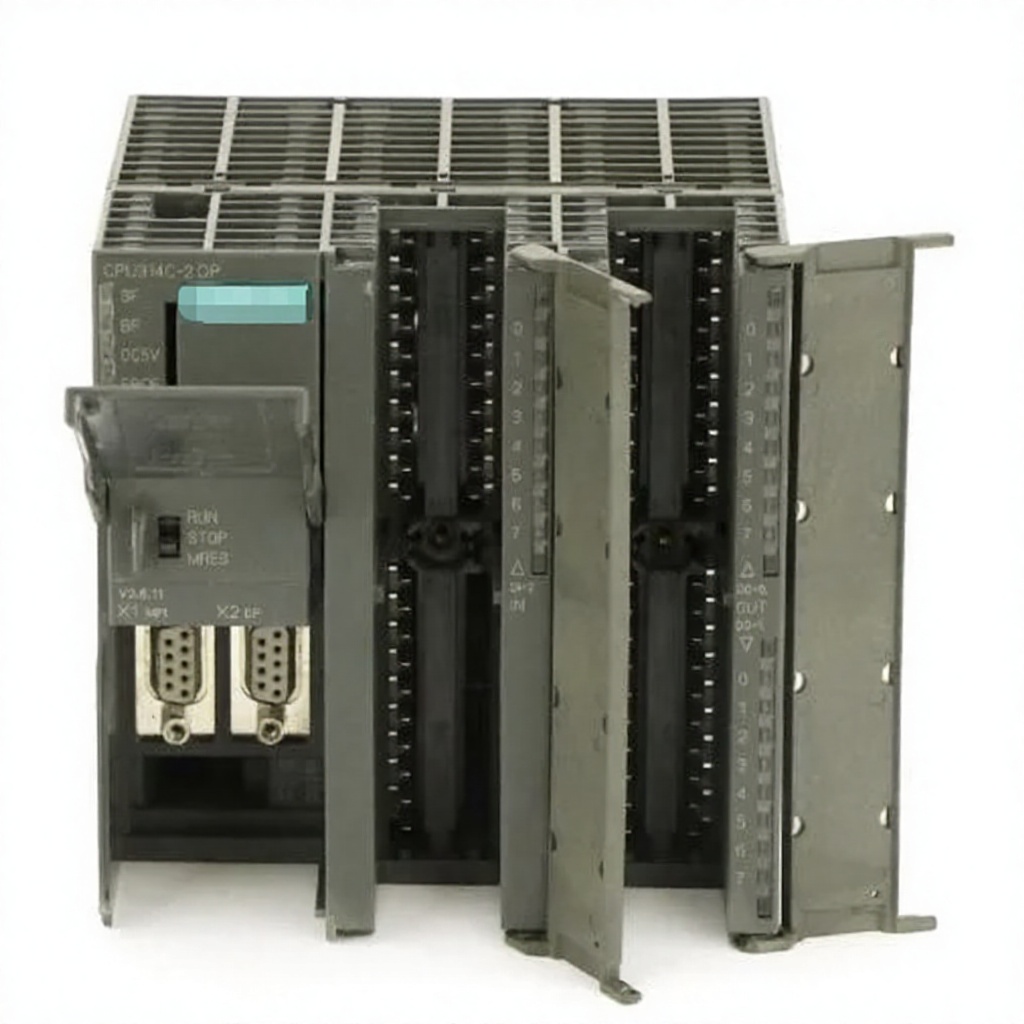

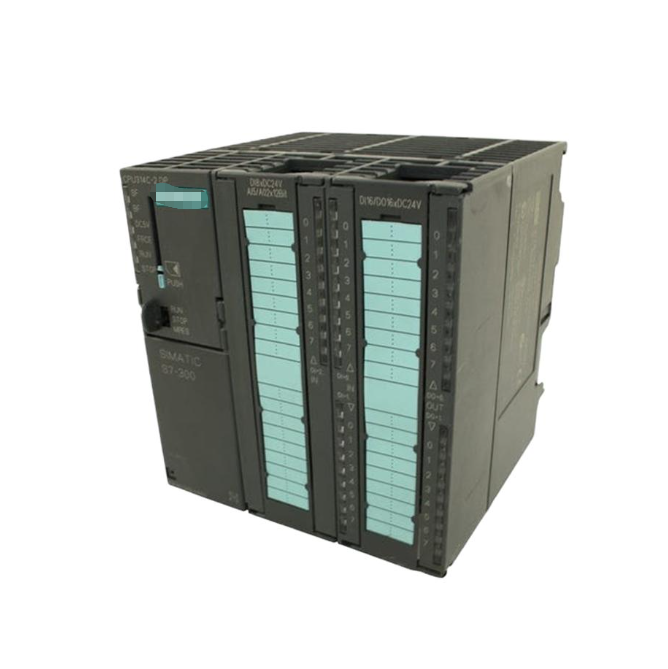

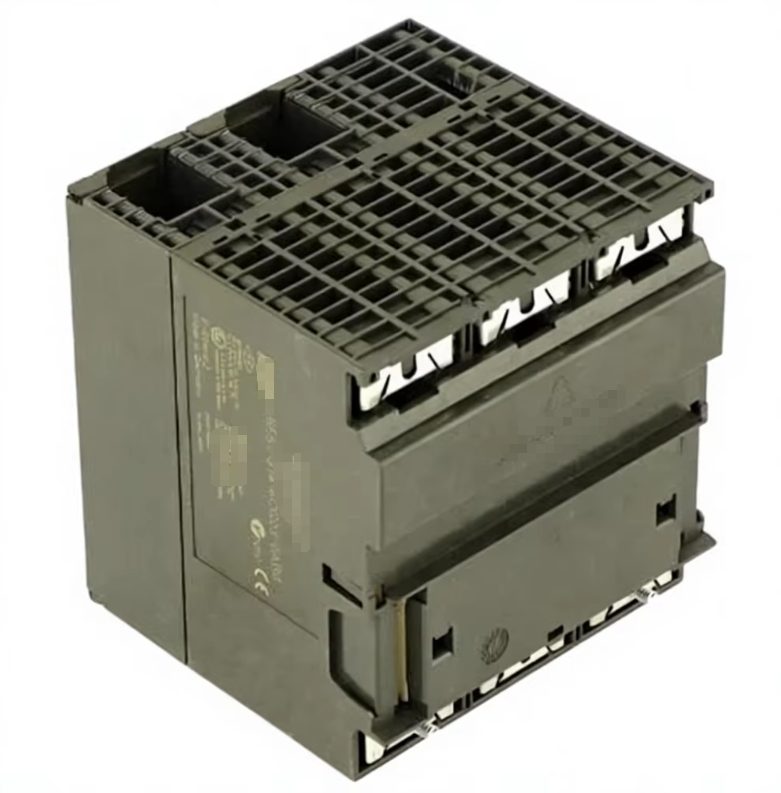

6ES7314-6CG03-0AB0

Attribute Name	Value
Brand	Siemens
Model	6ES7314-6CG03-0AB0
Series	SIMATIC S7-300, CPU314C-2DP Compact CPU
Type	Compact PLC Central Processing Unit
Memory	Work memory 192KB, program saved on MMC card
Built-in I/O	24DI / 16DO; 4AI / 2AO
Interface	1 × Integrated Profibus-DP port
Execution Speed	Boolean:0.1μs, Integer:0.2μs, Floating point:2μs
Max IO Address	1024DI /1024DO,1024AI /1024AO
Onboard Functions	High-speed counter, pulse output, PWM, frequency measurement, PID control
Power Sup

INQUIRY

Product Details

Product Tags

Product Overview

Siemens 6ES7314-6CG03-0AB0 is SIMATIC S7-300 CPU314C-2DP compact PLC CPU. It has 192KB work memory, program stored on MMC memory card. Onboard integrated I/O: 24DI/16DO digital, 4AI/2AO analog. Equipped with built-in Profibus-DP interface, can act as DP master/slave. It integrates high-speed counter, pulse output, PWM, frequency measurement and PID control function, suitable for machine automation without extra special modules. DC24V powered, DIN rail mounted on S7-300 rack. This model is discontinued and supplied as spare part for equipment maintenance.

Attribute Name	Value
Brand	Siemens
Model	6ES7314-6CG03-0AB0
Series	SIMATIC S7-300, CPU314C-2DP Compact CPU
Type	Compact PLC Central Processing Unit
Memory	Work memory 192KB, program saved on MMC card
Built-in I/O	24DI / 16DO; 4AI / 2AO
Interface	1 × Integrated Profibus-DP port
Execution Speed	Boolean:0.1μs, Integer:0.2μs, Floating point:2μs
Max IO Address	1024DI /1024DO,1024AI /1024AO
Onboard Functions	High-speed counter, pulse output, PWM, frequency measurement, PID control
Power Supply	DC24V
Mounting	DIN rail, S7-300 backplane
Origin	Germany
Warranty	1 year
Condition	New Original, discontinued spare part
Net Weight	0.40kg
Gross Weight	0.58kg
