DSBG-160-200-PPVA-N3T4

属性名称	属性值
Brand	Festo
Model	DSBG-160-200-PPVA-N3T4
Part No	2029469（Base）
Product Type	Pneumatic Cylinder
Cylinder Type	ISO 15552 Double-acting Cylinder
Bore	160 mm
Stroke	200 mm
Cushion	PPVA Pneumatic adjustable cushion at both ends
Piston Rod Thread	M36×2
Operating Pressure	0.06 ~ 1.0 MPa (0.6 ~10 bar)
Theoretical Force(6bar)	Advance:12064 N, Retract:11310 N
Medium	Compressed air ISO 8573-1 [7:4:4]
Ambient Temperature	-20 ~ +150 ℃（T4 high temp seal）
Mounting	Any mounting position

INQUIRY

Product Details

Product Tags

Product Description

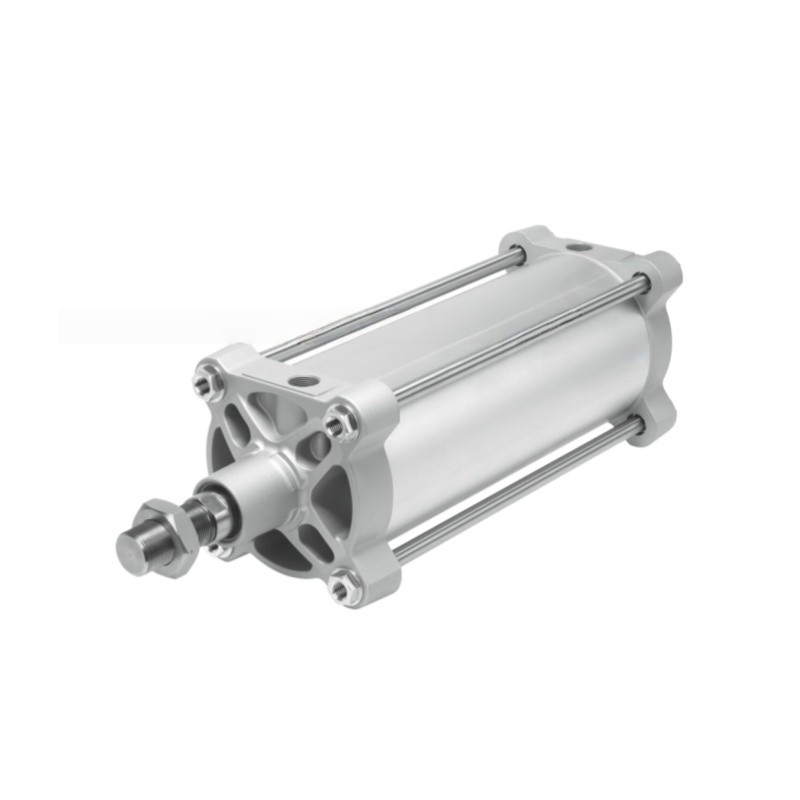

Festo DSBG-160-200-PPVA-N3T4 belongs to DSBG series ISO15552 standard double acting pneumatic cylinder. Bore 160mm, stroke 200mm, fitted with PPVA adjustable pneumatic cushion at both ends to reduce impact. This variant adopts T4 high temperature sealing, working temperature range up to 150℃, suitable for high temperature working environment.

Tie rod heavy-duty structure, M36×2 external piston rod thread. Working pressure 0.06~1.0 MPa. Support magnetic proximity switch for position detection. Any mounting position available. CRC2 corrosion resistance, stable performance for heavy load industrial equipment.

Item	Specification
Brand	Festo
Model	DSBG-160-200-PPVA-N3T4
Base Part Number	2029469
Type	Double acting pneumatic cylinder
Standard	ISO 15552
Bore	160 mm
Stroke	200 mm
Cushion	PPVA, adjustable both ends
Piston Rod Thread	M36×2
Operating Pressure	0.06 ~1.0 MPa
Theoretical Force (6bar)	Advance:12064N, Retract:11310N
Medium	Compressed air ISO 8573-1 [7:4:4]
Ambient Temp	-20 ~ +150 ℃
Corrosion Class	CRC 2
Mounting	Any position
