DSBG-160-200-PPVA-N3T4
Product Description

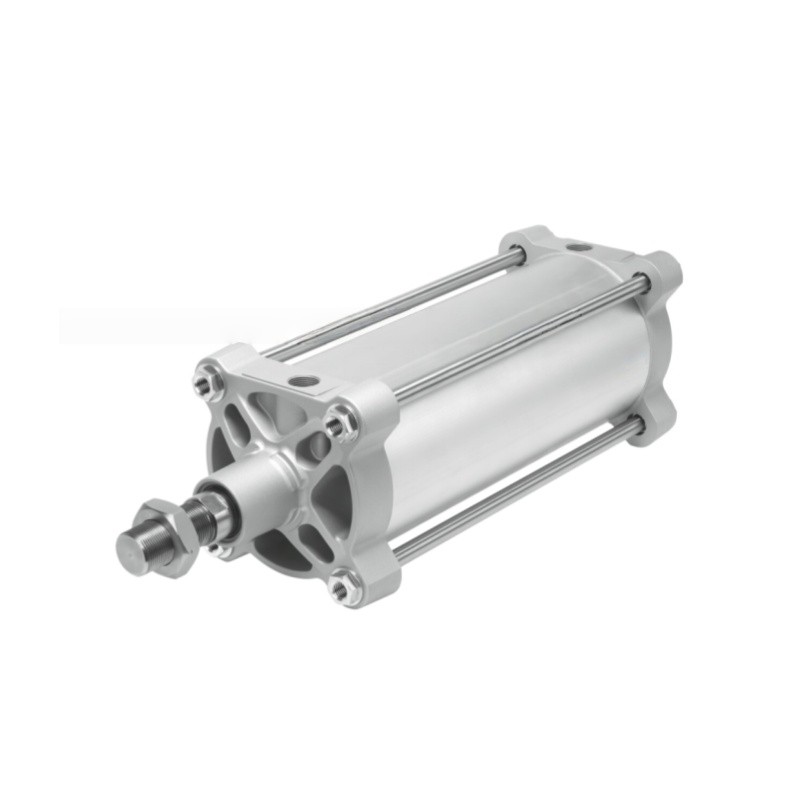

Festo DSBG-160-200-PPVA-N3T4 belongs to DSBG series ISO15552 standard double acting pneumatic cylinder. Bore 160mm, stroke 200mm, fitted with PPVA adjustable pneumatic cushion at both ends to reduce impact. This variant adopts T4 high temperature sealing, working temperature range up to 150℃, suitable for high temperature working environment.
Tie rod heavy-duty structure, M36×2 external piston rod thread. Working pressure 0.06~1.0 MPa. Support magnetic proximity switch for position detection. Any mounting position available. CRC2 corrosion resistance, stable performance for heavy load industrial equipment.
| Item | Specification |
|---|---|
| Brand | Festo |
| Model | DSBG-160-200-PPVA-N3T4 |
| Base Part Number | 2029469 |
| Type | Double acting pneumatic cylinder |
| Standard | ISO 15552 |
| Bore | 160 mm |
| Stroke | 200 mm |
| Cushion | PPVA, adjustable both ends |
| Piston Rod Thread | M36×2 |
| Operating Pressure | 0.06 ~1.0 MPa |
| Theoretical Force (6bar) | Advance:12064N, Retract:11310N |
| Medium | Compressed air ISO 8573-1 [7:4:4] |
| Ambient Temp | -20 ~ +150 ℃ |
| Corrosion Class | CRC 2 |
| Mounting | Any position |
