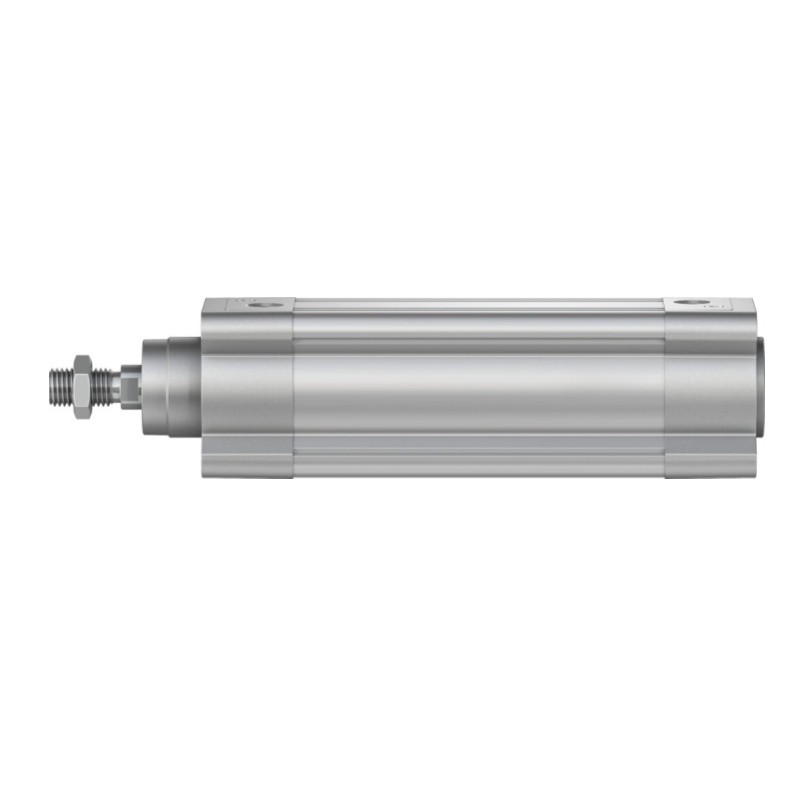

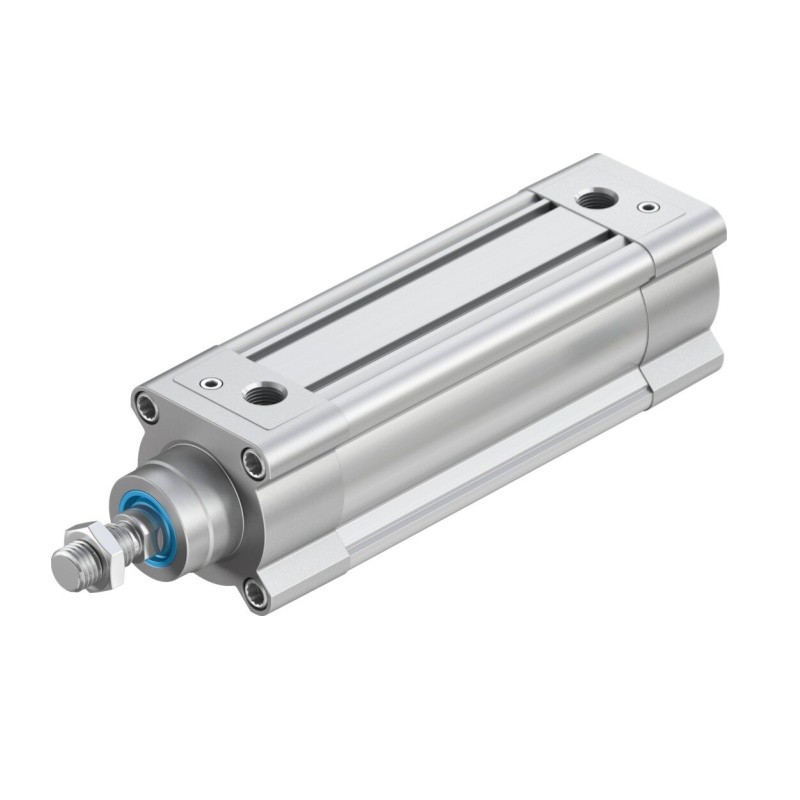

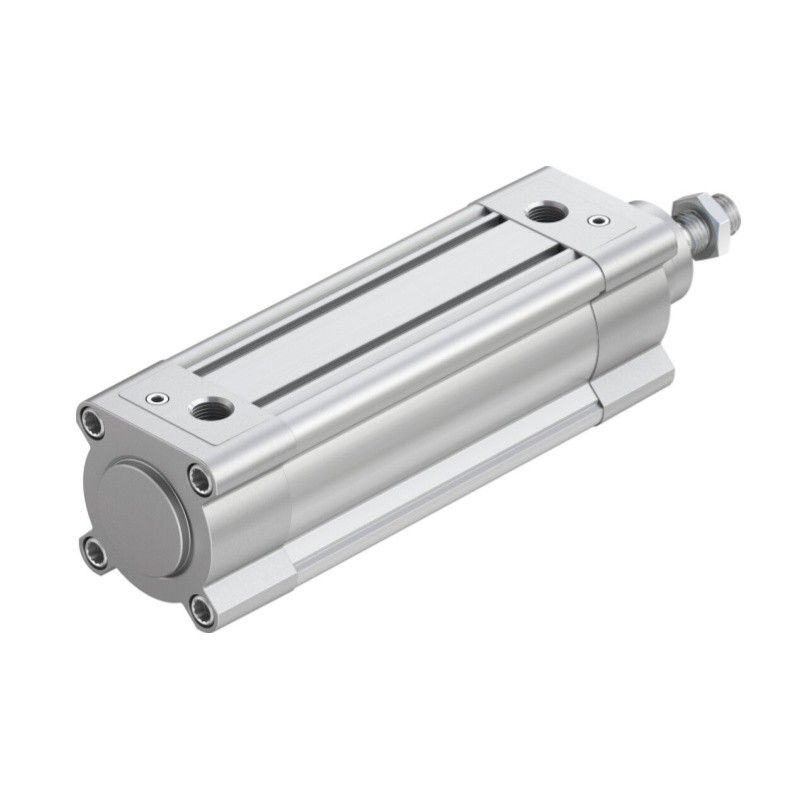

DSBC-63-125-PPVA-N3
Product Overview
FESTO DSBC-63-125-PPVA-N3 belongs to DSBC ISO15552 standard profile cylinder series. Double acting design, bore 63mm, stroke 125mm, piston rod M16×1.5 male thread. PPV adjustable pneumatic cushioning on both ends for end position deceleration, cushion length 22mm. N3 variant integrated piston magnet for proximity switch position feedback. Two sensor grooves on cylinder barrel, convenient for sensor installation. Hard anodized aluminium barrel, TPE-U(PU) seals, LABS(PWIS) compliant. Simple disassembly and maintenance, widely used for linear push and pull movement in lithium battery, packaging and automated assembly pneumatic systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | DSBC-63-125-PPVA-N3 |
| Order No. | 1383583 |
| Product Series | DSBC |
| Product Type | ISO15552 Standard Profile Pneumatic Cylinder |
| Action Type | Double-acting |
| Piston Diameter | 63 mm |
| Stroke | 125 mm |
| Standard | ISO 15552 |
| Piston Rod Thread | M16×1.5 Male thread |
| Pneumatic Port | G3/8 |
| Cushioning | PPV, adjustable pneumatic cushion on both ends, cushion length 22mm |
| Variant | N3: Built-in piston magnet for proximity sensor position detection |
| Operating Pressure | 0.4 ~ 12 bar |
| Theoretical Force @6bar | Advance:1870 N, Return:1682 N |
| Impact Energy at End Positions | 1.3 J |
| Ambient Temperature | -20 ~ +80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], lubricated air optional |
| Barrel Material | Wrought aluminium alloy, hard anodized |
| End Cap | Die-cast aluminium |
| Piston Rod | High-alloy steel |
| Seal Material | TPE-U(PU) |
| Feature | Two sensor grooves, LABS(PWIS) compliant VDMA24364-B1/B2-L, easy maintenance, suitable for lithium battery production |
| Mounting | Any mounting position, install via cylinder accessories |
| Corrosion Resistance Class | CRC 2 |
| Weight | 2515 g |
| Certificate | CE, RoHS |
| Origin | Germany |
| Condition | New Original |
