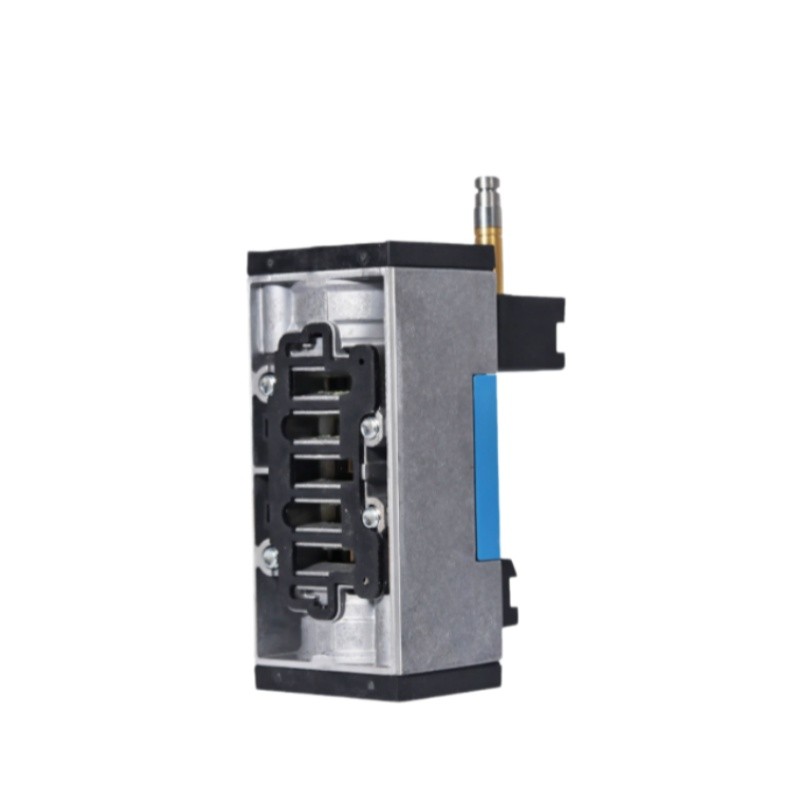

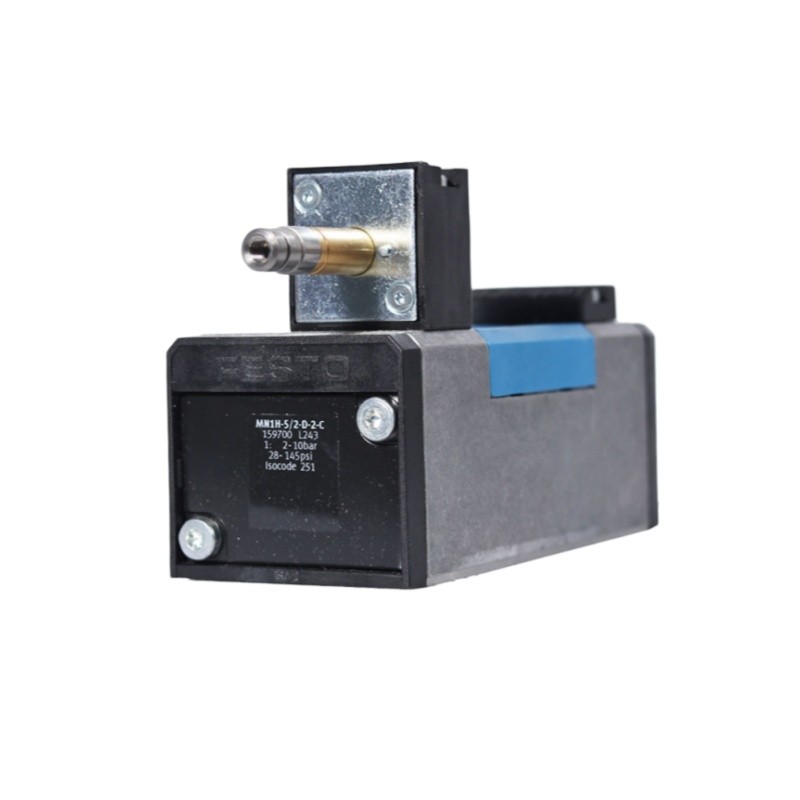

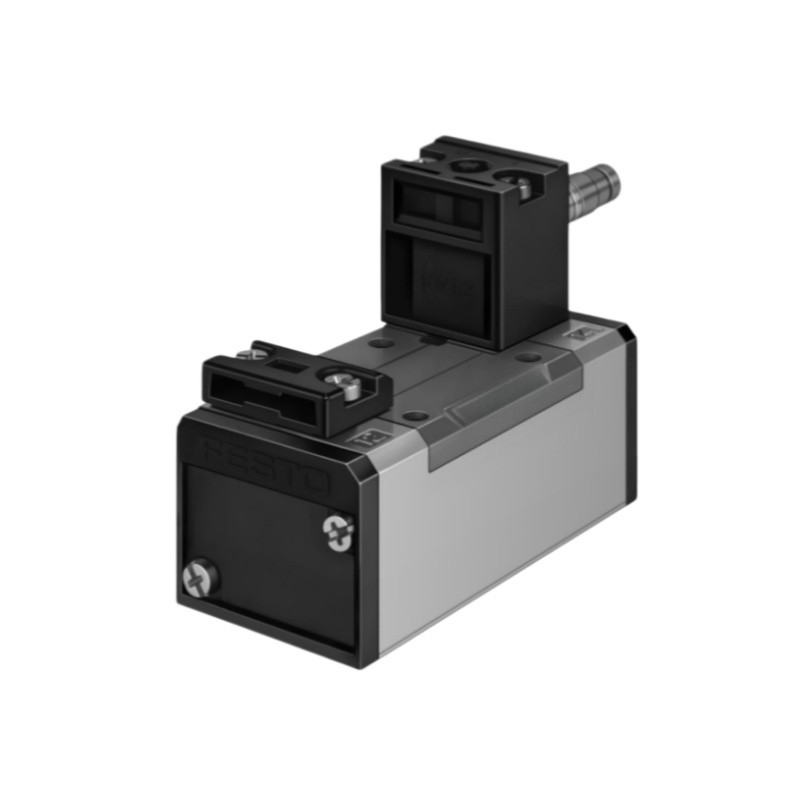

MN1H-5/2-D-2-C
Product Overview
FESTO MN1H-5/2-D-2-C belongs to MN1H series ISO5599-1 manifold solenoid valve, 5/2-way monostable piston gate valve with soft seal, pneumatic spring reset and internal pilot air supply. G3/8 base connection, nominal flow up to 2300 l/min, fast response. Push-button manual override for commissioning test, exhaust port supports throttling adjustment to control cylinder speed. Modular manifold assembly, IP65 protection after coil installation. This model is phase-out product, stock available only, not suggested for new machine design. Widely used for large-bore cylinder directional control in packaging and material handling automation.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | MN1H-5/2-D-2-C |
| Order No. | 159700 |
| Product Series | MN1H |
| Product Type | 5/2-Way Monostable Piston Gate Solenoid Valve |
| Valve Function | 5/2-way, monostable, pneumatic spring reset |
| Structure | Piston gate valve, soft seal |
| Actuation | Pilot operated, internal pilot air supply |
| Pneumatic Connection | Sub-base size 2, ISO5599-1 standard, G3/8 |
| Nominal Size | 11.5 mm |
| Nominal Flow Rate | 2300 l/min (DIN1343) |
| Operating Pressure | 2 ~ 10 bar |
| Switch-on Time | 20 ms |
| Switch-off Time | 69 ms |
| Manual Override | Push button type, detenting via accessory |
| Exhaust Function | Throttleable exhaust |
| Valve Width | 54 mm |
| Grid Dimension | 56 mm |
| Solenoid Coil | Coil sold separately |
| Protection Class | IP65 (coil assembled) |
| Ambient Temperature | -5 ~ +50 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Housing Material | Die-cast aluminium |
| Seal Material | NBR soft seal |
| Feature | ISO5599-1 模块化阀岛阀，大流量，产品逐步停产，新项目不推荐选用 |
| Mounting | Manifold base mounting, any mounting position |
| Corrosion Resistance Class | CRC 2 |
| Certificate | CE, cULus Recognized, RoHS |
| Origin | Germany |
| Condition | New Original |
