190652 QSF-3/8-6-B
Product Overview
Item No: 190652 Model: QSF-3/8-6-B Brand: Festo Type: Straight Push-in Pneumatic Fitting

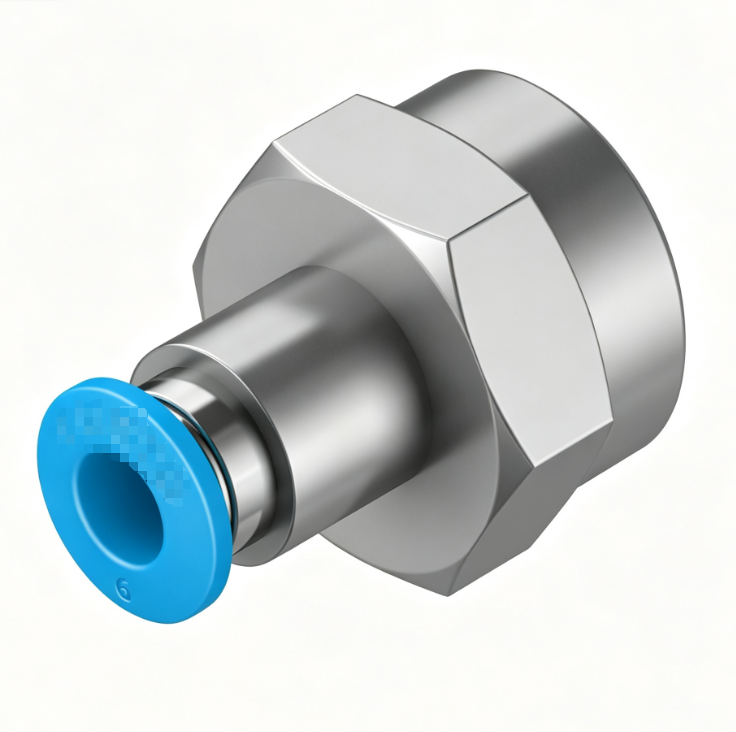

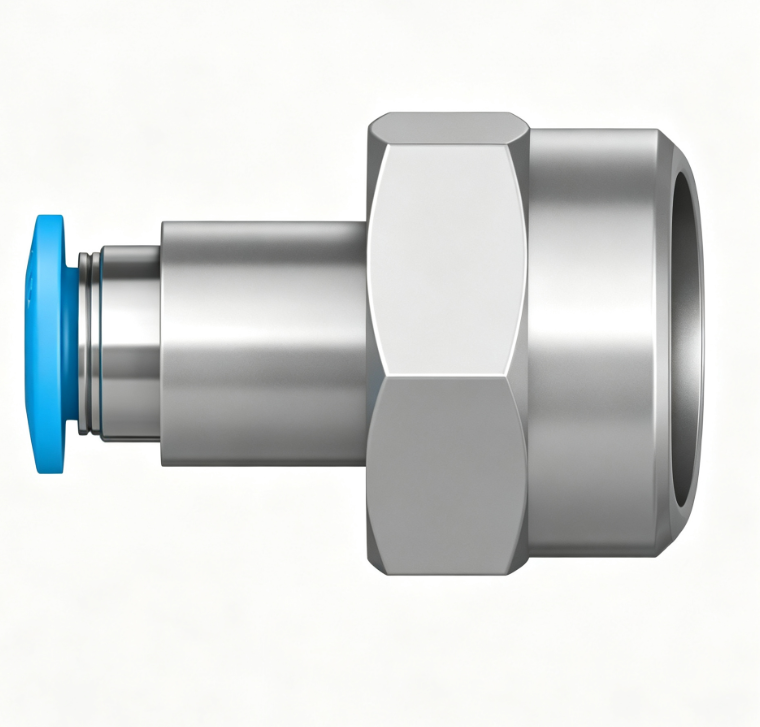

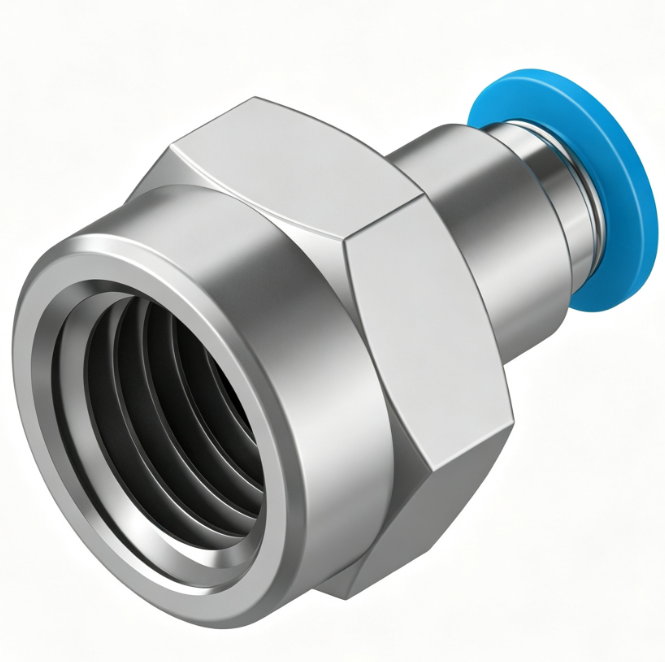

Festo QSF-3/8-6-B pneumatic fitting, part number 190652, belongs to QS Quick Star push-in series. It is a straight connector with G3/8 BSPP female thread on one side and push-in port for Φ6mm OD pneumatic hose on the other side. It adopts push-pull quick connection principle, enabling fast hose insertion and removal without tools. The fitting body is nickel-plated brass with external hexagon for easy tightening. It delivers stable sealing performance and is widely used in industrial automation pneumatic circuits to connect female threaded ports to 6mm air hoses.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | QSF-3/8-6-B |
| Part No. | 190652 |
| Product Series | QS Quick Star |
| Product Type | Straight Push-in Fitting |
| Port 1 | G3/8 BSPP Female Thread |
| Port 2 | Push-in for 6mm OD Tube |
| Nominal Diameter | 5 mm |
| Operating Pressure | -0.95 ~ 14 bar |
| Full Temperature Range Pressure | ≤ 6 bar |
| Operating Medium | Compressed air / Ice-free water |
| Ambient Temperature | -10 ℃ ~ +80 ℃ |
| Body Material | Nickel-plated Brass |
| Release Ring Material | POM |
| Seal Material | NBR |
| Clamp Spring | High-alloy Stainless Steel |
| Release Ring Color | Blue |
| Pack Quantity | 10 pcs/pack |
| Net Weight | 30 g/pc |
| RoHS Compliance | Yes |
| Feature | Push-pull quick connection, external hexagon SW21 |
| Application | Pneumatic Automation Circuit |
