153025 QSF-1/8-8-B
Product Overview
Item No: 153025 Model: QSF-1/8-8-B Brand: Festo Type: Straight Push-in Pneumatic Fitting

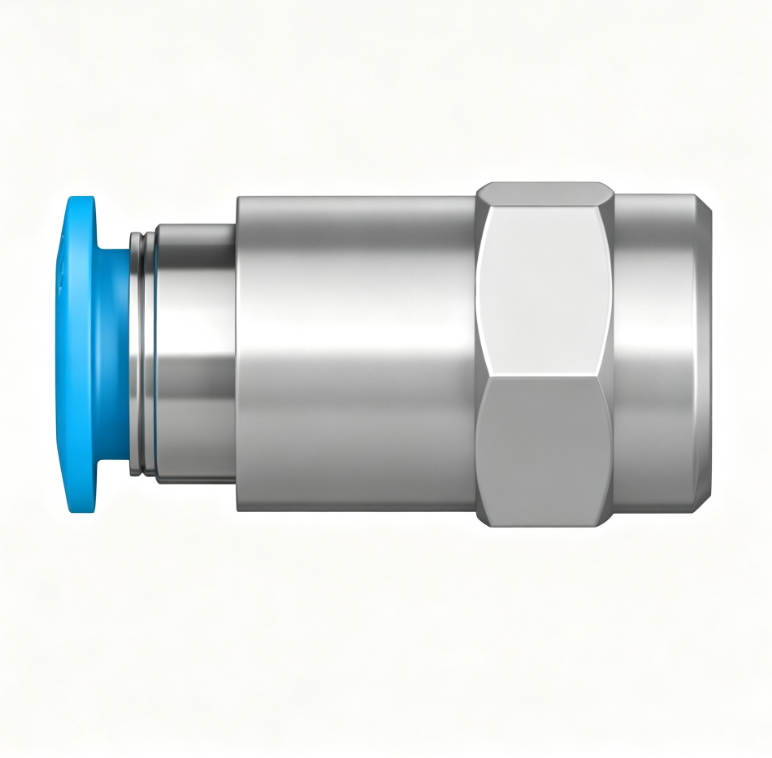

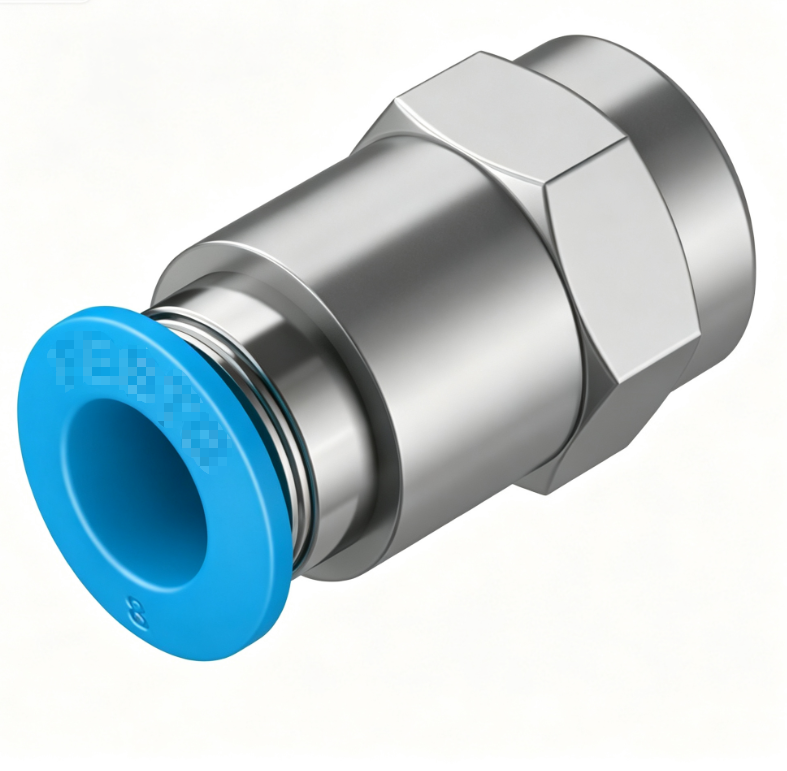

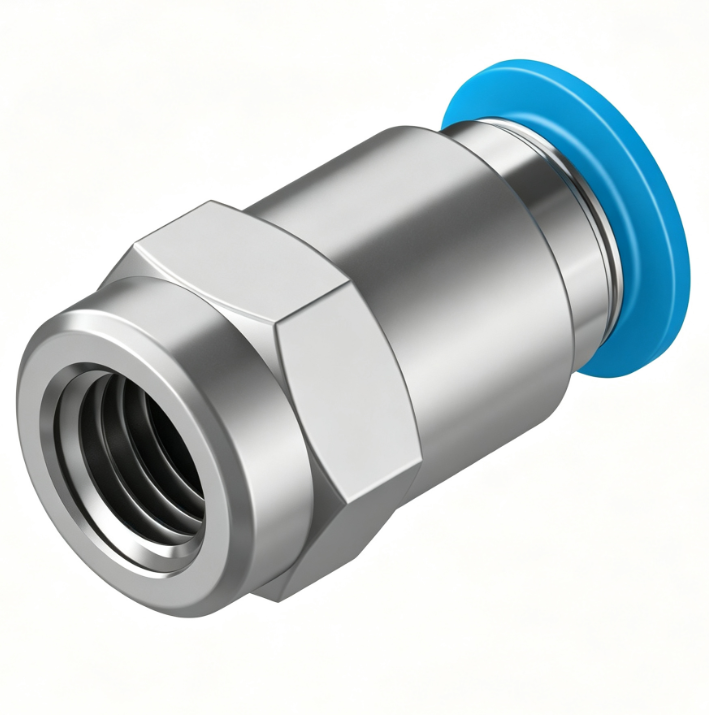

Festo QSF-1/8-8-B pneumatic fitting, part number 153025, belongs to QS Quick Star push-in series. It is a straight connector with G1/8 BSPP female thread on one side and push-in port for Φ8mm OD pneumatic hose on the other side. It adopts push-pull quick connection principle, enabling fast hose insertion and removal without tools. The fitting body is nickel-plated brass with external hexagon for easy tightening. It delivers stable sealing performance and is widely used in industrial automation pneumatic circuits to connect female threaded ports to 8mm air hoses.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | QSF-1/8-8-B |
| Part No. | 153025 |
| Product Series | QS Quick Star |
| Product Type | Straight Push-in Fitting |
| Port 1 | G1/8 BSPP Female Thread |
| Port 2 | Push-in for 8mm OD Tube |
| Nominal Diameter | 6 mm |
| Operating Pressure | -0.95 ~ 14 bar |
| Full Temperature Range Pressure | ≤ 6 bar |
| Operating Medium | Compressed air / Ice-free water |
| Ambient Temperature | -10 ℃ ~ +80 ℃ |
| Body Material | Nickel-plated Brass |
| Release Ring Material | POM |
| Seal Material | NBR |
| Clamp Spring | High-alloy Stainless Steel |
| Release Ring Color | Blue |
| Pack Quantity | 10 pcs/pack |
| Net Weight | 16 g/pc |
| RoHS Compliance | Yes |
| Feature | Push-pull quick connection, external hexagon |
| Application | Pneumatic Automation Circuit |
