1074360 IMB12-08NPPVC0S

属性项	参数
Brand	SICK
Model	IMB12-08NPPVC0S
Order No.	1074360
Product Type	Inductive Proximity Sensor
Sensing Principle	Inductive
Rated Sensing Distance	8 mm
Output Type	NPN+PNP (NO/NC programmable)
Supply Voltage	10~30V DC
Connection	M12 4-pin female connector
Housing Material	Nickel-plated brass
Protection Grade	IP67
Size	M12, Length 78 mm
Response Frequency	1200 Hz
Max Output Current	200mA
Operating Temp	-25℃ ~ +70℃
Net Weight	0.08kg
Gross Weight	0.11kg
Certification	CE
Conditi

INQUIRY

Product Details

Product Tags

Product Overview

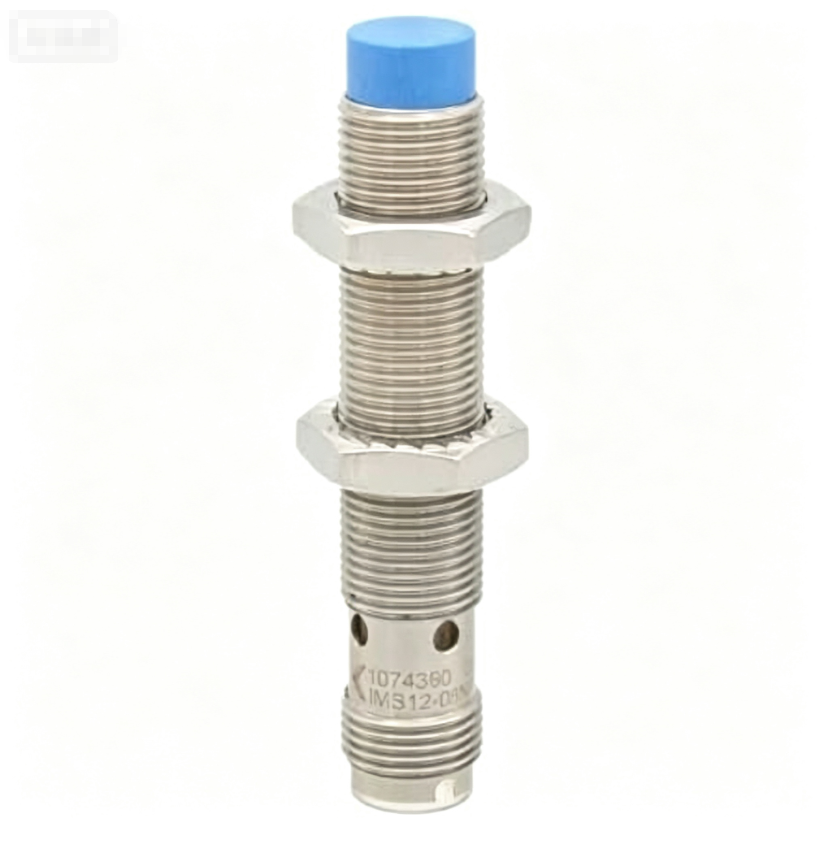

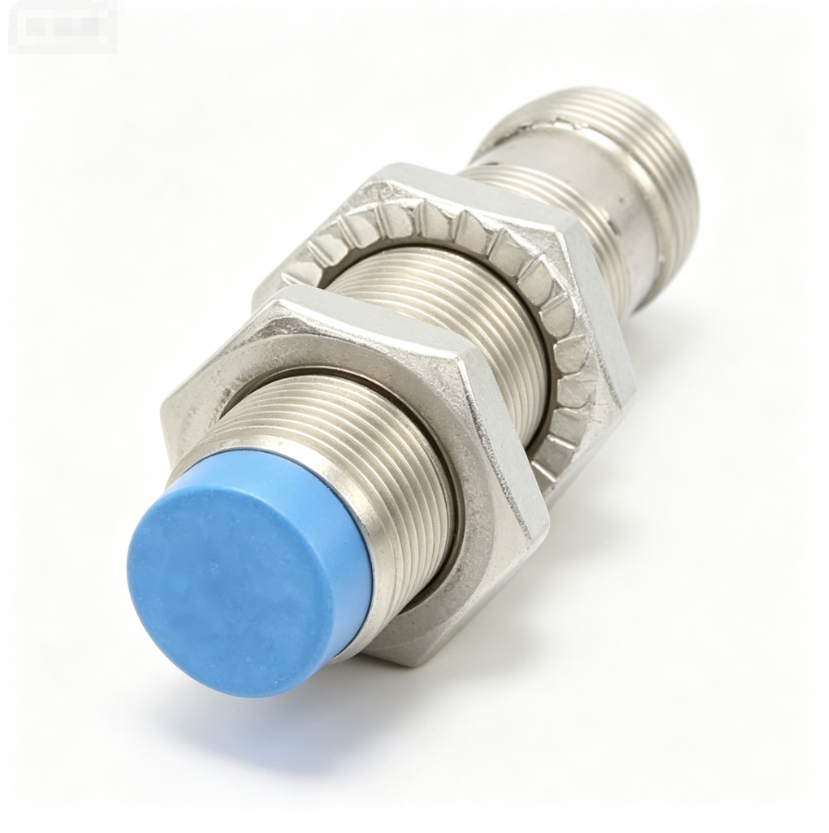

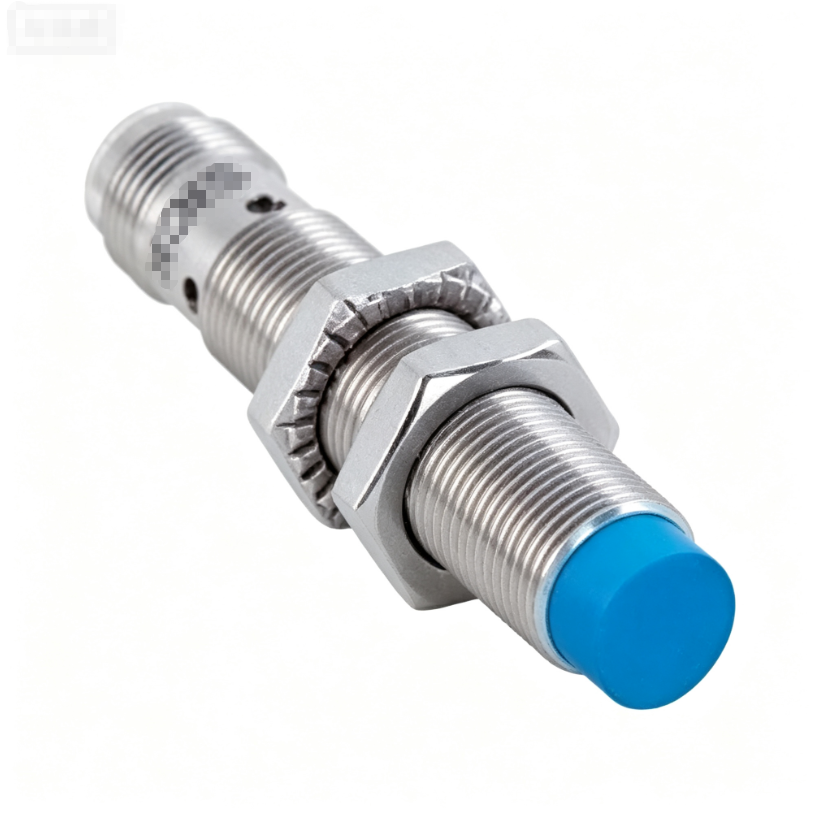

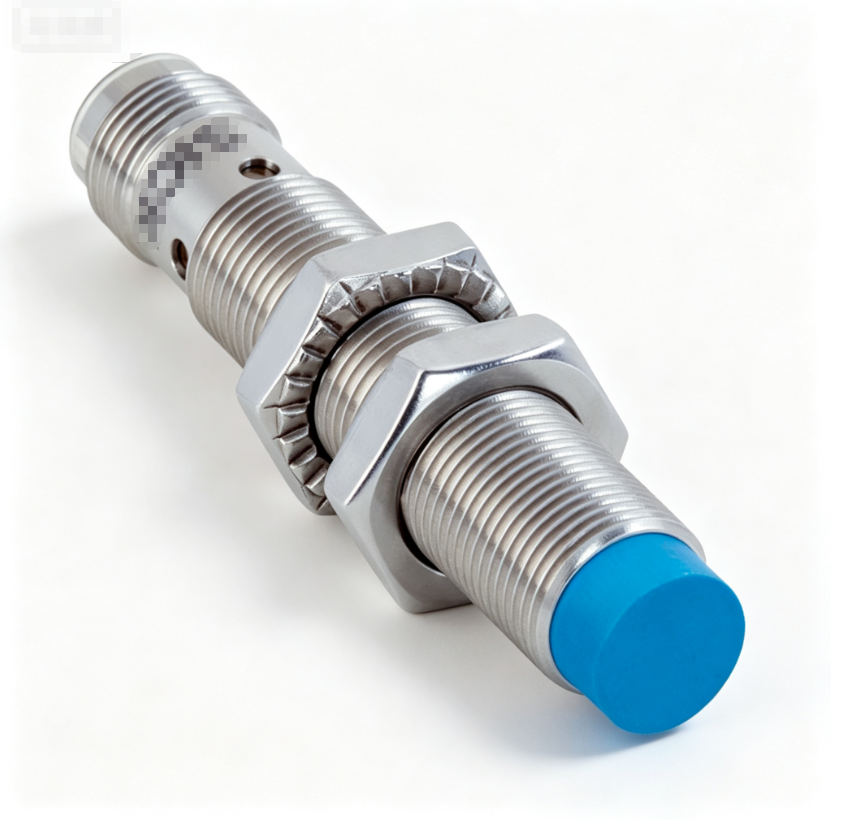

SICK IMB12-08NPPVC0S, Order No.1074360 is an M12 inductive proximity sensor. It features programmable output function, supports both NPN and PNP, NO/NC switchable. Designed for non-contact metal object detection with stable performance in industrial environments.

属性项	参数
Brand	SICK
Model	IMB12-08NPPVC0S
Order No.	1074360
Product Type	Inductive Proximity Sensor
Sensing Principle	Inductive
Rated Sensing Distance	8 mm
Output Type	NPN+PNP (NO/NC programmable)
Supply Voltage	10~30V DC
Connection	M12 4-pin female connector
Housing Material	Nickel-plated brass
Protection Grade	IP67
Size	M12, Length 78 mm
Response Frequency	1200 Hz
Max Output Current	200mA
Operating Temp	-25℃ ~ +70℃
Net Weight	0.08kg
Gross Weight	0.11kg
Certification	CE
Condition	New Original
Application	Factory Automation, Conveyor, Machine Tool, Material handling
