SMT-8M-A-PS-24V-E-2,5-OE
Product Overview

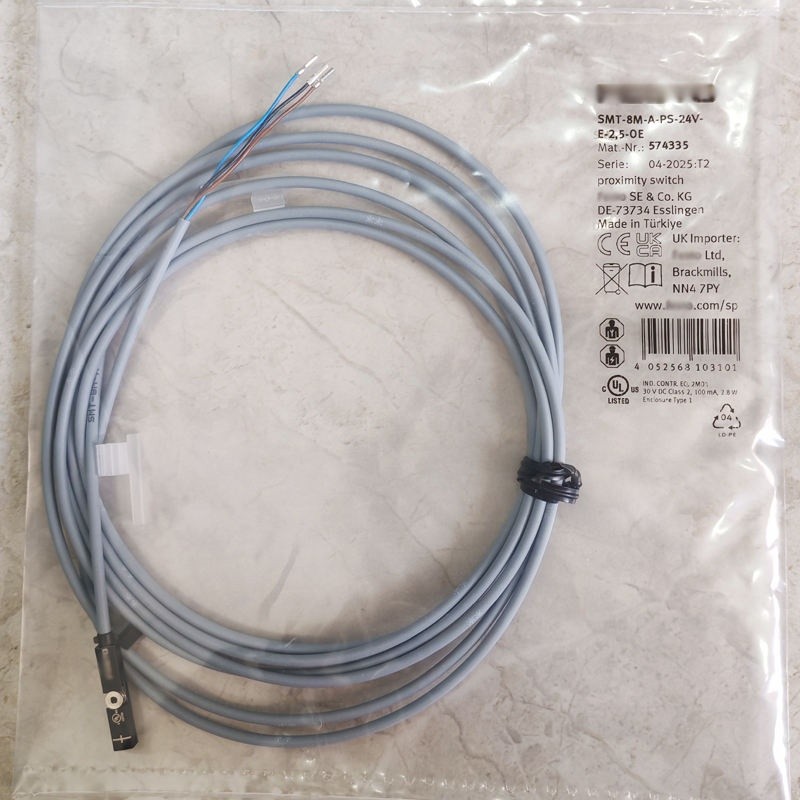

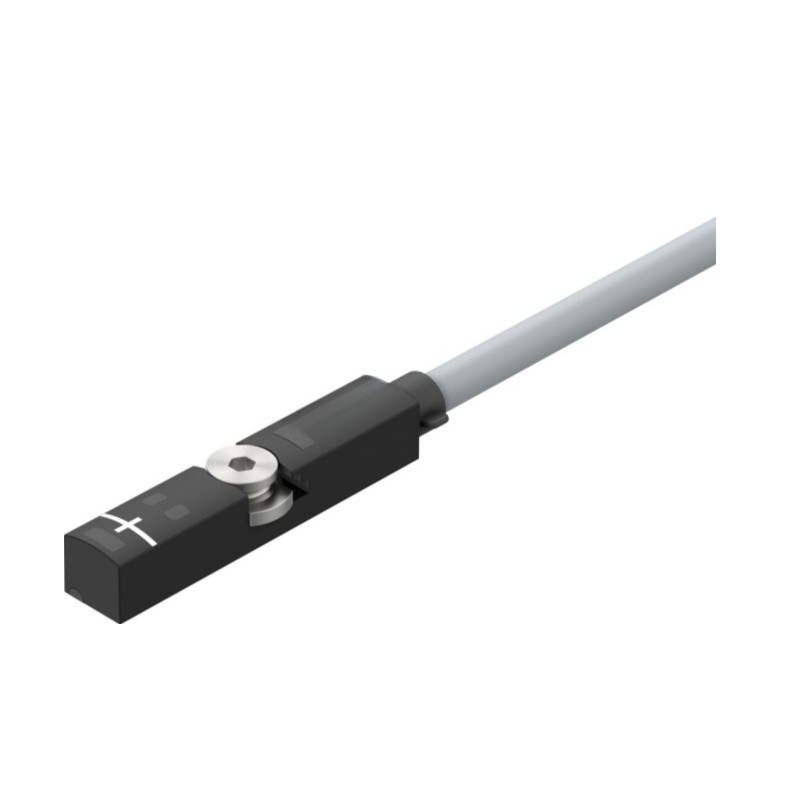

SMT-8M-A-PS-24V-E-2,5-OE, Part No.574335, belongs to Festo SMT-8M-A series magneto-resistive proximity sensor. Designed for T-slot pneumatic cylinders to detect piston position. PNP normally open signal output, equipped with 2.5 meters energy chain compatible cable with open end. IP67 protection grade, built-in reverse polarity, short-circuit and overload protection, stable and reliable for cylinder position feedback in automation equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | SMT-8M-A-PS-24V-E-2,5-OE |
| Part No. | 574335 |
| Type | Magneto-resistive proximity sensor for T-slot cylinder |
| Output type | PNP, Normally Open (NO) |
| Supply voltage | DC 5 ~ 30 V (rated 24VDC) |
| Max. output current | 100 mA |
| Cable | 2.5m drag chain cable, open end OE |
| Measuring principle | Magneto-resistive |
| Repetition accuracy | 0.2 mm |
| Max. switching frequency | 130 Hz |
| Temperature range | -40 ~ 85 ℃ |
| Protection class | IP67 |
| Feature | Reverse polarity protection, short-circuit & overload protection, suitable for energy chain |
| Weight | 29.10 g |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
