OVEL-10-L-15-PQ-VQ6-UA-C-A-B2PNLK-H3
Product Overview

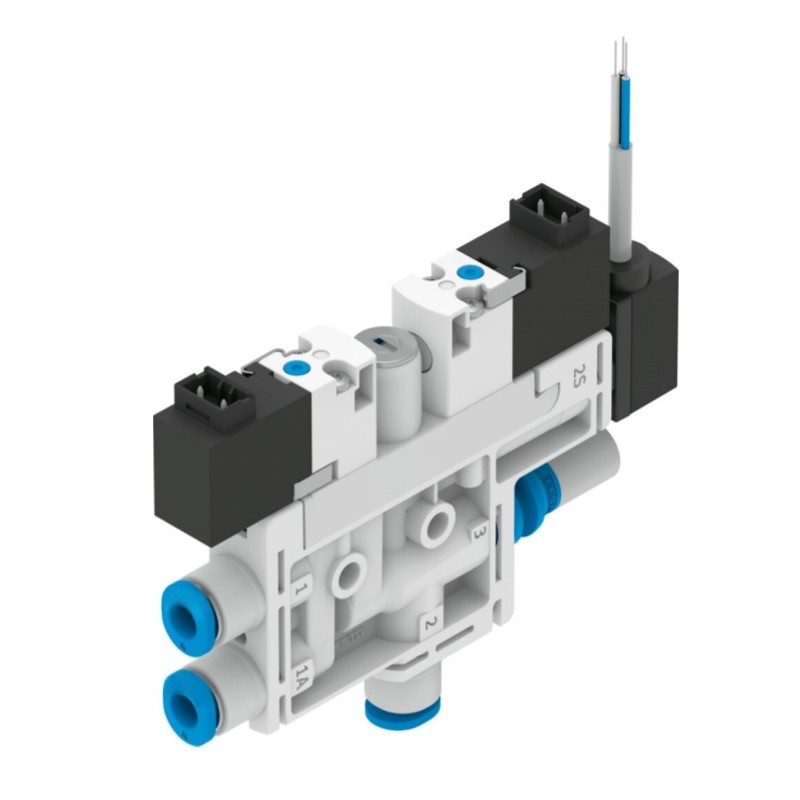

New Original FESTO OVEL-10-L-15-PQ-VQ6-UA-C-A-B2PNLK-H3 Compact Vacuum Generator, belonging to OVEL series pneumatic vacuum ejector. This 15mm width vacuum generator adopts Laval nozzle with 0.95mm caliber, featuring large suction flow design, built-in solenoid valve, 40μm filter and open silencer. Equipped with B2PNLK IO-Link vacuum pressure sensor and H3 2.5m cable, it supports real-time vacuum monitoring and quick ejector pulse for fast workpiece release. With lightweight compact structure, it can be installed at any position, widely used for pick & place and material handling in automated production lines.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | OVEL-10-L-15-PQ-VQ6-UA-C-A-B2PNLK-H3 |
| Product Series | OVEL |
| Product Type | Vacuum Generator / Ejector |
| Nozzle Spec | 0.95mm Laval nozzle |
| Module Width | 15 mm |
| Ejector Characteristic | L（Low suction flow 大流量型） |
| Pneumatic Connection | PQ-VQ6, push-in fitting for tubing OD 6mm |
| Sensor Type | B2PNLK, IO-Link, Pressure sensor |
| Integrated Function | Electric ejector pulse, filter, open silencer, solenoid valve |
| Operating Pressure | 2 ~ 7 bar |
| Nominal Pressure | 4 bar |
| Max Vacuum | 92% |
| Max Suction Flow | 21 L/min |
| Operating Temp | 0 ~ +50 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Protection Class | IP40 |
| Filtration Grade | 40 μm |
| Structure | T-shape |
| Mounting | Through-hole, any mounting position |
| Housing Material | PA reinforced plastic |
| Seal Material | NBR |
| Cable Spec | H3, 2.5m cable |
| Voltage | DC 21.6 ~ 26.4V |
| Weight | 92 g |
| Certificate | RoHS, CE |
| Origin | Germany |
| Condition | New Original |
