186101 QS-G1/4-10
Product Overview

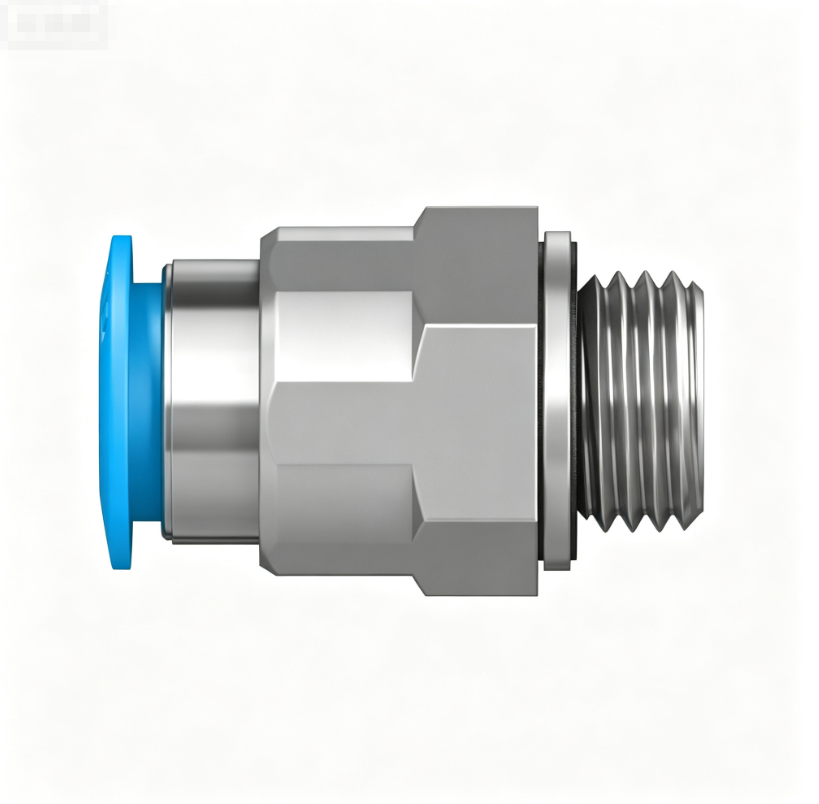

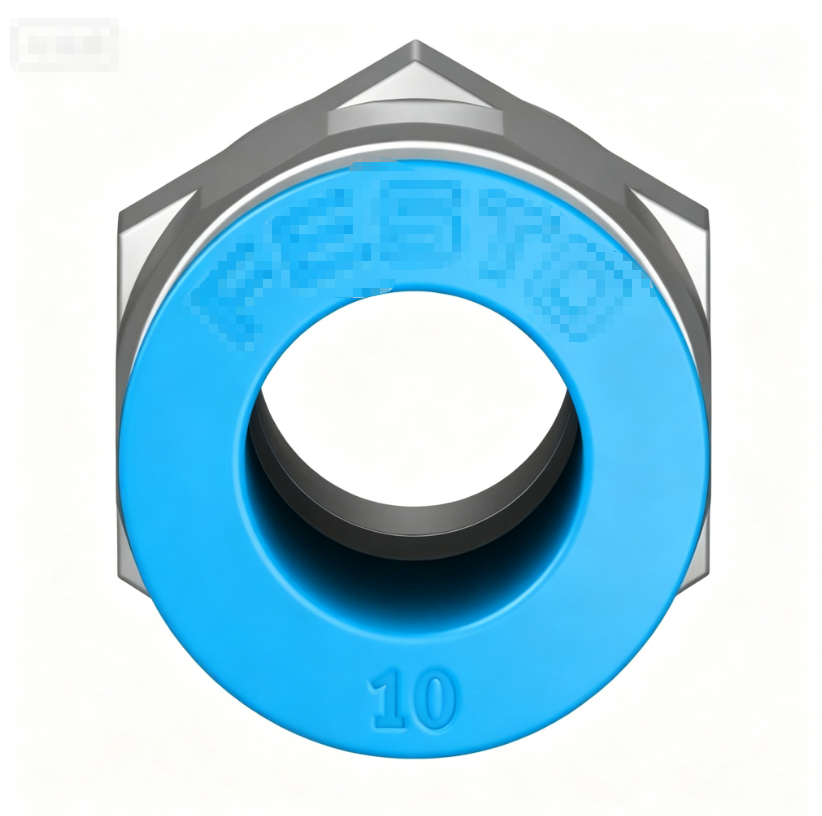

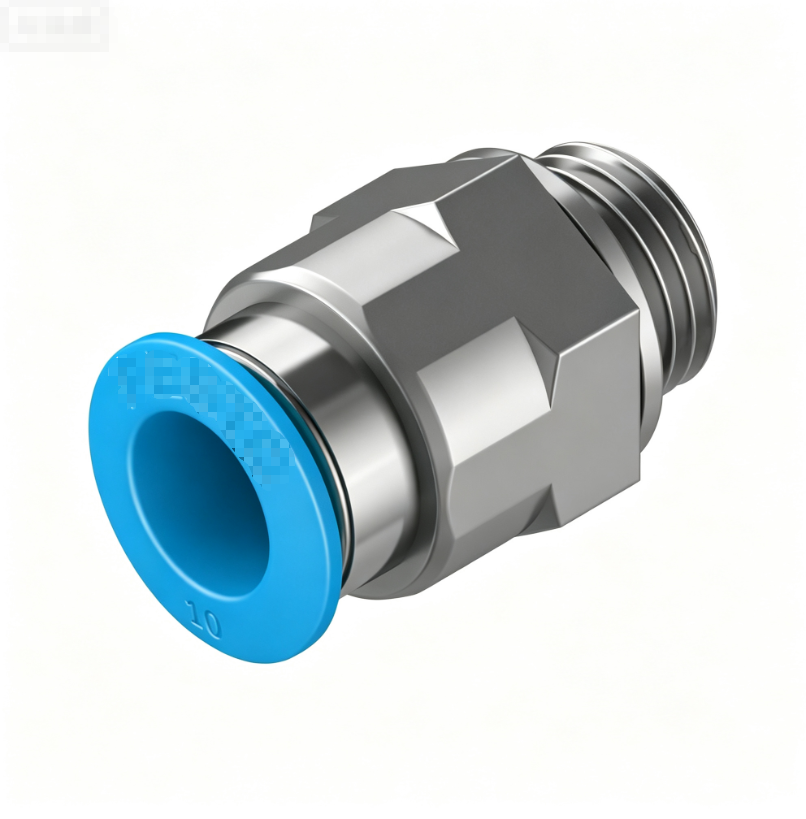

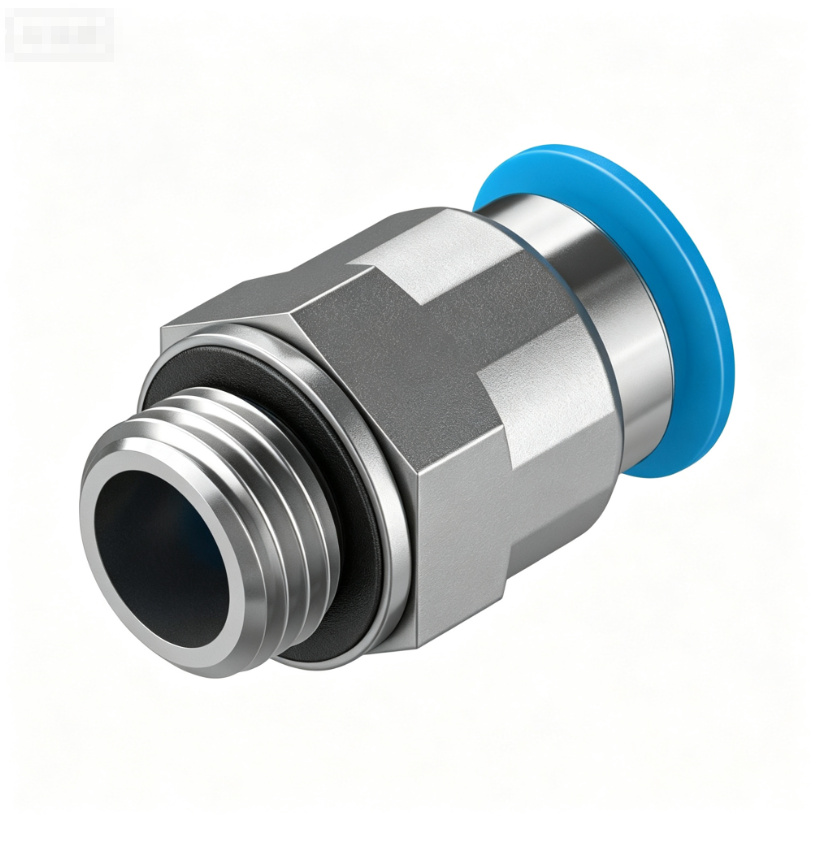

QS-G1/4-10 (Part No.186101) is Festo QS series push-in straight pneumatic fitting. It connects G1/4 male thread to plastic tubing OD10mm. Housing made of nickel-plated brass, release ring POM, NBR seal and stainless steel retaining spring. Adopts push-pull principle for fast tube insertion and release without tools. Working pressure -0.95~14 bar (temperature dependent), full temperature range pressure -0.95~6 bar, ambient temperature -10~80℃. RoHS compliant. Widely used for compressed air and vacuum pipeline connection in industrial automation pneumatic systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | QS-G1/4-10 |
| MPN | 186101 |
| Product Type | Pneumatic Push-in Fitting, Straight Connector |
| Series | QS Series |
| Material | Housing: Nickel-plated brass; Release ring: POM; Seal: NBR; Spring: Stainless steel |
| Size | Thread: G1/4"; Tube OD: 10mm |
| Working Medium | Compressed air, vacuum (ISO 8573-1:2010) |
| Working Pressure | -0.95 ~ 14 bar (temperature dependent); -0.95 ~ 6 bar full temperature range |
| Ambient Temperature | -10 ~ 80 ℃ |
| Feature | Push-pull quick connector, tool-free tube assembly, external hexagon, reliable sealing |
| Compliance | RoHS compliant |
| Application | Pneumatic pipeline connection, connect G1/4 male thread to OD10 plastic tubing, automation compressed air & vacuum circuit |
