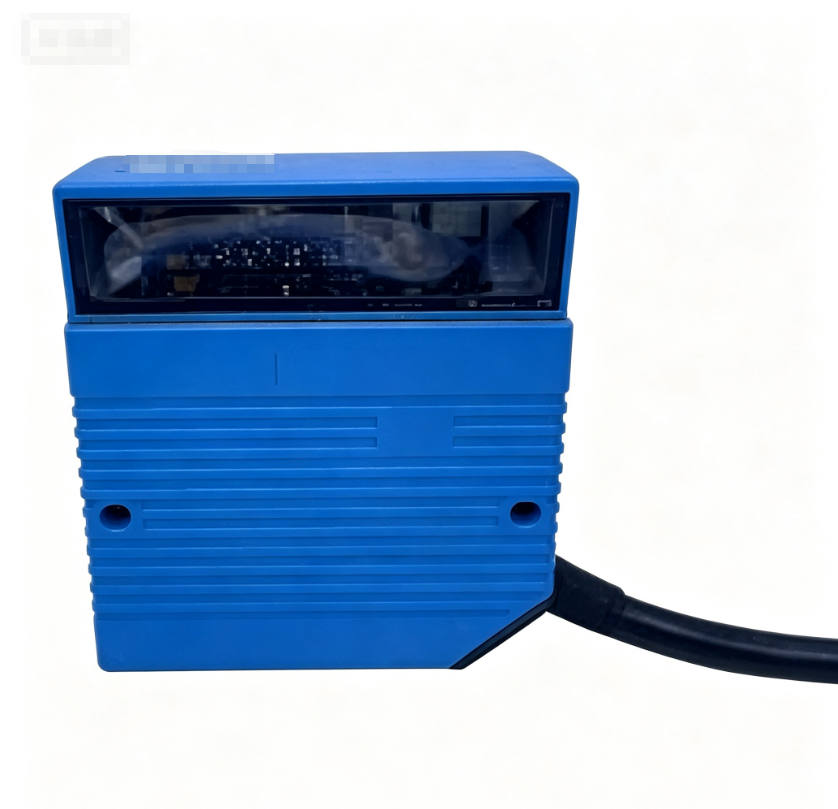

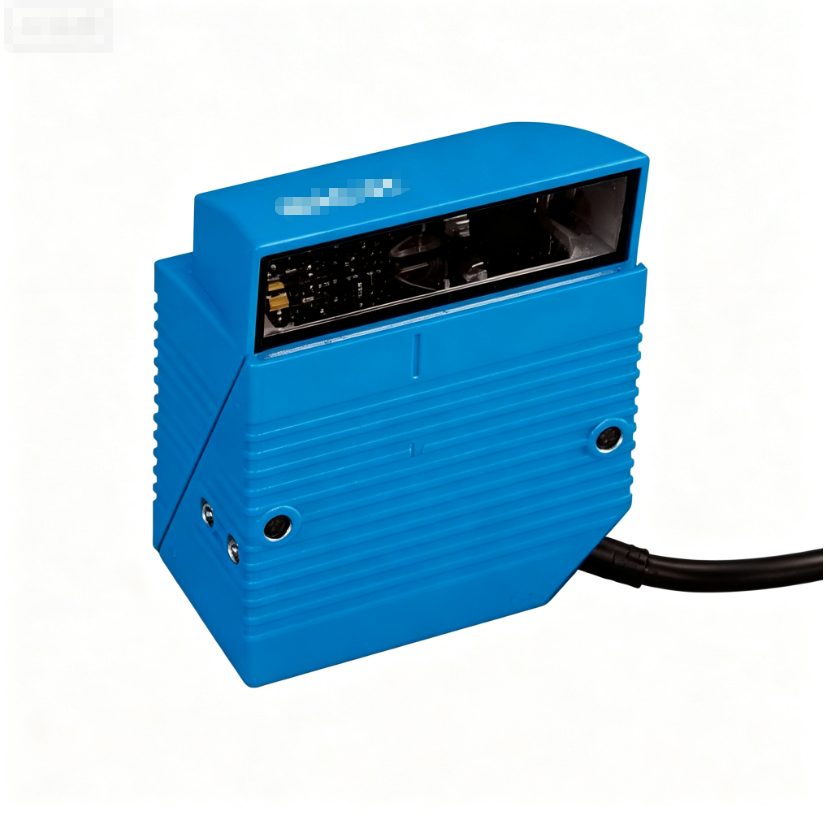

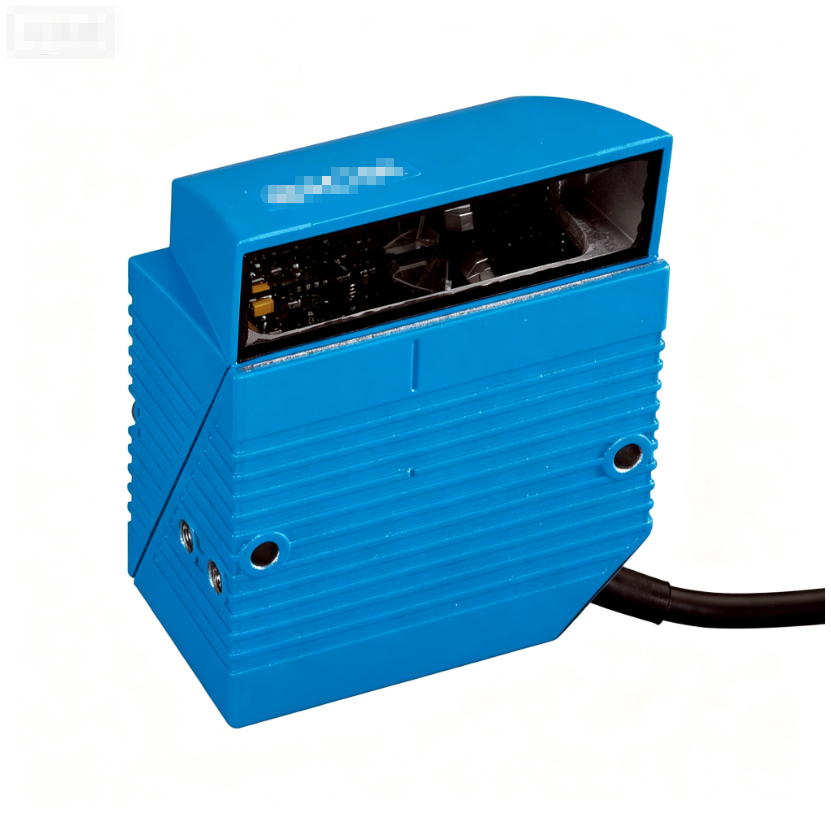

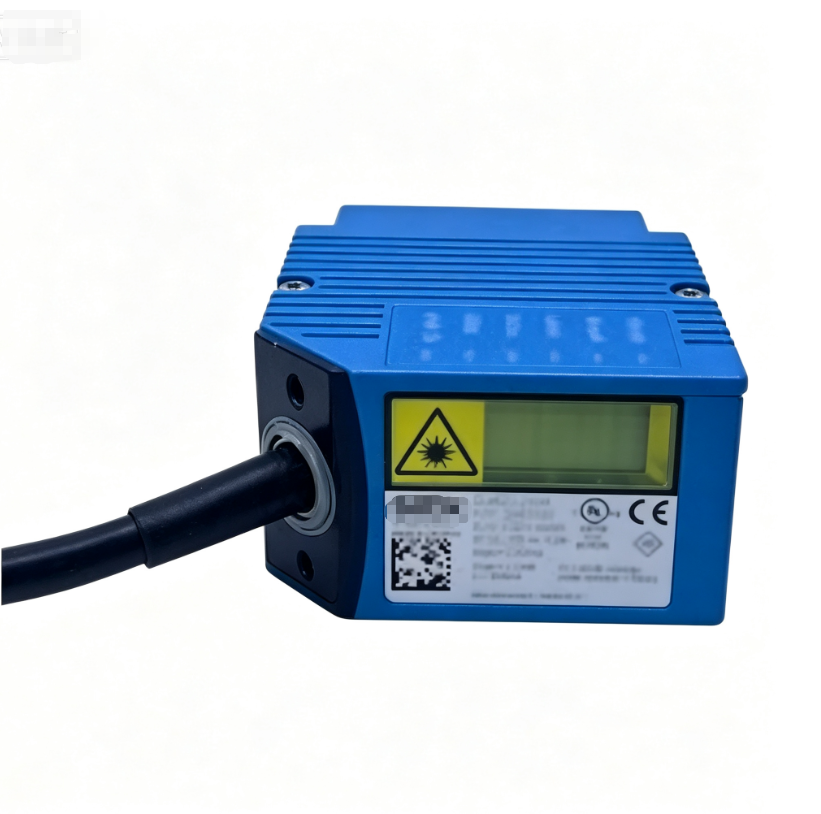

CLV620-2000 1041550

属性名称	属性值
Brand	SICK
Model	CLV620-2000
Order No.	1041550
Product Type	Fixed 1D Laser Barcode Scanner
Light Source	650nm visible red laser
Scan Rate	1000 scans/sec
Reading Range	50 mm ~ 310 mm
Resolution	0.2 mm
Interface	RS232 / RS422
Supply Voltage	10…30 V DC
Max Speed	—
IP Rating	IP65
Housing Material	Aluminum alloy
Operating Temperature	-20℃~+50℃
Feature	Fixed mount barcode reader,1D laser,compact body,stable decoding,flexible mounting,simple parameter setting
Certification	CE

INQUIRY

Product Details

Product Tags

Product Overview

CLV620-2000 is SICK fixed 1D laser barcode scanner, order number 1041550. It uses a 650nm visible red laser light source with scanning speed of 1000 scans per second and 0.2mm resolution. The reading distance ranges from 50mm to 310mm. It supports RS232 / RS422 communication interface, supply voltage 10~30 V DC. Aluminum alloy housing with IP65 protection class. Featuring compact body, stable decoding, flexible installation and simple parameter configuration, it is widely used for barcode reading on automated production lines.

属性名称	属性值
Brand	SICK
Model	CLV620-2000
Order No.	1041550
Product Type	Fixed 1D Laser Barcode Scanner
Light Source	650nm visible red laser
Scan Rate	1000 scans/sec
Reading Range	50 mm ~ 310 mm
Resolution	0.2 mm
Interface	RS232 / RS422
Supply Voltage	10…30 V DC
Max Speed	—
IP Rating	IP65
Housing Material	Aluminum alloy
Operating Temperature	-20℃~+50℃
Feature	Fixed mount barcode reader,1D laser,compact body,stable decoding,flexible mounting,simple parameter setting
Certification	CE
Condition	New Original
MOQ	1 Piece
Gross Weight	0.23 KG
Net Weight	0.19 KG
Place of Origin	Germany
