CLV622-2120 1041797
Product Overview

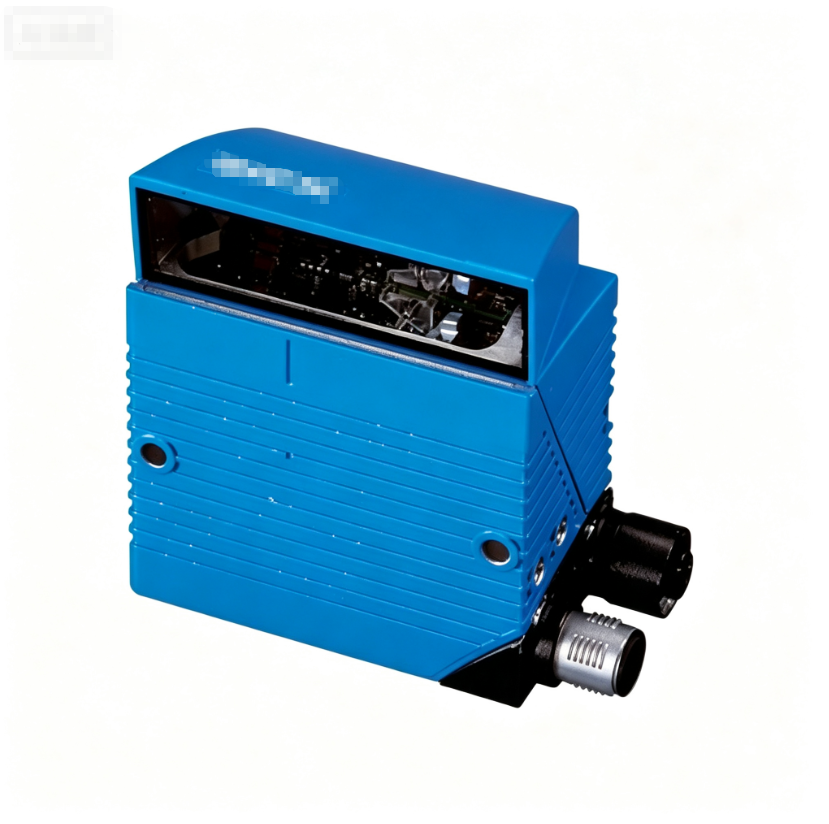

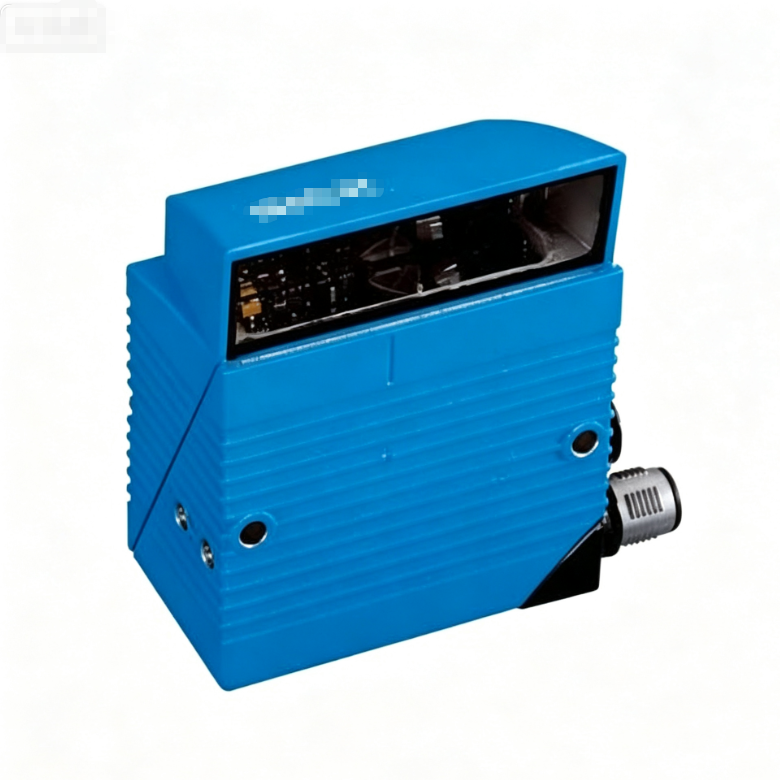

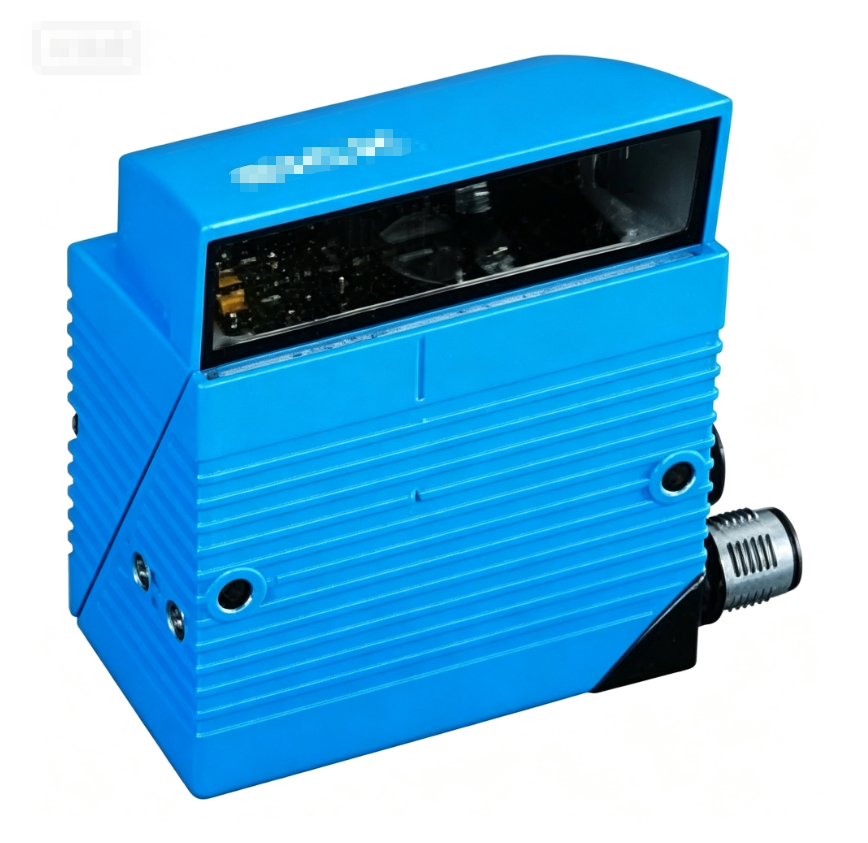

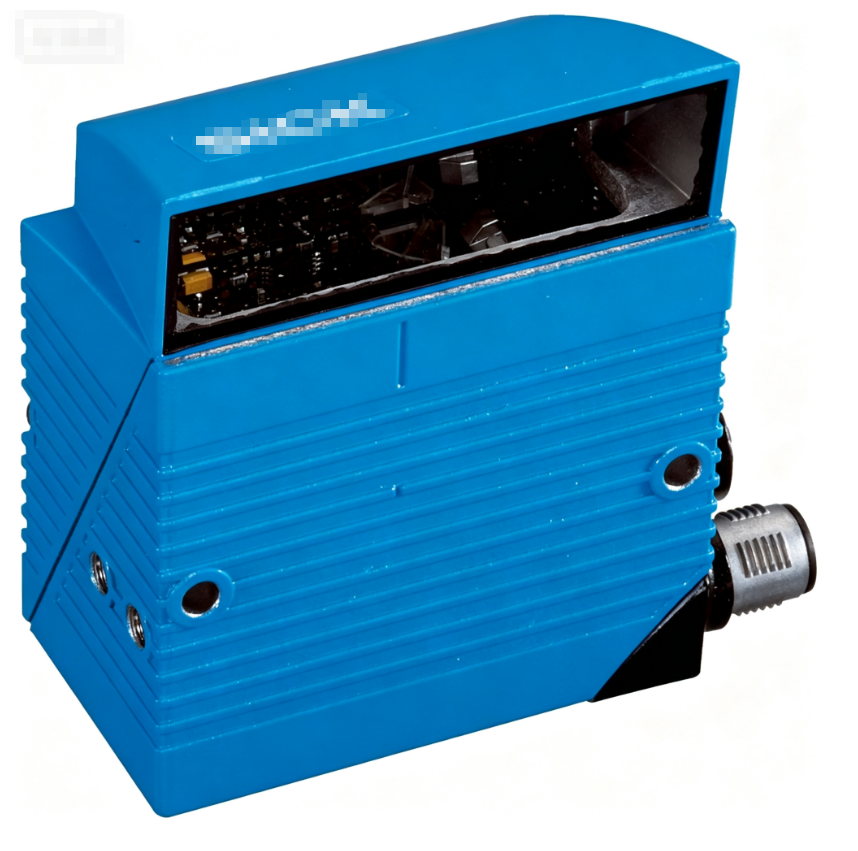

CLV622-2120 is SICK fixed 1D laser barcode scanner, order number 1041797. Adopting 650nm visible red laser light source, it achieves scanning speed up to 1200 scans per second, 0.2mm resolution and reading range from 50mm to 320mm. It supports RS232 / RS422 communication interface, supply voltage 10~30 V DC. Aluminum alloy housing with IP65 protection grade. It has reliable decoding performance, compact design and simple commissioning, suitable for barcode reading on automated production lines.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | CLV622-2120 |
| Order No. | 1041797 |
| Product Type | Fixed Barcode Scanner |
| Light Source | Visible red laser, 650nm |
| Scan Rate | 1200 scans/sec |
| Reading Range | 50 mm ~ 320 mm |
| Resolution | 0.2 mm |
| Interface | RS232 / RS422 |
| Supply Voltage | 10…30 V DC |
| IP Rating | IP65 |
| Housing Material | Aluminum alloy |
| Operating Temperature | -20℃~+50℃ |
| Feature | 1D barcode reader, fixed mount, high scanning speed, stable decoding, compact design, easy commissioning |
| Certification | CE |
| Condition | New Original |
| MOQ | 1 Piece |
| Gross Weight | 0.24 KG |
| Net Weight | 0.20 KG |
| Place of Origin | Germany |
