CPX-FB13
Product Overview

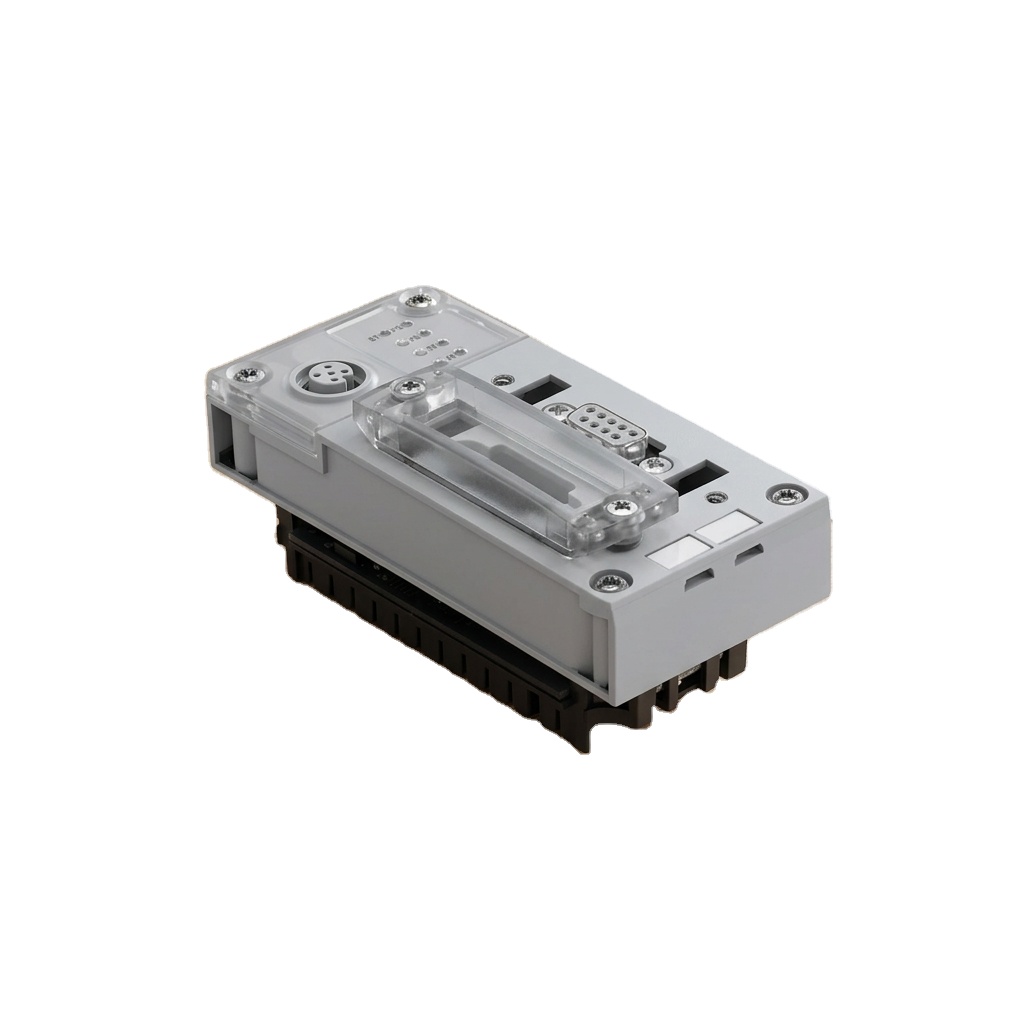

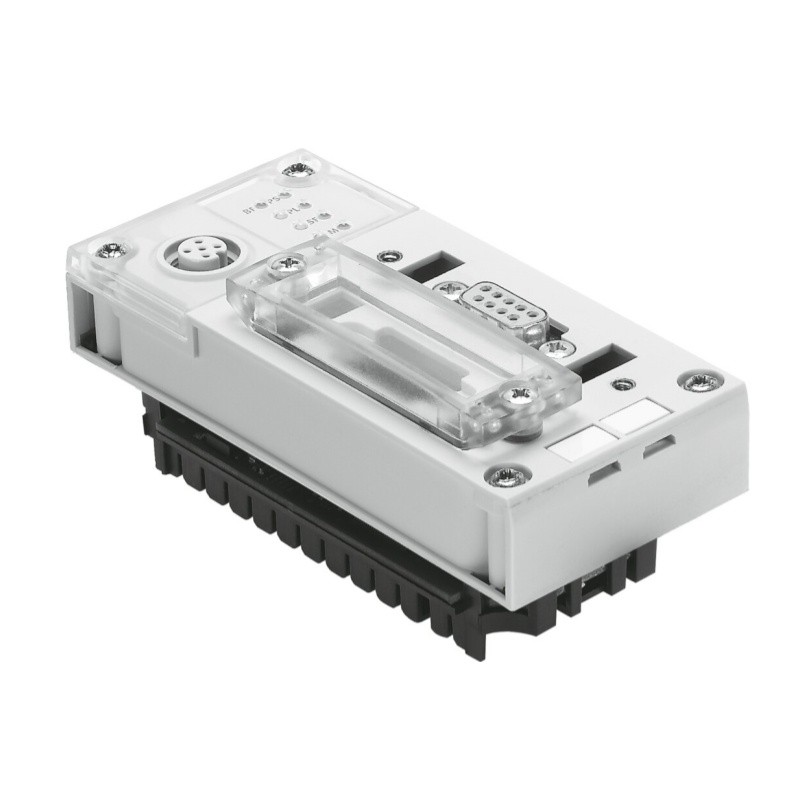

CPX-FB13, Part No.195740, belongs to Festo CPX modular electronic terminal system. It is a PROFIBUS-DP slave bus node used to connect CPX valve terminal and I/O modules to PROFIBUS fieldbus network. Equipped with Sub-D and M12 bus interface, multiple LED indicators for bus fault, power supply and system diagnosis. Supports DIP switch station address setting, channel-oriented diagnostic function and GSD file configuration. Modular assembly with CPX I/O modules and valve islands, widely adopted in factory automation pneumatic control systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | CPX-FB13 |
| Part No. | 195740 |
| Type | PROFIBUS-DP field bus node, CPX terminal |
| Protocol | PROFIBUS-DP, EN 50170 |
| Baud rate | 96 ~ 12000 kbit/s |
| Max input address | 64 Byte |
| Max output address | 64 Byte |
| Operating voltage | DC 24V (18~30V) |
| Power consumption | Typ. 200mA |
| Bus interface | 9-pin Sub-D socket, 2×M12×1 5-pin B-coded |
| Temperature range | Operation: -5 ~ 50 ℃; Storage: -20 ~70 ℃ |
| Protection class | IP65 / IP67 |
| Material | Housing: Makrolon® PC |
| Dimension (W×L×H) | 50 mm × 107 mm × 50 mm |
| Weight | 115.00 g |
| Feature | DIP switch station setting, multi LED status diagnosis, channel & module diagnostic, GSD file support, CPX modular system compatible |
| Corrosion resistance class | CRC1 |
| RoHS | Compliant |
| Standard | VDMA24364-B2-L |
