VACS-C-C1-1
Product Overview

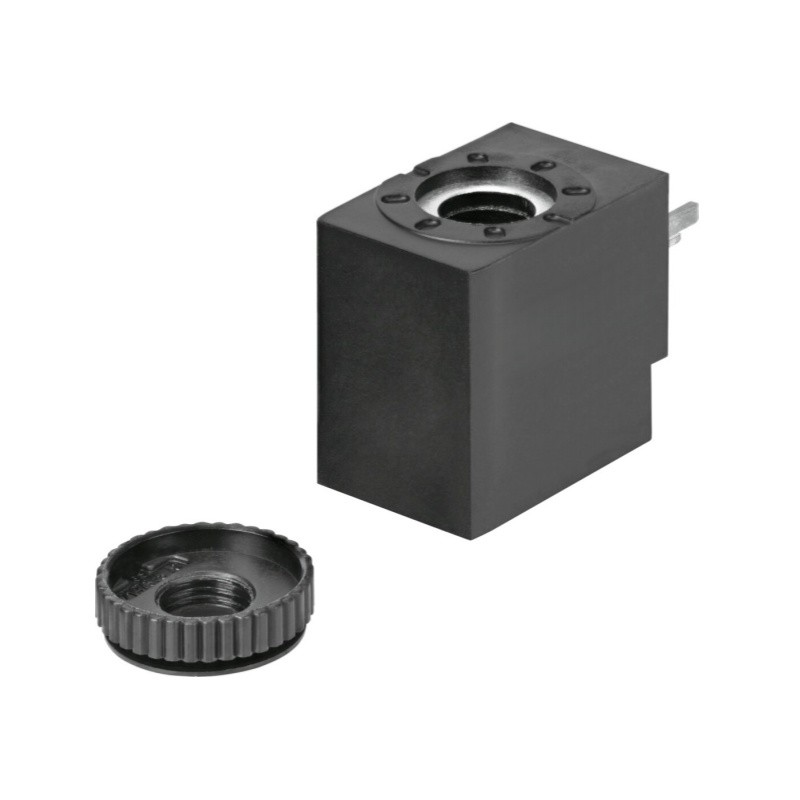

VACS-C-C1-1, Part No.8025330, belongs to Festo VACS series solenoid coil. It is a 24V DC electromagnetic coil with 2.6W power rating, form C connector to EN 175301-803 standard. Equipped with knurled nut for easy installation onto valve armature tube. IP65 protection grade and 100% continuous duty cycle for stable long-time operation. Widely used as replacement coil for Festo directional solenoid valves in pneumatic automation.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VACS-C-C1-1 |
| Part No. | 8025330 |
| Type | Solenoid coil, VACS series |
| Nominal voltage | DC 24V |
| Power consumption | 2.6 W |
| Coil width | 18 mm, for armature tube 8 mm |
| Electrical connection | Form C connector, EN 175301-803 |
| Mounting | With knurled nut |
| Temperature range | -10 ~ 50 ℃ |
| Protection class | IP65 |
| Weight | 35.20 g |
| Feature | Standard C form plug, compatible with multiple Festo valve bodies, continuous duty 100% ED |
| Corrosion resistance class | CRC1 |
| RoHS | Compliant |
