MPB10-VS00VSIQ00 1123926
Product Overview

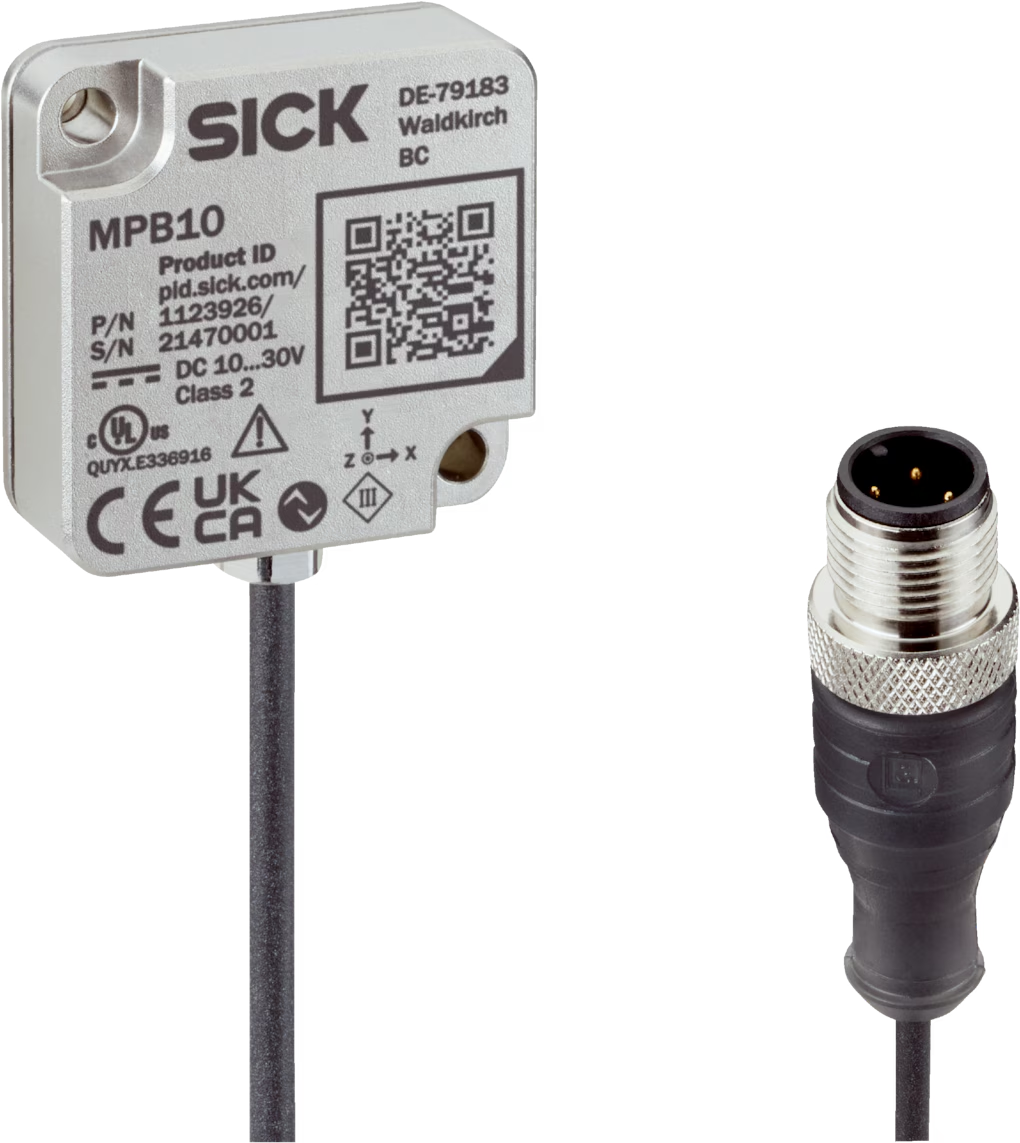

New original SICK MPB10-VS00VSIQ00 condition monitoring sensor, PN 1123926, stainless steel housing with IP68 protection. It monitors 3-axis vibration, shock and temperature for predictive maintenance. Supply voltage 10–30VDC, equipped with IO-Link V1.1 interface and M12 4-pin connector with 0.3m cable. It supports vibration assessment according to ISO 10816-3, widely used for motors, fans, pumps and conveyors to detect bearing damage, unbalance and lubrication issues. Working temperature -40℃ ~ +80℃, suitable for dusty and wet harsh industrial environments. We supply genuine SICK sensors with fast delivery and professional after-sales support.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Model | MPB10-VS00VSIQ00 |
| Part No. | 1123926 |
| Series | MPB10 |
| Sensor type | Condition monitoring sensor, vibration & temperature sensor |
| Measurement | 3-axis vibration, shock, temperature |
| Vibration range | ±8 g |
| Shock range | up to 200 g |
| Frequency range | 0.78 Hz ~ 3200 Hz |
| Communication | IO-Link V1.1 |
| Supply voltage | 10–30 V DC |
| Connection | M12 male, 4-pin, 0.3m cable |
| IP rating | IP68 |
| Housing material | Stainless steel |
| Operating temperature | -40 ℃ ~ +80 ℃ |
| Feature | Predictive maintenance, ISO 10816-3 evaluation, short-circuit & reverse polarity protection |
| Weight(net) | 0.06 kg |
| Weight(gross) | 0.12 kg |
| Certificate | RoHS |
