VSVA-B-P53C-H-A1-1R5L
Product Overview

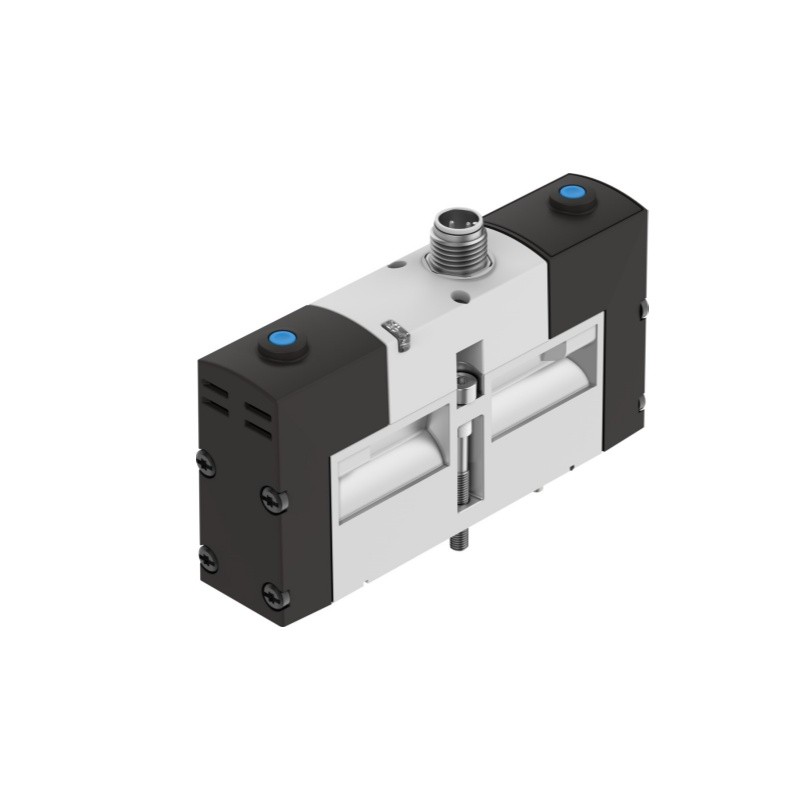

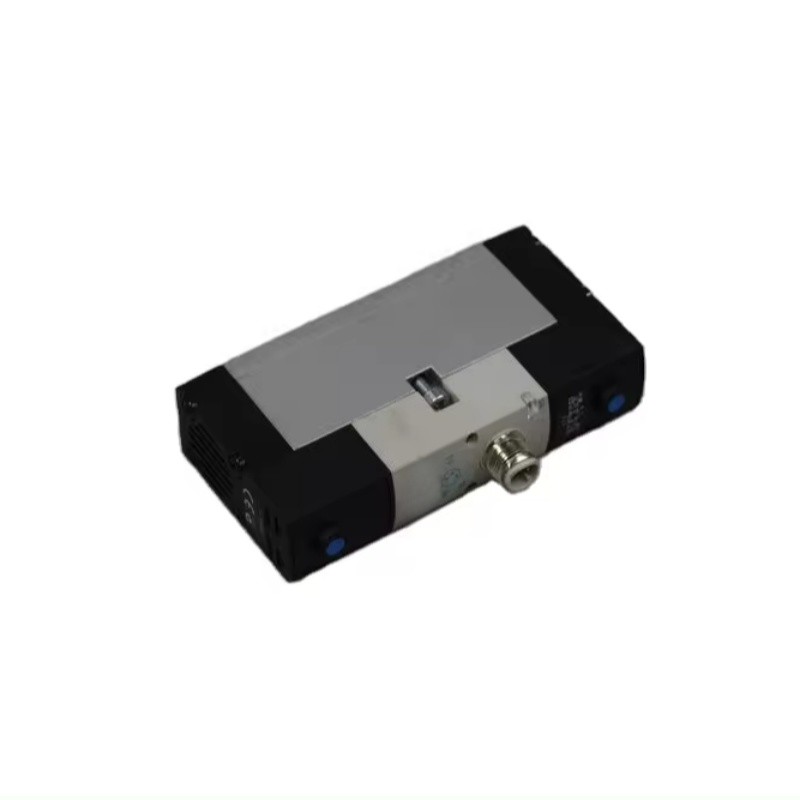

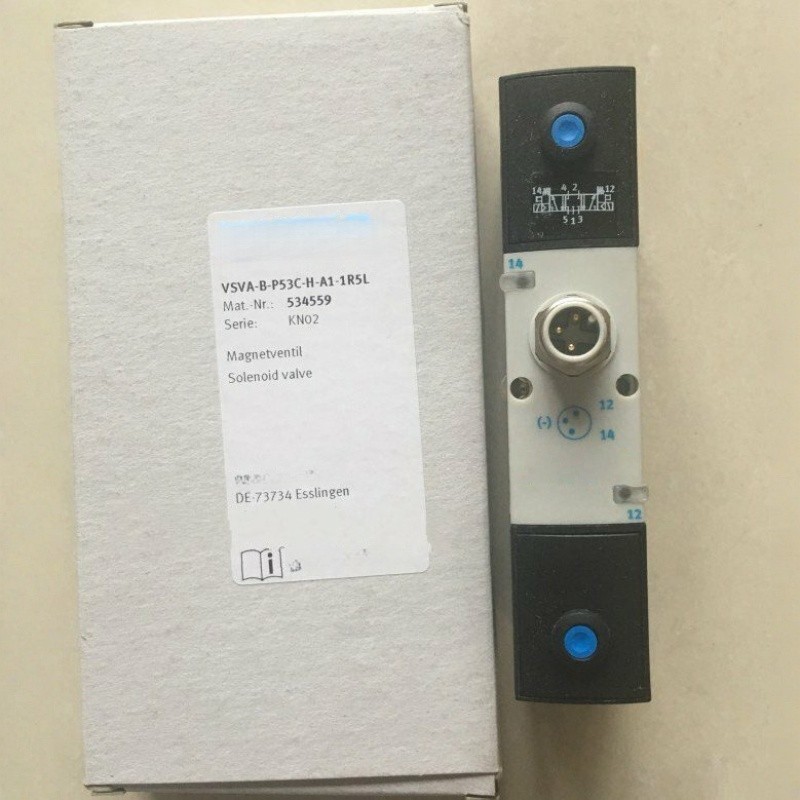

VSVA-B-P53C-H-A1-1R5L (Part No. 534559) is a high-performance 5/3-way closed center pneumatic solenoid valve from Festo VSVA series. This electric pilot operated piston gate valve features spring reset structure, stable switching action and excellent repeatability. It adopts 26mm width design complying with ISO15407-1 standard, equipped with M12x1 3-pin electrical interface and IP65 protection grade. With 24V DC working voltage and 0.3~0.8MPa working pressure range, this pneumatic control valve delivers large flow rate and fast response, ideal for precise pneumatic control in industrial automated production lines.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VSVA-B-P53C-H-A1-1R5L |
| Part No. | 534559 |
| Product Type | Pneumatic Solenoid Valve |
| Series | VSVA |
| Valve Function | 5/3-way, closed center |
| Actuation | Electric Pilot Operated |
| Rated Voltage | 24V DC |
| Working Pressure | 0.3 ~ 0.8 MPa |
| Nominal Flow | 1000 l/min |
| Width | 26 mm |
| Mounting Standard | ISO 15407-1 |
| Electrical Connection | 3-pin M12x1 |
| Protection Class | IP65 |
| Housing Material | Die-cast Aluminum |
| Seal Material | FPM, HNBR, NBR |
| Operating Temperature | -5 ~ 50 ℃ |
| Net Weight | 0.27 kg |
| Certificate | CE, RoHS, c UL us, RCM |
| Feature | LED status indicator, Reverse polarity protection |
| Application | Industrial Pneumatic Automation System |
