CRHD-32-PPV-A
Product Overview

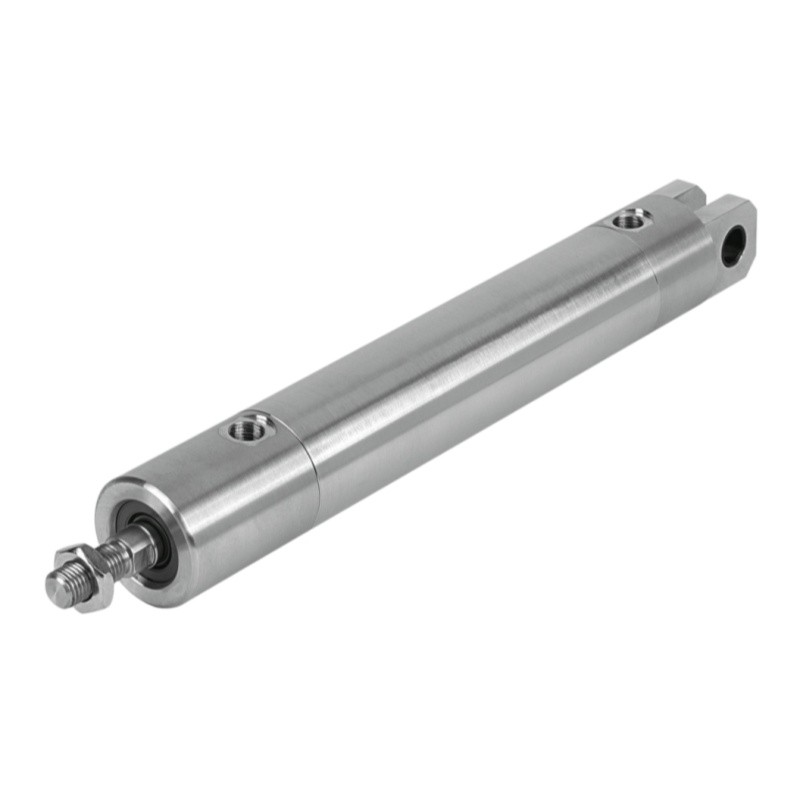

CRHD-32-PPV-A is a high-quality stainless steel round pneumatic cylinder from Festo CRHD series. This double-acting air cylinder features a 32mm bore and adopts PPV adjustable pneumatic cushioning at both ends, delivering stable and quiet reciprocating motion. Made of full high-alloy stainless steel, it owns outstanding corrosion resistance and CRC3 corrosion resistance grade, perfectly adapting to humid, dusty, water splash and harsh industrial environments. It supports proximity sensor position detection for automated stroke control, widely used in food processing, packaging machinery and special industrial pneumatic systems
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | CRHD-32-PPV-A |
| Product Type | Round Pneumatic Cylinder |
| Series | CRHD |
| Operation Mode | Double-acting |
| Piston Diameter | 32 mm |
| Cushioning | PPV, Pneumatic cushioning adjustable at both ends |
| Stroke Range | 10 ~ 500 mm |
| Operating Pressure | 0.1 ~ 1.0 MPa (1 ~10 bar) |
| Theoretical Force(6bar) | Advance:483 N, Return:415 N |
| Port Size | G1/8 |
| Housing Material | High-alloy Stainless Steel |
| Piston Rod Material | High-alloy Stainless Steel |
| Seal Material | NBR, TPE-U(PU) |
| Operating Temperature | -20 ~ 80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Corrosion Resistance Class | CRC 3 |
| Feature | Position detection for proximity sensor, high corrosion resistance |
| Application | Food machinery, packaging equipment, harsh environment automation |
| Certificate | RoHS Compliant |
