LOE-D-MINI

属性名	属性值
Brand	Festo
Model	LOE-D-MINI
Part No.	192575
Type	Lubricator, D-MINI air service unit
Size	MINI
Port size	G1/4
Nominal flow rate	1400 l/min
Oil filling capacity	25 cm³
Working medium	Compressed air ISO 8573-1:2010 [7:4:4]
Working pressure	0.5 ~ 16 bar
Temperature range	-10 ~ 60 ℃
Material	Housing: Zinc die casting, Bowl: Polycarbonate, Seal: NBR
Weight	170.00 g
Feature	Modular stacking for MINI service unit, visual oil level indicator, adjustable oil drip rate, semi-transpa

INQUIRY

Product Details

Product Tags

Product Overview

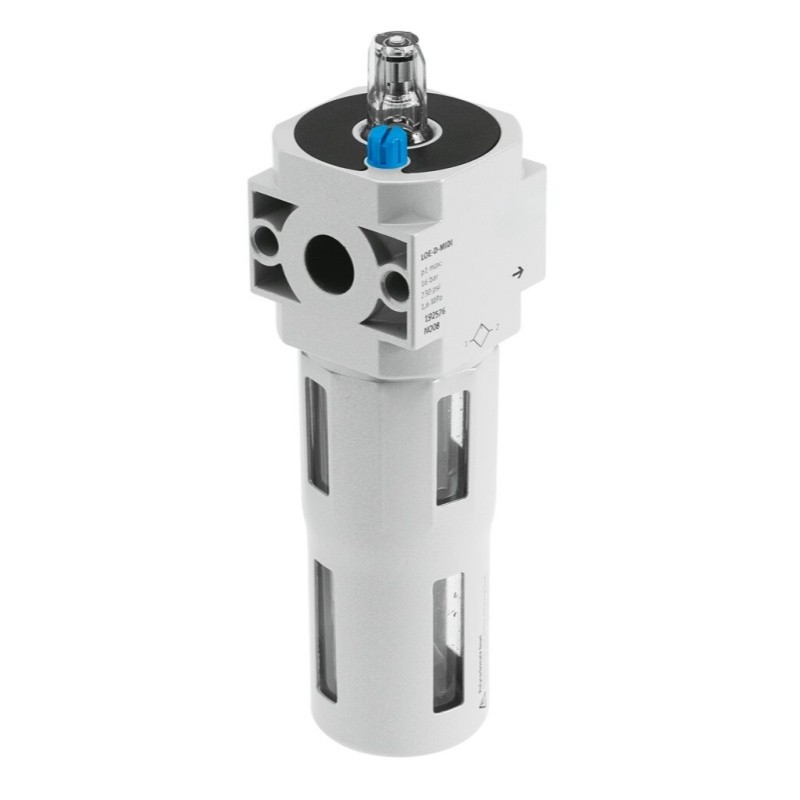

LOE-D-MINI, Part No.192575, belongs to Festo MINI series air preparation modular system. It is a pneumatic lubricator which mixes fine oil mist into compressed air to lubricate moving parts of downstream pneumatic cylinders and valves. Oil drip rate can be manually adjusted according to air consumption. Transparent oil bowl allows direct visual check of oil level. Modular stacking design, can be combined with filter, regulator and branch modules of MINI series to build complete air service unit. Widely used for pneumatic equipment requiring oil lubrication.

属性名	属性值
Brand	Festo
Model	LOE-D-MINI
Part No.	192575
Type	Lubricator, D-MINI air service unit
Size	MINI
Port size	G1/4
Nominal flow rate	1400 l/min
Oil filling capacity	25 cm³
Working medium	Compressed air ISO 8573-1:2010 [7:4:4]
Working pressure	0.5 ~ 16 bar
Temperature range	-10 ~ 60 ℃
Material	Housing: Zinc die casting, Bowl: Polycarbonate, Seal: NBR
Weight	170.00 g
Feature	Modular stacking for MINI service unit, visual oil level indicator, adjustable oil drip rate, semi-transparent oil bowl
Corrosion resistance class	CRC2
RoHS	Compliant
