VUVG-L14-T32C-MT-G18-1P3
Product Overview

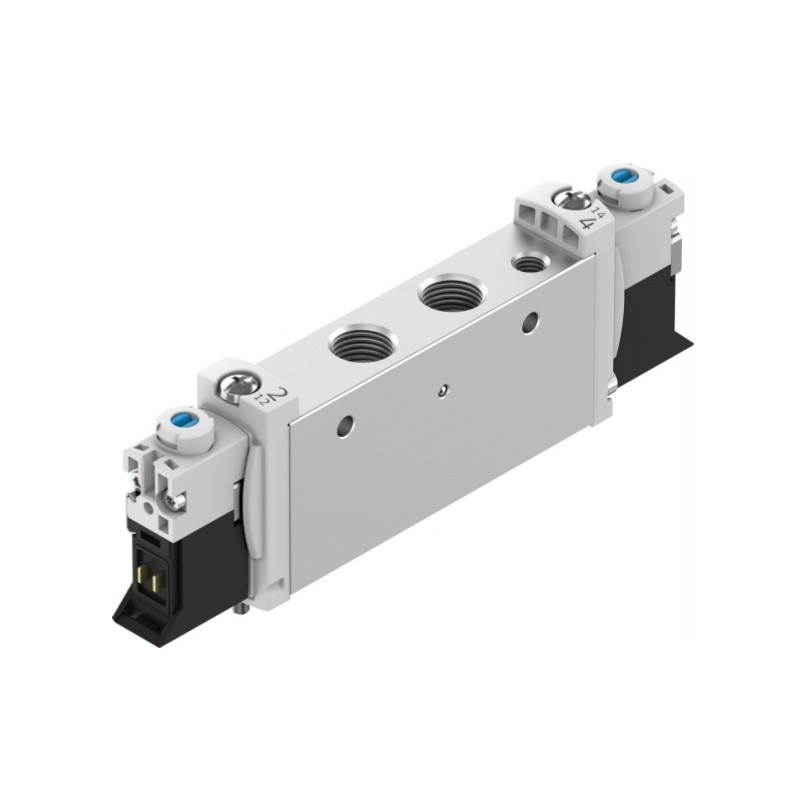

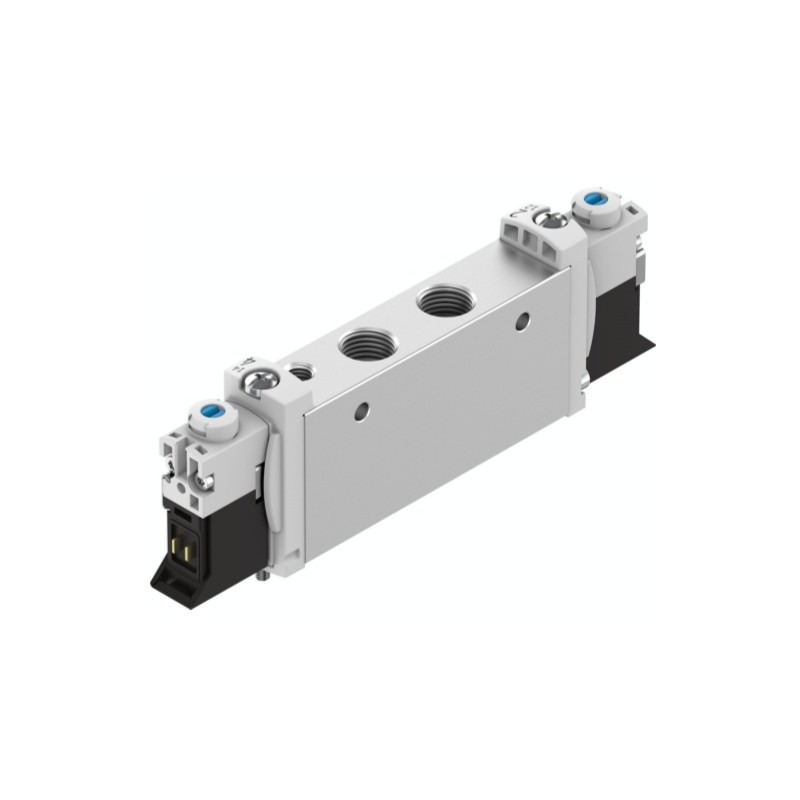

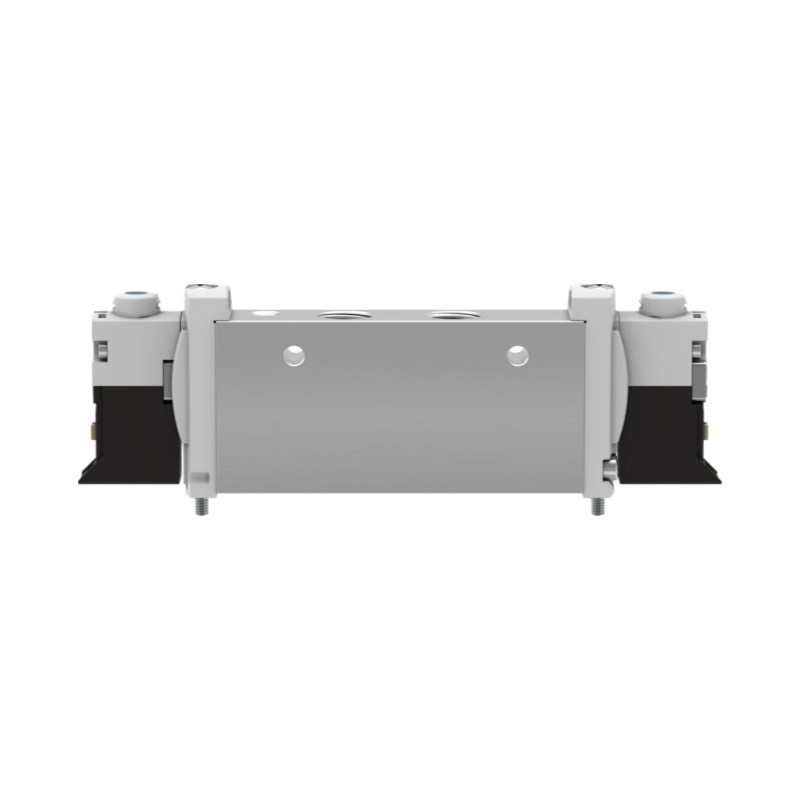

VUVG-L14-T32C-MT-G18-1P3 (Part No.574368) is Festo VUVG series stand-alone solenoid valve, valve function 2×3/2 closed monostable, 14mm size with G1/8 pneumatic working port, internal pilot air supply. Nominal flow 520~550 l/min, piston gate soft seal design, 100% continuous duty cycle. Equipped with covered detent manual override, IP65 protection after fitted with matching electrical socket. It can be mounted individually without valve manifold, directly control double-acting small/medium pneumatic cylinders.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VUVG-L14-T32C-MT-G18-1P3 |
| Part No. | 574368 |
| Product Type | Pneumatic Solenoid Valve / Stand-alone solenoid valve |
| Series | VUVG |
| Valve Function | 2×3/2 way, closed, monostable |
| Valve Size | 14 mm |
| Working Port | G1/8 |
| Supply Voltage | 24 V DC |
| Operating Pressure | 1.5 ~ 10 bar |
| Pilot Supply | Internal pilot |
| Pilot Pressure | 3.5 ~ 8 bar |
| Standard Nominal Flow | 520 ~ 550 l/min |
| Switch-on Time | 15 ms |
| Switch-off Time | 11 ms |
| Protection Class | IP40; IP65 with matching plug socket |
| Manual Override | Detent type, covered |
| Exhaust | With flow control option |
| Structure | Piston gate valve, soft seal |
| Duty Cycle | 100% continuous |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:4:4], inert gas |
| Ambient Temperature | -10 ~ +50 ℃ |
| Housing Material | High-performance plastic |
| Seal Material | NBR |
| CRC Corrosion Class | CRC2 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Net Weight | 0.072 kg |
| Gross Weight | 0.09 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Stand-alone pneumatic control, cylinder drive, automation assembly, handling & packaging machinery |
