QSL-1/8-6
Product Overview

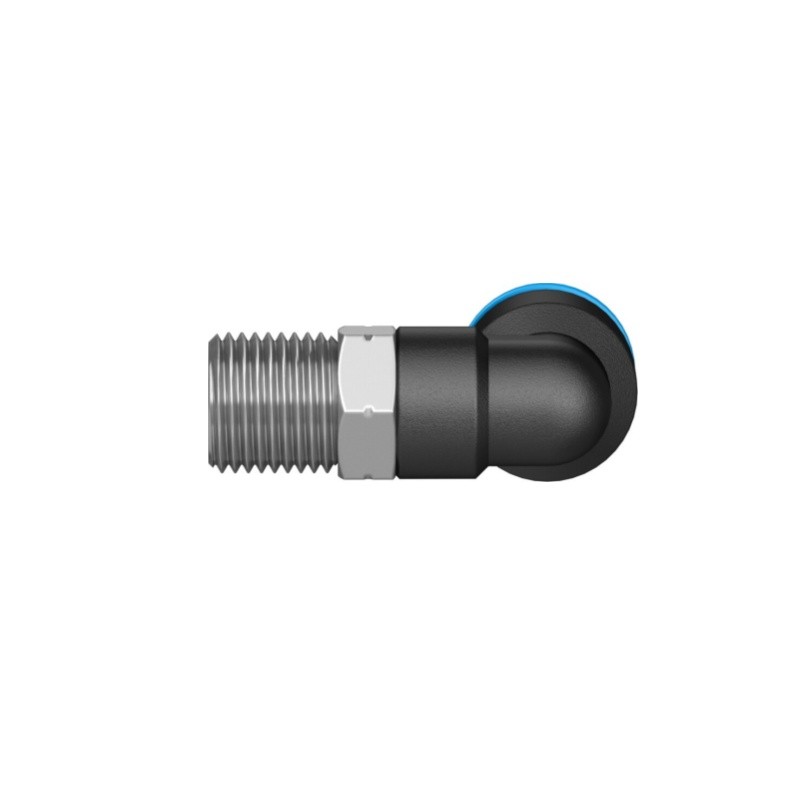

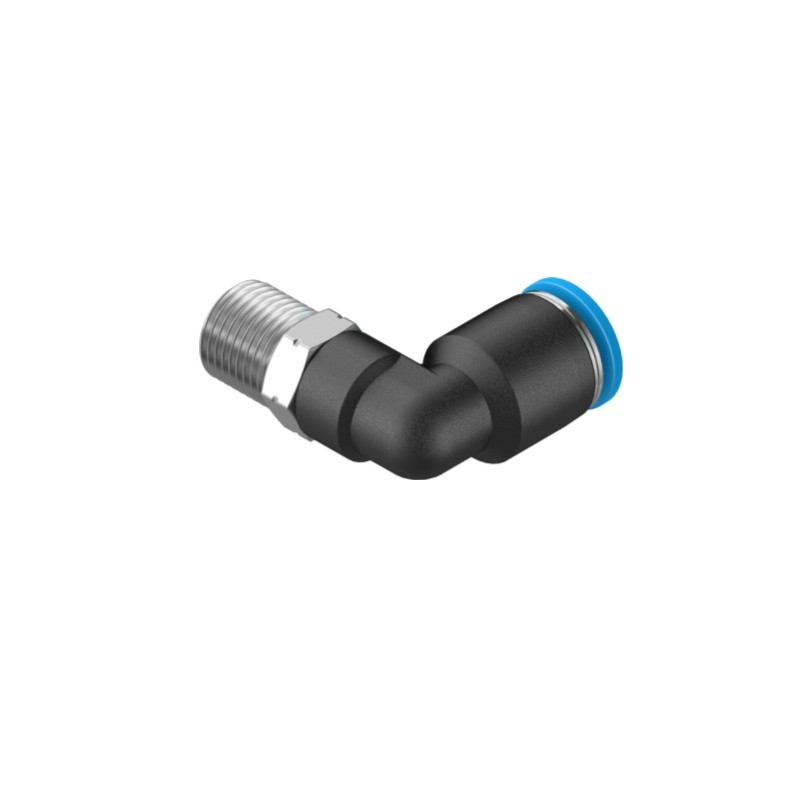

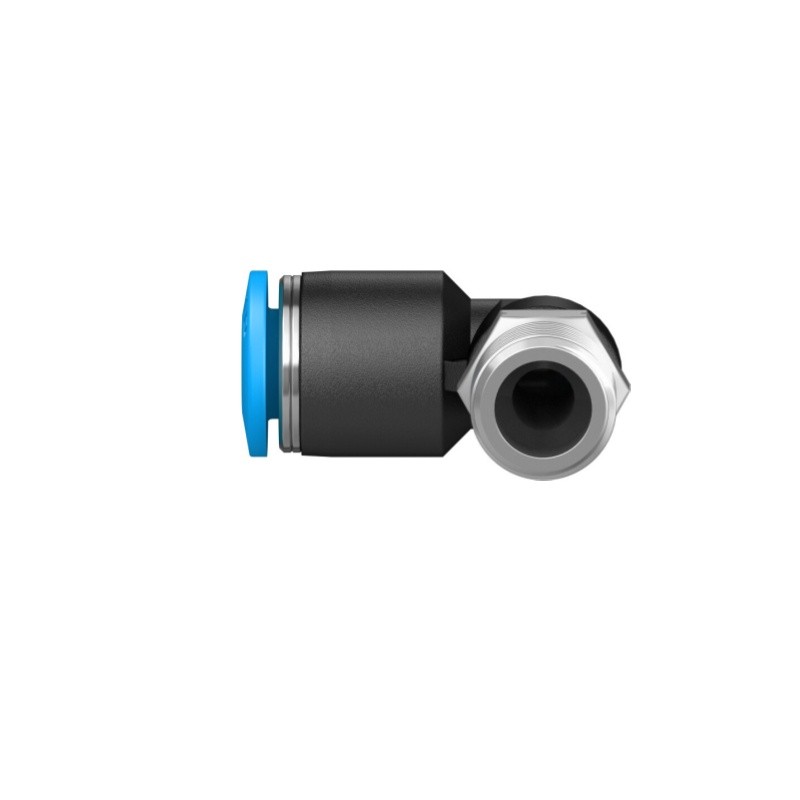

QSL-1/8-6 (Part No.153046) is Festo QSL series 90° L-shaped push-in elbow fitting. One end is R1/8 tapered male thread to screw onto valve/cylinder port; the other end is push-in port for OD6mm PU or PA pneumatic tube. Push-pull principle, insert tube directly for sealing, press blue release ring to detach tube quickly. Suitable for compressed air and vacuum circuits, ISO14644-1 Class4 cleanroom compatible.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSL-1/8-6 |
| Part No. | 153046 |
| Product Type | Pneumatic Push-in L Fitting / Elbow Connector |
| Series | QSL |
| Connection | R1/8 male thread, push-in for OD6 mm tubing |
| Nominal Diameter | 4.2 mm |
| Tube Material | PU / PA plastic tubing |
| Operating Pressure | -0.95 ~ 14 bar (temperature dependent) |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:-:-], inert gas |
| Ambient Temperature | -10 ~ +80 ℃ |
| Housing Material | PBT |
| Thread Insert | Nickel-plated brass |
| Release Ring Material | POM, blue |
| Seal Material | NBR |
| CRC Corrosion Class | CRC1 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Cleanroom Class | ISO14644-1 Class4 |
| Net Weight | 0.014 kg |
| Gross Weight | 0.02 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Pneumatic pipeline 90° transition, elbow connection for cylinder / valve port, automation pneumatic circuit |
