QST-12-8
Product Overview

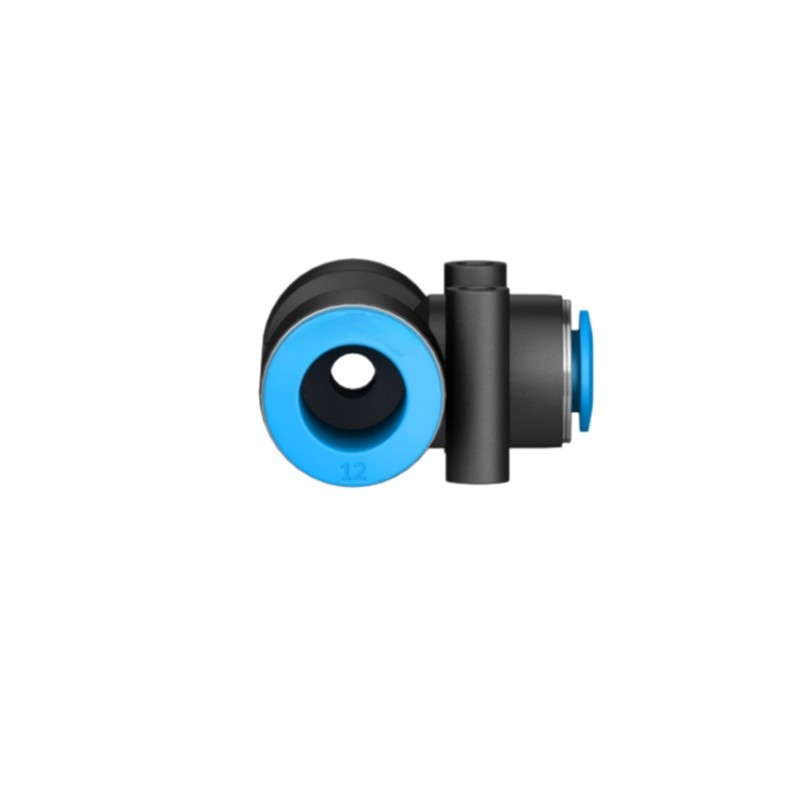

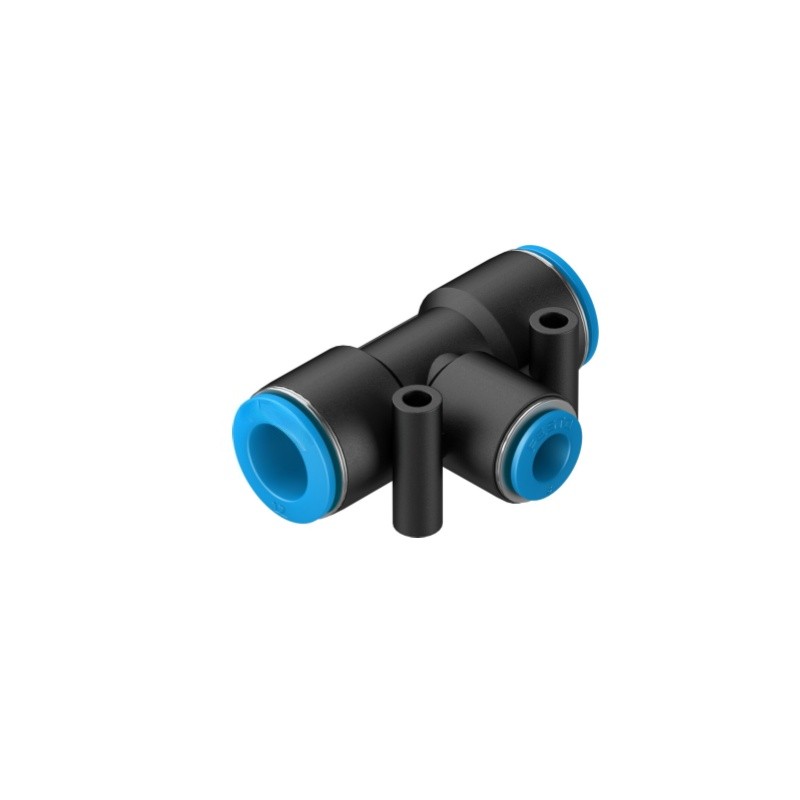

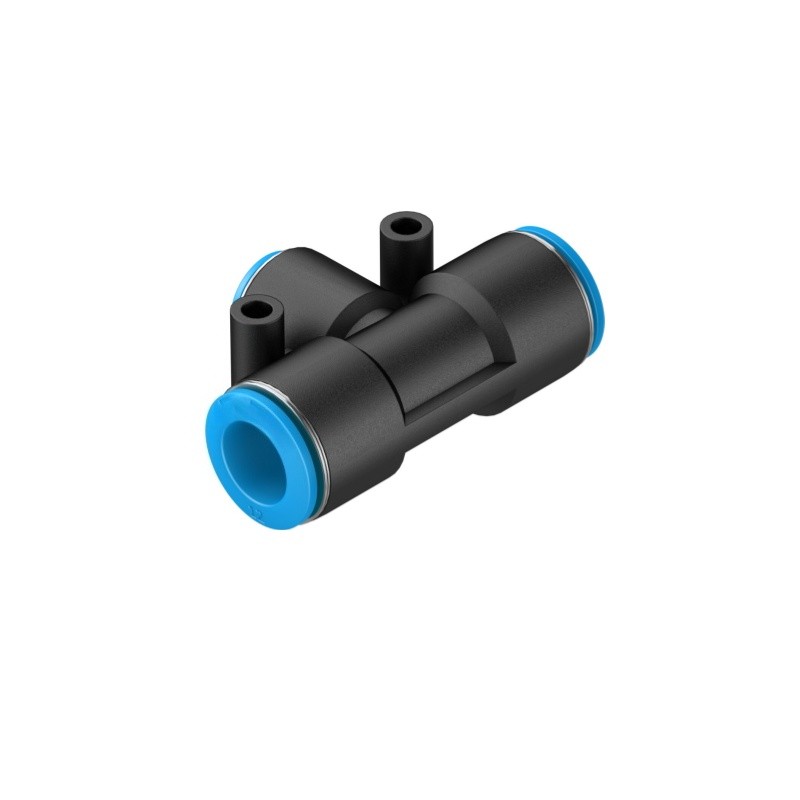

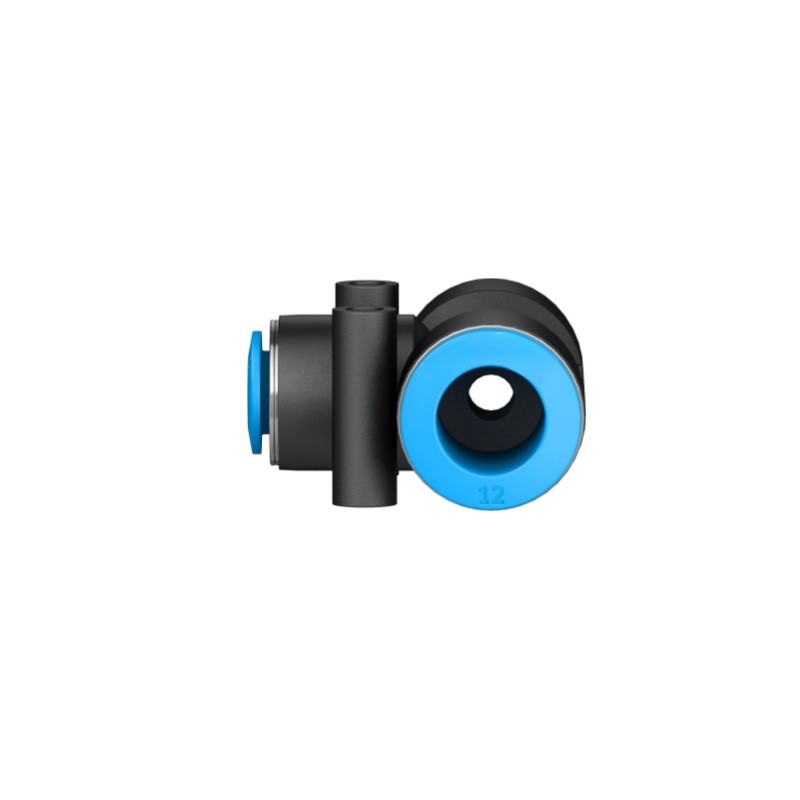

QST-12-8 (Part No.130618) is Festo QST series T-shaped reducing push-in fitting. Straight side connects OD12mm plastic tube, the branch port connects OD8mm plastic tube. Simply insert tubing to lock; press release ring to remove tube quickly. Works for compressed air and vacuum circuits, ISO14644-1 Class4 cleanroom compatible. Ideal for branching and reducing pneumatic pipeline in automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QST-12-8 |
| Part No. | 130618 |
| Product Type | Pneumatic Push-in Reducing T-fitting |
| Series | QST |
| Connection | Push-in, main run OD12 mm, branch OD8 mm |
| Tube Material | PU / PA plastic tubing |
| Operating Pressure | -0.95 ~ 10 bar |
| Operating Medium | Compressed air, vacuum, inert gas |
| Ambient Temperature | -20 ~ +80 ℃ |
| Housing Material | Polybutylene terephthalate PBT |
| Release Ring Material | POM |
| Seal Material | NBR |
| LABS Compliance | VDMA24364-B1/B2-L |
| Cleanroom Class | ISO14644-1 Class4 |
| Net Weight | 0.014 kg |
| Gross Weight | 0.02 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Pneumatic tubing branching, reducing T connection, automation pneumatic circuit |
