QSM-M5-6
Product Overview

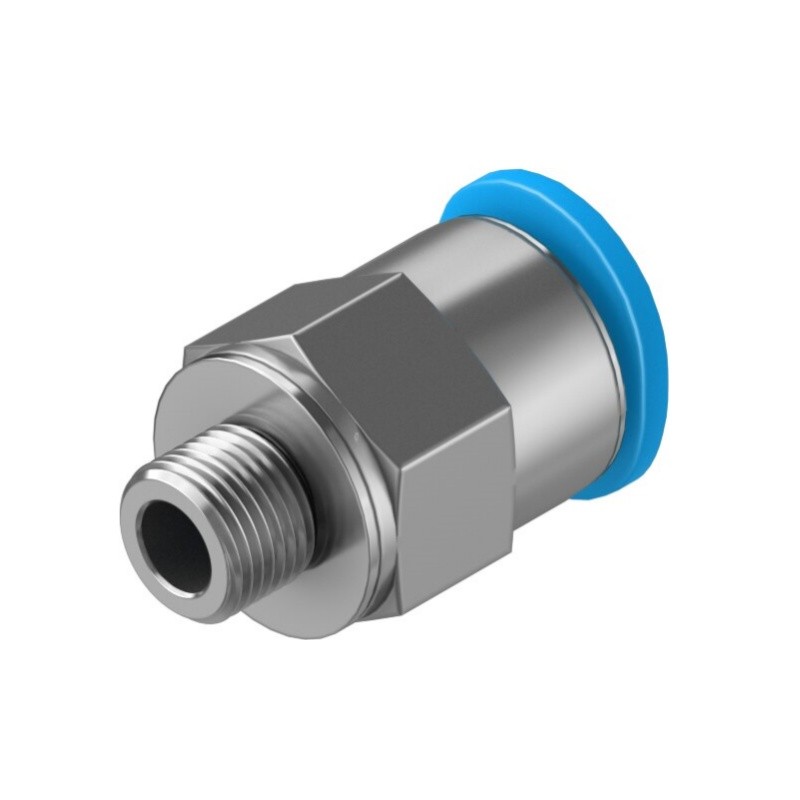

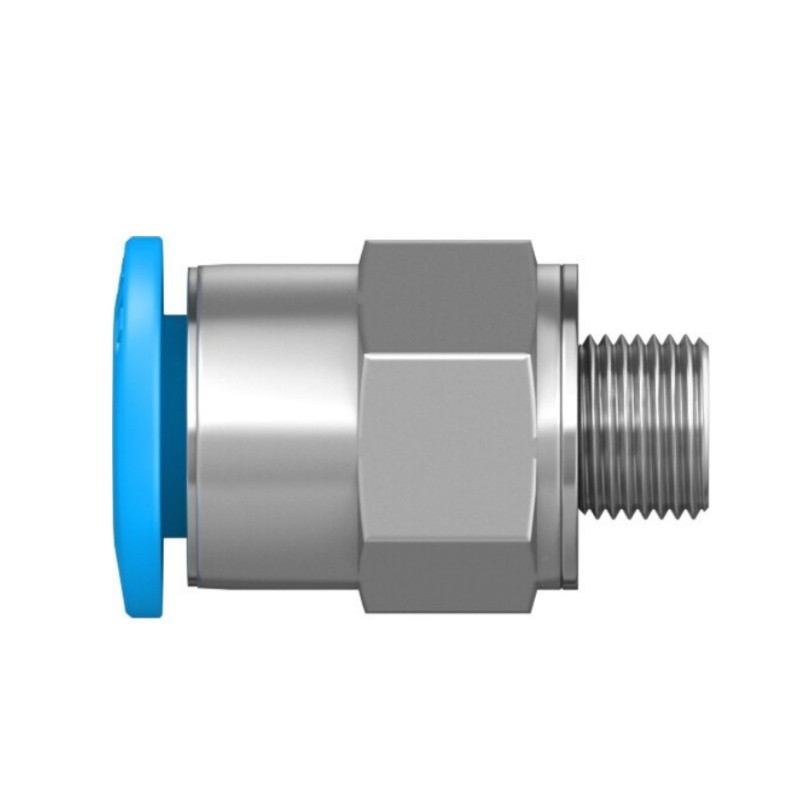

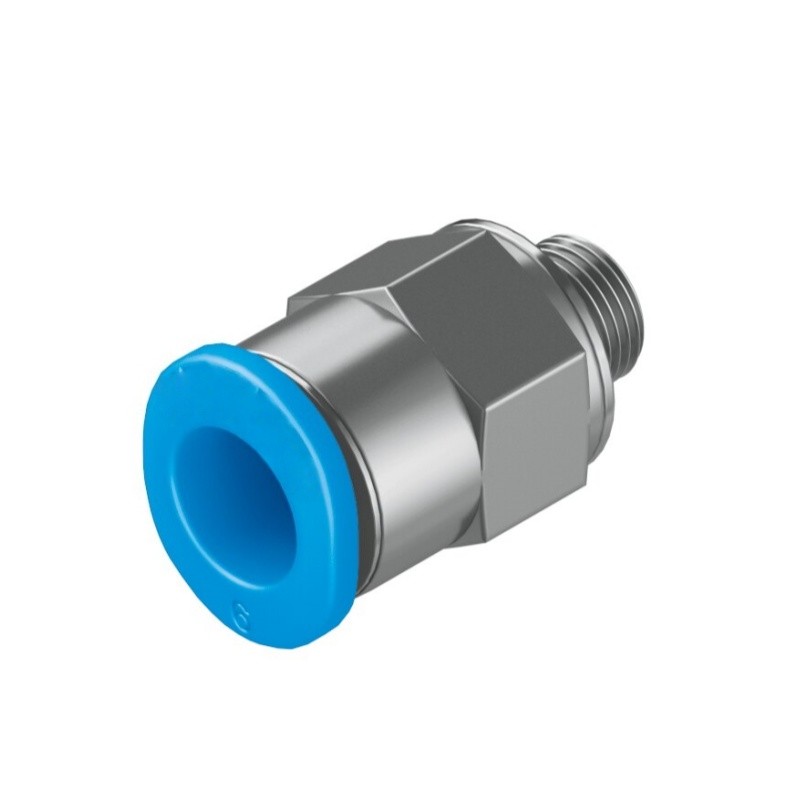

QSM-M5-6 (Part No.153306) is Festo QSM series compact mini straight push-in pneumatic fitting. It adopts push-pull quick connection principle, one end is M5 male thread, the other end is for 6mm outer diameter pneumatic tubing. Mini size design, easy to assemble and disassemble, widely used for compressed air pipeline connection in miniature pneumatic automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSM-M5-6 |
| Part No. | 153306 |
| Product Type | Pneumatic Mini Push-in Fitting / Straight fitting |
| Series | QSM |
| Port 1 | Male thread M5 |
| Port 2 | For tubing OD 6 mm |
| Nominal Width | 2.1 mm |
| Operating Pressure | -0.95 ~ 14 bar |
| Nominal Tightening Torque | 1.2 Nm (±20%) |
| Design | Straight type, push-pull principle |
| Mounting Position | Optional |
| Release Ring Color | Blue |
| Hex Size | SW10 |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:-:-], ice-free water |
| Ambient Temperature | -10 ~ +80 ℃ |
| Housing Material | Nickel-plated brass |
| Release Ring Material | POM |
| Tubing Seal Material | NBR |
| Clamping Element | High-alloy stainless steel |
| CRC Corrosion Class | CRC1 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Net Weight | 0.0045 kg |
| Gross Weight | 0.01 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Mini pneumatic circuit, small automation, pneumatic tubing connection |
